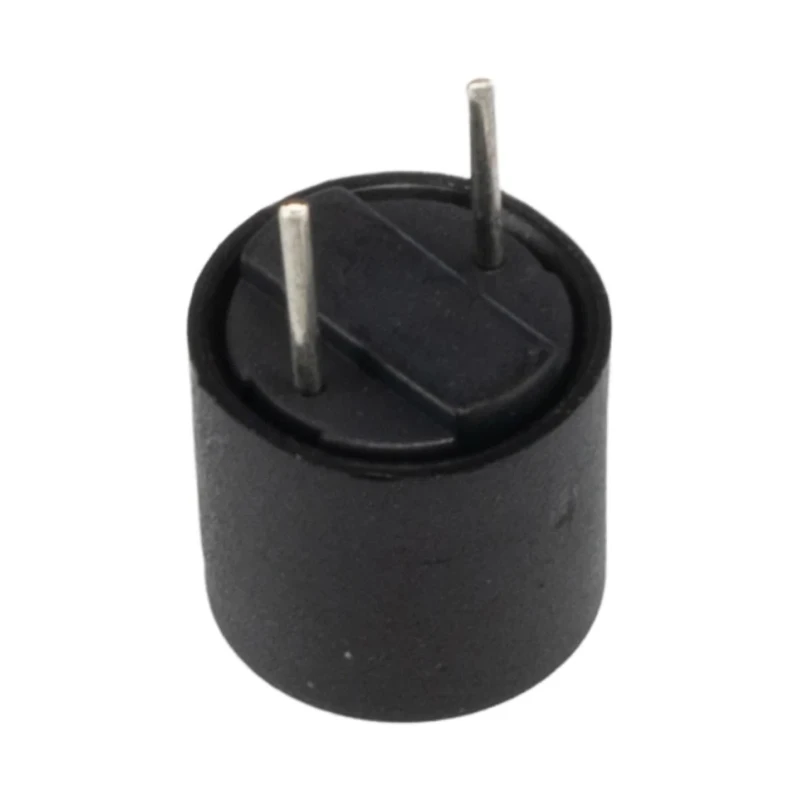

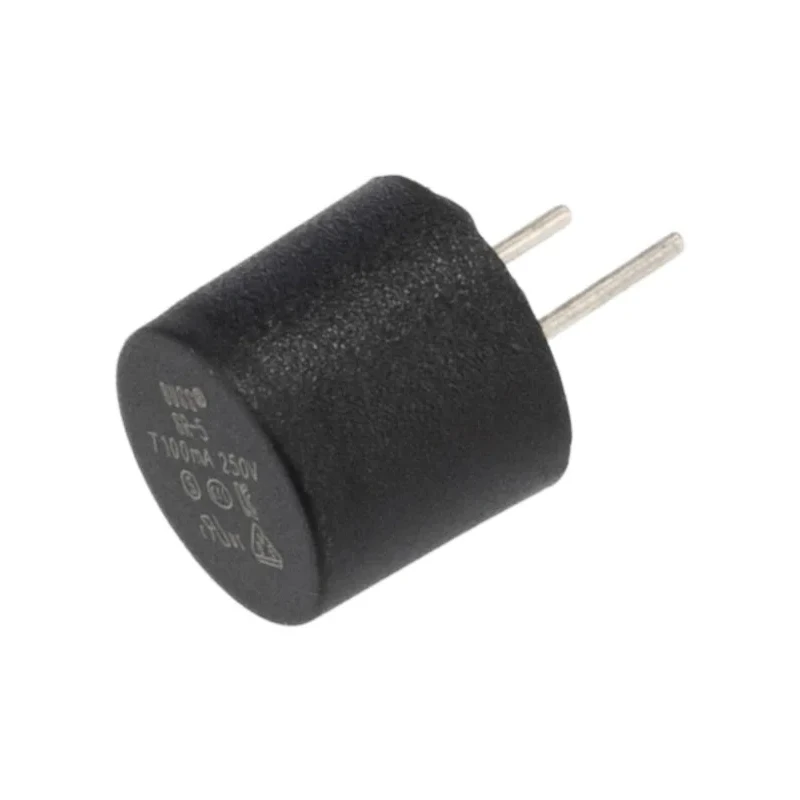

Eaton Electrical Fuse Radial Lead Time Delay 100mA, 250V AC, 35A Breaking Capacity SR-5-100MA-BK

Eaton SR-5-100MA-BK electrical fuse is a time delay, radial lead fuse designed for sensitive circuit protection in control and instrumentation applications. It is rated at 100mA current and 250V AC voltage, specifically crafted to tolerate transient inrush currents and protect against sustained faults.

This fuse features a 35A breaking capacity, enabling it to safely interrupt higher prospective fault currents without failure. Its time delay (T-speed slow-blow) characteristics ensure compatibility with devices that experience brief surges such as motors or capacitors.

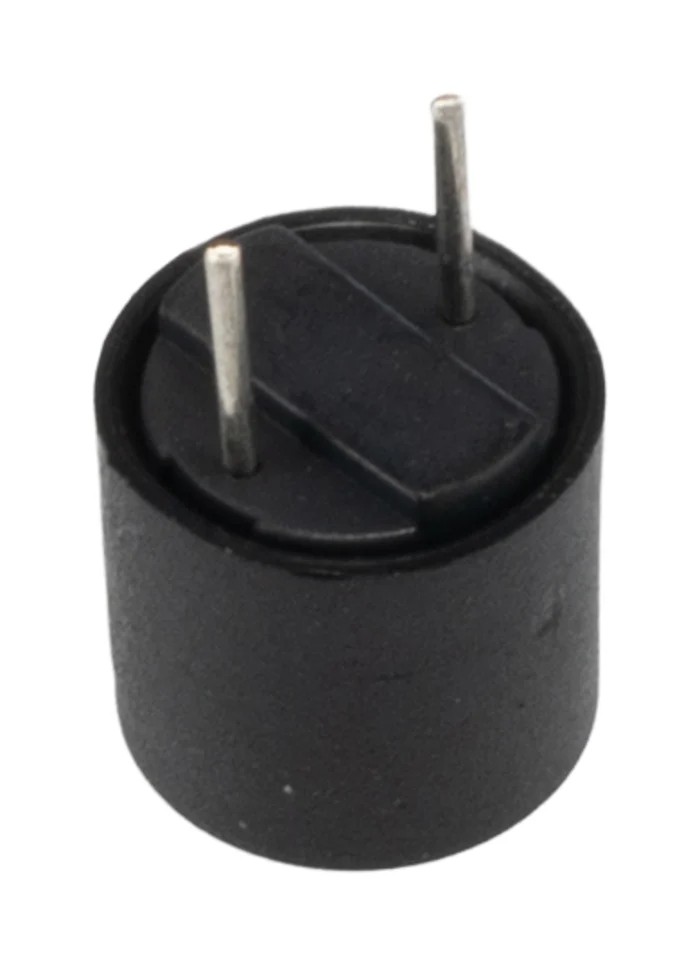

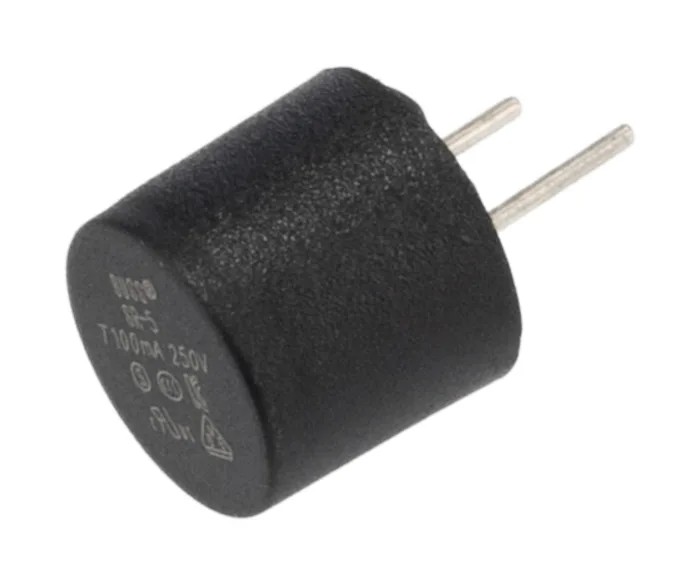

The radial leads have a diameter of 1mm and length of 4.3mm, facilitating straightforward through-hole mounting on PCBs, while the small physical form with an 8.5mm diameter and 7.37mm length ensures compact installation. Its temperature rating spans from -40°C minimum to +125°C maximum, making it suitable for use in elevated temperature environments and challenging industrial conditions.

Eaton SR5 Series fuses meet multiple international standards including RoHS compliance for restricted substances, VDE and PSE certifications, and IEC 60127-3, ensuring rigor in quality and environmental safety norms.

This fuse is typically used for safeguarding low-current mains-fed modules, instrumentation and sensory supply lines, as well as control circuits in automation panels, making it a reliable component for industrial, manufacturing, instrumentation, and electrical assembly applications.

Set includes 1 Eaton SR-5-100MA-BK fuse as a single protective component. Explore more products in the Circuit Breakers & Fuse category at EnvMart for comprehensive electrical protection solutions.

Time delay characteristic allows short inrush currents without nuisance operation. 250V AC voltage rating supports mains-voltage circuit applications. 35A breaking capacity ensures safe interruption of high fault currents.

Radial lead orientation with 1mm diameter leads facilitates through-hole PCB mounting. Operating temperature range from -40°C to +125°C allows thermal tolerance in various environments. Compliant with RoHS, IEC 60068-2-20, VDE, IEC 60127-3, and PSE standards.

Compact cartridge form factor with 8.5mm diameter and 7.37mm length fits compact PCB layouts. Ideal for protection of control and instrumentation circuits in automation and electrical panels.
