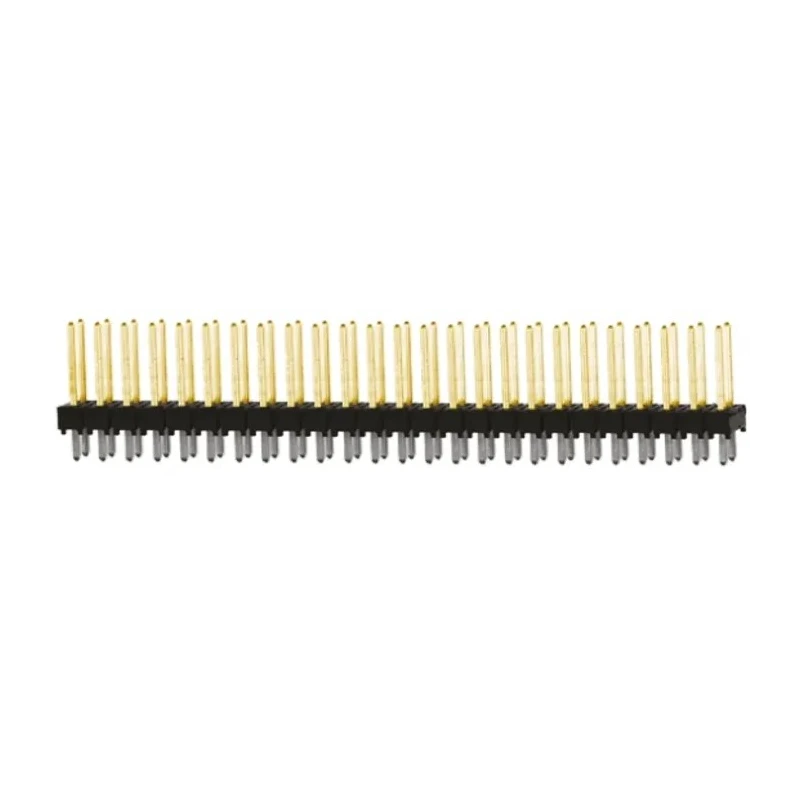

Samtec Pin Header 50 Contacts 2.54 mm Pitch 2 Row Unshrouded Through Hole TSW-125-14-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-125-14-L-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.79mm |
| Mating Pin Length | 8.13mm |
Key Features
- TSW series offers reliable board-to-board and wire-to-board connectivity.
- Features gold-plated phosphor bronze contacts for optimal conductivity.
- Black glass filled polyester housing ensures durability and high temperature resistance.
- Suitable for operating temperatures from -55°C to 125°C.
- Supports a maximum current of 7.6 A and voltage of 550 V.
- Tail pin length is 2.79 mm with a mating pin length of 8.13 mm.
- Standard 2.54 mm row and pitch for broad PCB compatibility.
- Male contact gender with through-hole mount type for secure soldering.
Product Description
Samtec TSW-125-14-L-D is a precision-engineered pin header designed for electronic connectivity applications requiring robust, reliable connections. This model features 50 male contacts arranged in 2 rows with a standard 2.54 mm pitch suitable for PCB through-hole mounting. The housing is a black glass filled polyester providing excellent insulation and mechanical strength, while the phosphor bronze contacts with gold plating deliver superior conductivity and corrosion resistance.
The TSW series supports both board-to-board and wire-to-board connector systems, making it versatile for a range of industrial electronics, telecommunications, and embedded system applications. Rated for operation in extreme temperatures from -55°C to 125°C, this pin header ensures stability in harsh environments.
Electrical specifications include a maximum current rating of 7.6 A and voltage rating of 550 V, suitable for medium-power electronic assemblies. The contact tailoring includes a tail pin length of 2.79 mm and mating pin length of 8.13 mm, aligning with industry standard connector types. The unshrouded, straight orientation design facilitates easy alignment and soldering with minimal risk of damage.
This pin header is ideal for manufacturing, industrial automation, instrumentation, and other electronics-heavy sectors requiring dependable interconnect solutions. It mates with standard Samtec socket strips ensuring seamless integration and enhanced electrical performance.
TSW series board-to-board, wire-to-board pin header connector. 50 gold-plated phosphor bronze contacts ensure signal integrity. Glass filled polyester housing for durability and insulation. Through-hole mounting with straight male contacts.
Operational temperature range from -55°C to 125°C for harsh environments. Voltage and current ratings up to 550 V and 7.6 A respectively. Compatible with multiple Samtec socket types for versatile use. Explore more industrial electronics connectors and components in our comprehensive EnvMart catalog.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating is 7.6 A and the maximum voltage rating is 550 V.
It operates within a temperature range of -55°C to 125°C.
This pin header features a pitch of 2.54 mm and has 50 contacts arranged in 2 rows.
The contacts are made of phosphor bronze with gold plating, while the housing is constructed from glass filled polyester.
It supports through-hole mounting for secure soldering.
The tail pin length is 2.79 mm and the mating pin length is 8.13 mm.
It is compatible with both board-to-board and wire-to-board connector systems.
This model has a straight orientation.
This pin header is unshrouded, allowing for easy alignment during soldering.
The country of origin for this pin header is India.
It uses solder termination type for connections.
This pin header is suitable for applications in industrial electronics, telecommunications, and embedded systems.
