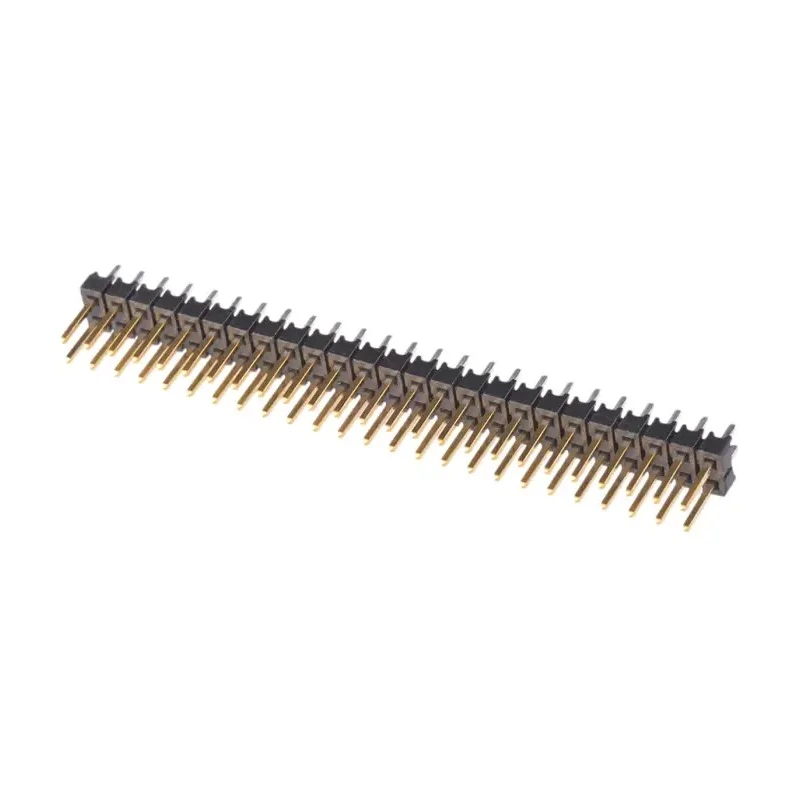

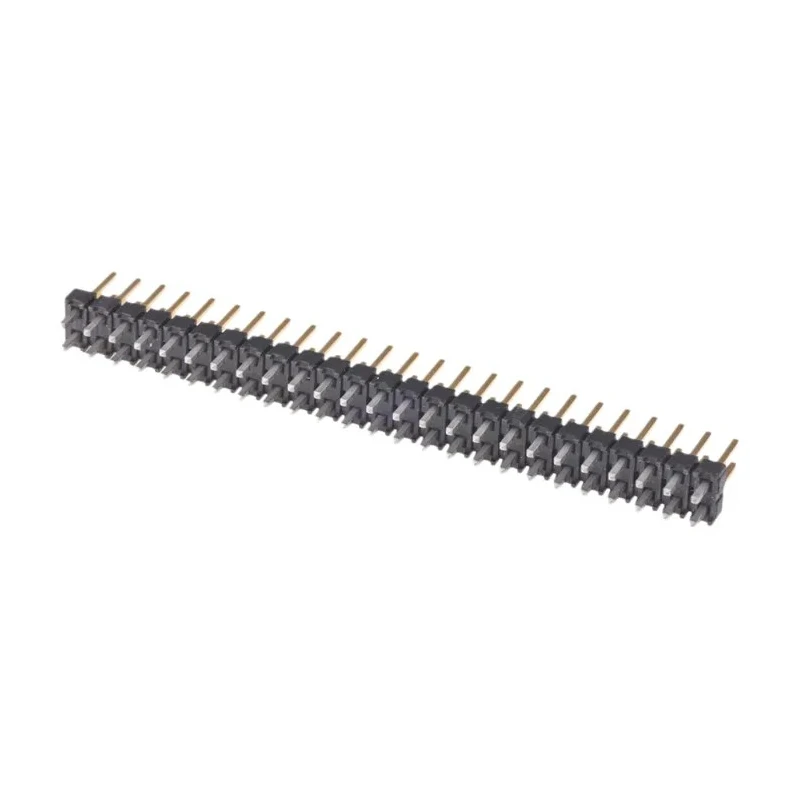

Samtec TSW Series Straight Through Hole Pin Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-125-07-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-125-07-L-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.54mm |
| Mating Pin Length | 5.84mm |
Key Features
- Features a straight orientation with unshrouded two-row pin configuration.
- Constructed with a glass filled polyester housing for enhanced durability.
- Phosphor bronze contacts plated with gold ensure reliable conductivity.
- Suitable for board-to-board and wire-to-board connector systems.
- Operates efficiently between -55°C and 125°C temperature range.
- The tail pin length is 2.54 mm and mating pin length is 5.84 mm for secure solder termination.
- Designed for through hole mounting ensuring robust mechanical and electrical connection.
- Ideal for industrial electronic applications requiring high-performance connectors.
Product Description
Samtec TSW-125-07-L-D is a high-quality PCB pin header from the TSW series, featuring 50 gold-plated phosphor bronze contacts arranged in two straight rows at a 2.54 mm pitch. This through hole pin header uses a robust glass filled polyester housing for enhanced mechanical stability and chemical resistance.
This unshrouded connector is designed for both board-to-board and wire-to-board applications, providing excellent electrical connectivity for a wide range of industrial, electronics manufacturing, and telecommunications equipment. Operating temperature ranges from -55°C to 125°C, allowing use in diverse environmental conditions.
The connector supports a voltage rating of 550 V and a current rating of 7.6 A, ensuring reliable performance in power and signal distribution circuits. Tail pins measuring 2.54 mm in length are optimized for solder termination on printed circuit boards, while mating pins of 5.84 mm ensure strong and secure contacts.
These TSW series headers come with various options for terminal height and plating, making them adaptable to specific design requirements. The unshrouded design enables easy access and soldering operations, suited for manual or automated assembly processes.
Straight orientation with 2 rows and 50 contacts. Gold-plated phosphor bronze contacts for longevity and conductivity. Glass filled polyester housing providing durability and heat resistance. Wide operating temperature range from -55°C to 125°C.
Voltage up to 550 V and current up to 7.6 A rating. Termination by solder with 2.54 mm tail pin length. Suitable for board-to-board and wire-to-board connector systems. Through hole mounting type for robust PCB connection.
This pin header is ideal for use in industrial electronics, communication systems, computer hardware manufacturing, and other applications requiring reliable electrical interconnects. It complies with high-quality manufacturing standards to deliver consistent performance and durability. Explore more PCB Headers and connectors in the Electronics Components category at EnvMart for comprehensive solutions tailored to your needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this pin header is 550 V.
This model has a current rating of 7.6 A.
It operates efficiently between -55°C and 125°C.
This pin header features 50 contacts arranged in two rows.
It uses through hole mounting for robust PCB connections.
The contacts are made of phosphor bronze and are gold-plated, while the housing is constructed from glass filled polyester.
The pitch size of the contacts is 2.54 mm.
The tail pin length is 2.54 mm, optimized for solder termination.
The mating pin length is 5.84 mm.
It supports both board-to-board and wire-to-board connector systems.
This model is unshrouded, allowing for easy access and soldering operations.
The country of origin for this pin header is India.
