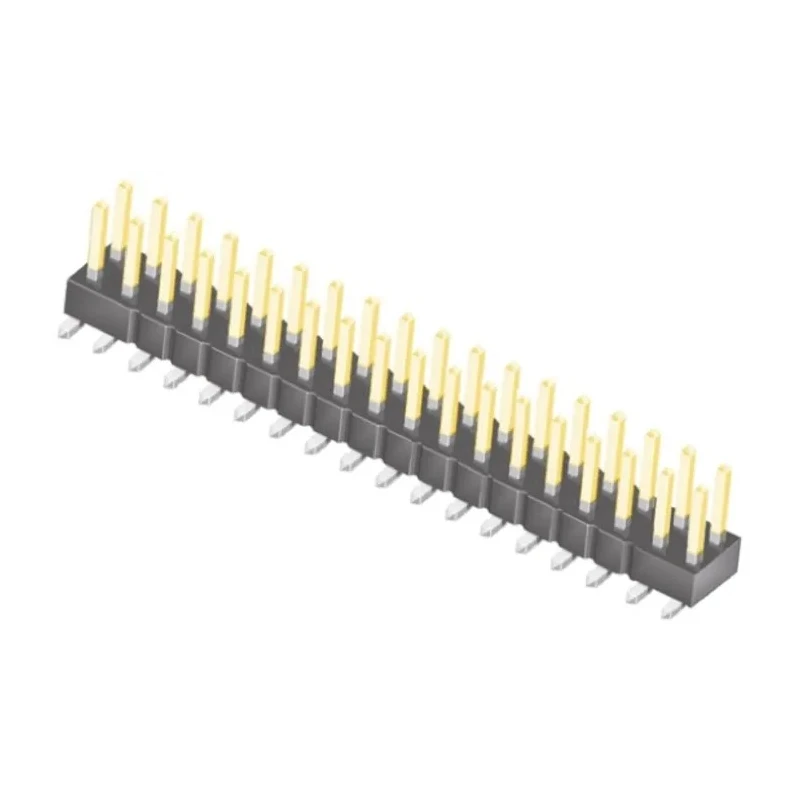

Samtec TSM Series Straight Surface Pin Header 36 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-118-02-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7A |
| Model | TSM-118-02-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 8.13mm |
Key Features
- This header features a straight orientation for surface mount technology applications.
- Contacts are made of phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
- Housing is constructed from durable liquid crystal polymer to withstand operating temperatures from -55°C to 125°C.
- Designed for currents up to 7 A and voltages up to 475 V for robust electrical performance.
- The mating pin length is 8.13 mm, compatible with related Samtec socket strips.
- Suitable for industrial, electronic manufacturing, and PCB assembly applications.
- Its unshrouded design allows easy mating and inspection of connections.
- Ideal for high-reliability electronic components and communications equipment.
Product Description
Samtec TSM-118-02-L-DV is a Straight Surface Pin Header from the TSM Series, designed for high-performance PCB connectivity. This model features 36 male contacts arranged in 2 rows, spaced at a 2.54 mm pitch, making it suitable for board-to-board and wire-to-board electrical connections.
Constructed with a housing made of liquid crystal polymer, this header withstands harsh industrial conditions with an operating temperature range from -55°C to 125°C. The phosphor bronze contacts are plated with 0.25 μm gold on the post and matte tin on the tail, ensuring robust conductivity and resistance to corrosion.
The 8.13 mm mating pin length enhances compatibility with Samtec's surface mount socket strips, providing secure, reliable connections for various electronic assemblies.
This unshrouded, straight orientation header facilitates easy inspection and soldering for surface mount technology (SMT) applications. It supports currents up to 7 A and voltages up to 475 V, making it ideal for electronic manufacturing, industrial equipment, communications devices, and other high-reliability use cases.
The TSM Series offers configurations including single and double row, straight and right-angle options, and various post lengths for versatile design needs. This header features a straight orientation for SMT applications, enabling compact board layouts.
Gold-plated phosphor bronze contacts provide excellent electrical performance and durability. Liquid crystal polymer housing ensures mechanical stability and thermal resistance. Supports a current rating of 7 A and voltage rating of 475 V for demanding applications.
Unshrouded design allows easy access and inspection of connections. Compatible with Samtec socket strips with mating pin length of 8.13 mm. Operates reliably between -55°C and 125°C temperature range. Used widely in electronic components manufacturing and industrial equipment.
Choose the Samtec TSM-118-02-L-DV for dependable and versatile PCB connectivity solutions. Explore more connectors and PCB headers on EnvMart to enhance your electronic designs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 7 A.
It has a voltage rating of 475 V, suitable for various applications requiring robust electrical performance.
The header features a pitch of 2.54 mm and includes 36 male contacts arranged in 2 rows.
The housing is made from liquid crystal polymer, and the contacts are made of phosphor bronze with gold plating.
It operates reliably within a temperature range of -55°C to 125°C.
The termination type for this header is solder, suitable for surface mount applications.
The mating pin length is 8.13 mm, making it compatible with related Samtec socket strips.
This model features a straight orientation, designed for surface mount technology applications.
It supports board-to-board and wire-to-board connector systems, enhancing its versatility in applications.
This header is unshrouded, allowing for easy mating and inspection of connections.
It is suitable for industrial, electronic manufacturing, and PCB assembly applications, particularly in high-reliability contexts.
The country of origin for this pin header is India.
