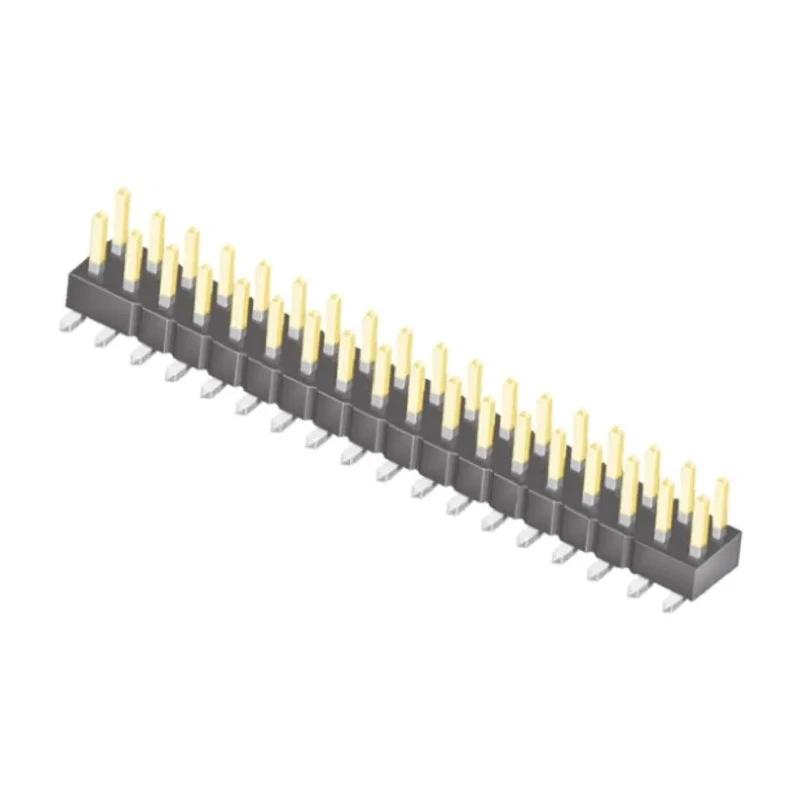

Samtec TSM Series Straight Surface Mount Unshrouded Pin Header, 36 Contacts, 2.54 mm Pitch, 2 Row, 7A, 475V TSM-118-01-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7A |
| Model | TSM-118-01-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.84mm |
Key Features
- Two rows of unshrouded male pins designed for board-to-board and wire-to-board connections.
- Manufactured using liquid crystal polymer housing for high durability and performance.
- Contact material is phosphor bronze with 0.25μm gold plating on posts for optimal conductivity.
- Rated for 7A current and a voltage of up to 475V, supporting strong electrical performance.
- Operates reliably between -55°C and 125°C, suitable for harsh environments.
- Mount type is surface-mount technology (SMT) with solder termination for secure placement.
- Mating pin length measures 5.84 mm for stable and secure connections.
- Ideal for use in industrial electronics, PCB assemblies, and power distribution applications.
Product Description
Samtec TSM-118-01-L-DV is a high-quality SMT straight surface mount pin header featuring 36 male contacts arranged in 2 rows with a 2.54 mm pitch, designed specifically for board-to-board and wire-to-board connector systems.
Constructed with a durable liquid crystal polymer housing and phosphor bronze contacts plated with 0.25μm gold on the post and matte tin on the tail, this header ensures excellent electrical performance and resistance to wear and corrosion.
The pin header supports a current rating of 7 amperes and a voltage rating of 475 volts, making it suitable for demanding electrical circuits and industrial applications. The product maintains reliable mechanical and electrical connections in operating temperature ranges from -55°C to 125°C, adaptable to harsh environmental conditions.
Surface mount technology (SMT) termination type allows for easy soldering on PCB surfaces, optimizing assembly processes. The mating pin length of 5.84 mm provides secure engagement with compatible sockets or connectors, ensuring signal integrity.
This Samtec TSM series pin header is particularly useful in electronics manufacturing, industrial automation, power distribution units, and custom PCB assemblies requiring robust and reliable connector solutions.
Two rows of unshrouded male pins designed for board-to-board and wire-to-board connections. Manufactured using liquid crystal polymer housing for high durability and performance. Contact material is phosphor bronze with 0.25μm gold plating on posts for optimal conductivity.
Rated for 7A current and a voltage of up to 475V, supporting strong electrical performance. Operates reliably between -55°C and 125°C, suitable for harsh environments. Mount type is surface-mount technology (SMT) with solder termination for secure placement.
Mating pin length measures 5.84 mm for stable and secure connections. Ideal for use in industrial electronics, PCB assemblies, and power distribution applications. Explore our extensive range of PCB Headers and connectors at EnvMart for all your electronics and industrial requirements.
