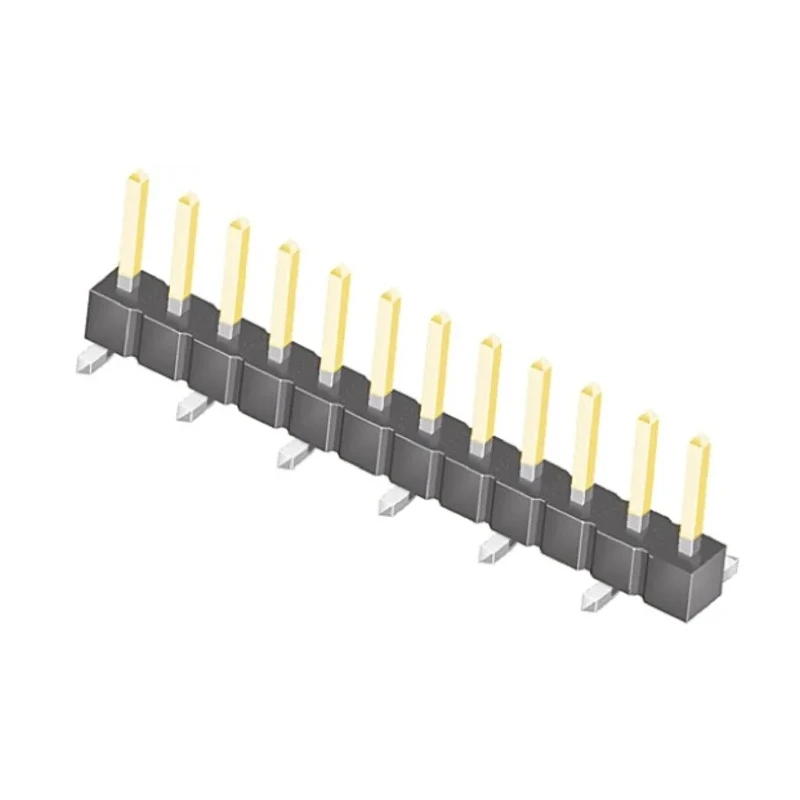

Samtec TSM Series Straight Surface Pin Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TSM-112-02-L-SV

Samtec TSM-112-02-L-SV is a high-quality Straight Surface Pin Header designed for advanced PCB applications offering 12 male contacts in a single-row arrangement with a precise 2.54 mm pitch.

The header utilizes a black liquid crystal polymer housing, providing exceptional mechanical strength, heat resistance, and longevity within electronic assemblies. Phosphor bronze contacts plated with 0.25 microns of gold ensure excellent electrical conductivity and corrosion resistance, crucial for maintaining reliable signal and power transmission.

Designed for surface mount technology (SMT) with solder termination, the TSM series headers simplify PCB assembly and provide a stable mechanical and electrical connection. The unshrouded, straight orientation facilitates versatile board-to-board and wire-to-board connections applicable in power connectors, industrial electronics, and communication systems.

With an operating temperature range from -55°C to 125°C, this pin header suits robust industrial, manufacturing, and HVAC equipment environments that demand stable performance under variable thermal conditions. It supports a rated current of 7A and voltage up to 475V, making it fit for electronic power and control circuits.

The mating pin length of 8.13 mm ensures secure engagement with mating connectors like SSM surface mount socket strips, enhancing signal integrity and mechanical durability. Phosphor bronze contacts plated with 0.25μm gold ensure excellent conductivity.

Black liquid crystal polymer housing offers high durability and temperature resistance. Single row, 12 contacts with 2.54 mm pitch for precise PCB integration. Surface mount solder termination suitable for automated assembly processes.

Unshrouded straight orientation for versatile board-to-board and wire-to-board connection. Operating temperature range -55°C to 125°C supports industrial conditions. Rated current 7A and voltage 475V for reliable electrical performance.

Compatible with mating socket strips (e.g., SSM series).

This pin header is ideal for electronic manufacturing, industrial production equipment, power supply distribution, and commercial PCB designs. Its construction allows use in demanding environments requiring robust connectors.
