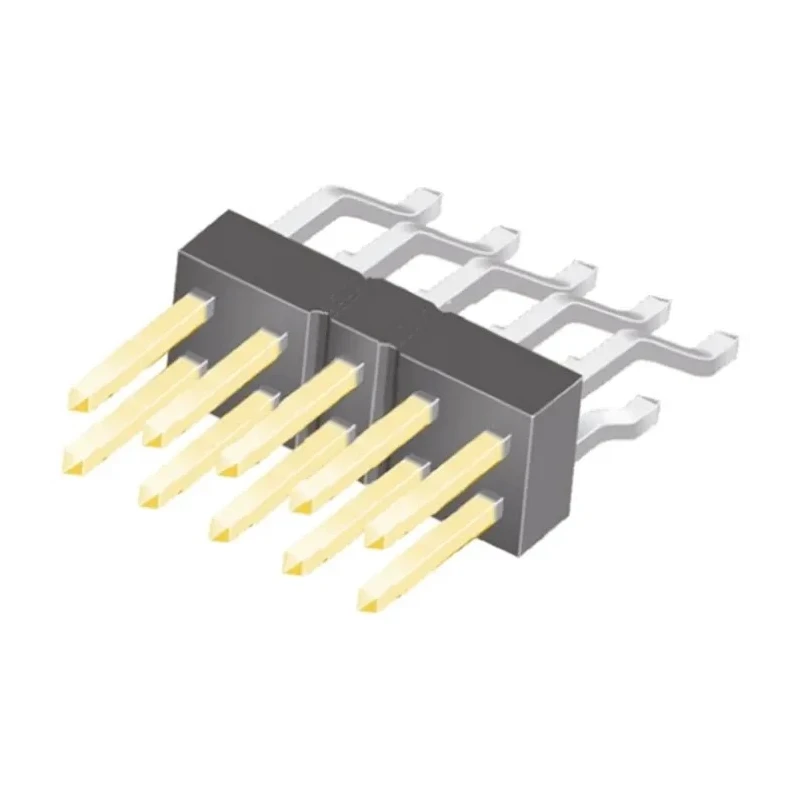

Samtec TSM Series Right Angle Surface Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSM-105-02-L-DH

Free Delivery in India | Lowest Global Shipping Charges

Samtec TSM Series Right Angle Surface Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSM-105-02-L-DH

Name: Samtec TSM Series Right Angle Surface Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSM-105-02-L-DH
Brand: Samtec
SKU: 130405
Price: 1.64 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	475V
Brand	Samtec
Orientation	Right Angle
Current	7A
Model	TSM-105-02-L-DH
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	TSM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Mating Pin Length	8.13mm

Key Features

Features two rows of male contacts for secure electrical performance.
Utilizes phosphor bronze contacts plated with gold for corrosion resistance.
Housing made of durable liquid crystal polymer to withstand high temperatures.
Operates safely within a temperature range of -55°C to 125°C.
Designed for surface mount technology with right angle orientation.
Supports a maximum voltage of 475V and current rating of 7A.
Mating pin length measures 8.13 mm to ensure proper engagement.
Unshrouded design facilitates easy soldering and inspection.

Product Description

Samtec TSM-105-02-L-DH right angle surface pin header offers a high quality electrical connector solution with 10 male contacts arranged in two rows at a 2.54 mm pitch. The connector is unshrouded and designed for surface mounting on printed circuit boards, delivering reliable board-to-board and wire-to-board connections.

The housing is constructed from liquid crystal polymer, a material known for its excellent thermal resistance and mechanical durability. Contacts are made from phosphor bronze and plated with 0.25 μm gold on the post and matte tin on the tail for superior conductivity and corrosion resistance. This pin header features a mating pin length of 8.13 mm and supports an operating temperature range from -55°C to 125°C, ensuring durability in harsh environments.

With a current rating of 7A and a voltage rating of 475V, the TSM Series connector reliably performs in demanding industrial applications. Its right angle orientation and surface mount design facilitate compact PCB layouts. The unshrouded style allows straightforward soldering and inspection during assembly processes.

This Samtec TSM model is widely used in electronics manufacturing, including industrial controls, telecommunications, and automation equipment requiring secure and reliable interconnections.

Features two rows of male contacts plated with gold for corrosion resistance. Housing ensures high temperature resistance and durability. Designed specifically for surface mount technology on PCBs. Rated for 7 amps and up to 475 volts.

Operates within a wide temperature range of -55°C to 125°C. Offers rugged construction suitable for industrial environments. Unshrouded design allows for efficient soldering and inspection. Mating pin length of 8.13 mm ensures reliable connections.

Set includes one Samtec TSM Series right angle surface pin header with 10 contacts. This product is new and originates from India. For further products in the PCB Headers category, explore EnvMart’s comprehensive electronics components range.
