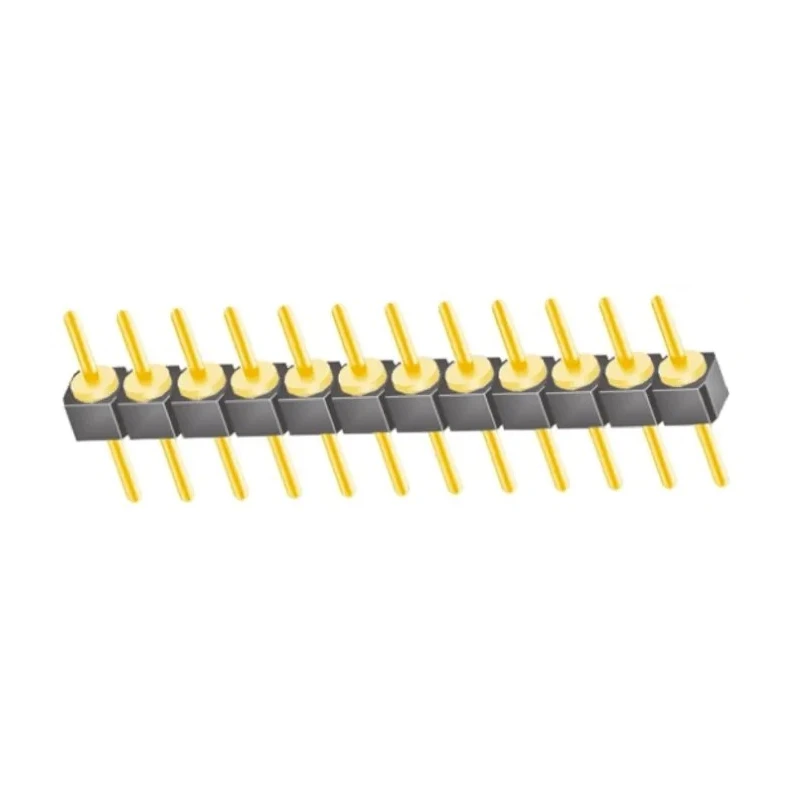

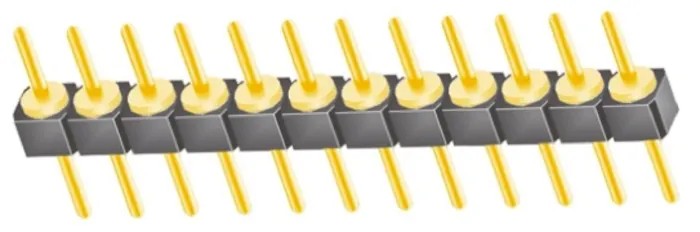

Samtec TS Series Straight Through Hole Pin Header 12 Contacts 2.54 mm Pitch 1 Row Unshrouded TS-112-G-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | TS-112-G-A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.96mm |
| Mating Pin Length | 4.22mm |
Key Features
- Features 12 male contacts with a single row configuration.
- Contact pitch is precisely 2.54 millimeters for standard PCB compatibility.
- Constructed with glass filled polyester housing for durability and heat resistance.
- Contacts made from phosphor bronze with 0.51 µm gold plating for corrosion resistance and conductivity.
- Designed for through-hole mounting with solder termination type.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Tail pin length is 3.96 mm, mating pin length is 4.22 mm for secure connections.
- Unshrouded design for easy access and visual inspection of contacts.
Product Description
Samtec TS Series Straight Through Hole Pin Header TS-112-G-A provides a robust and precise board-to-board connector solution with a pitch of 2.54 mm and a single row of 12 male contacts. Its housing is made from glass filled polyester, offering high mechanical strength and excellent thermal resistance, suitable for harsh industrial environments.
The contacts are manufactured from phosphor bronze with a 0.51 micrometer gold plating, enhancing conductivity and corrosion resistance, ensuring reliable electrical connections over the product's operating life. With a current rating of 1 ampere, this connector is designed for low-power applications requiring secure and durable connections.
The header features a tail pin length of 3.96 mm and mating pin length of 4.22 mm to guarantee proper fit and solder joint integrity on printed circuit boards. The connector is unshrouded, facilitating easy visual inspection and troubleshooting during assembly and maintenance.
Operating temperature range from -55°C to 125°C makes this component suitable for a wide array of industrial, electronic manufacturing, and laboratory applications where thermal stability is critical. The through-hole mount type and solder termination method ensure strong mechanical retention and excellent electrical contact.
This TS Series pin header mates typically with SS and SL series socket strips, providing versatile integration options in board-to-board or wire-to-board connector systems. Features 12 male contacts with a single row design.
Precise 2.54 mm pitch ideal for standard PCB layouts. Manufactured with durable glass filled polyester housing. Phosphor bronze contacts plated with gold for enhanced reliability. Suitable for through-hole mounting and solder termination.
Wide operating temperature range from -55°C to 125°C. Unshrouded for easy access and inspection. Meets demanding industrial and electronic assembly requirements.
Choose Samtec TS-112-G-A for applications demanding precision and longevity in electronics interconnects. Browse more PCB Pin Headers and connectors from Samtec on EnvMart for advanced industrial usage.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this pin header have a pitch of 2.54 mm, making it suitable for standard PCB layouts.
This model can operate at a maximum temperature of 125°C, allowing it to be used in various industrial applications.
The TS-112-G-A has a current rating of 1 ampere, making it suitable for low-power applications.
The housing is made from glass filled polyester, and the contacts are manufactured from phosphor bronze with a gold plating for enhanced conductivity and corrosion resistance.
This pin header features 12 male contacts arranged in a single row configuration.
It utilizes a through-hole mounting type, which ensures strong mechanical retention on printed circuit boards.
The tail pin length of this model is 3.96 mm, providing a secure fit when soldered to a PCB.
This connector is unshrouded, allowing for easy access and visual inspection of the contacts.
The mating pin length for this pin header is 4.22 mm, ensuring proper fit and solder joint integrity.
This pin header is part of a board-to-board connector system, facilitating versatile integration options.
The minimum operating temperature for this model is -55°C, allowing it to function in extreme conditions.
The TS-112-G-A is suitable for a wide array of industrial, electronic manufacturing, and laboratory applications where thermal stability is critical.
