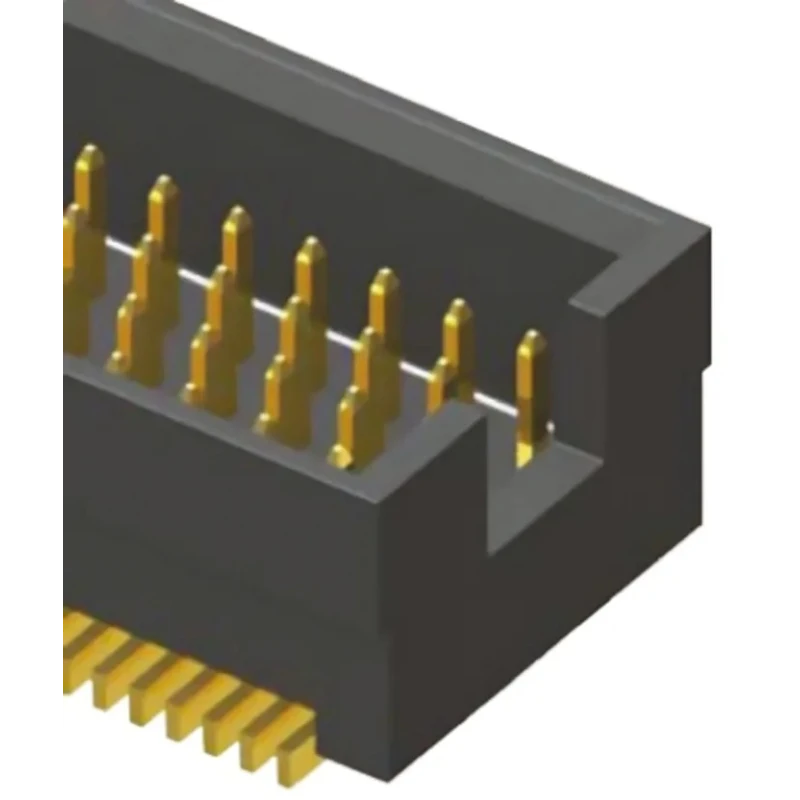

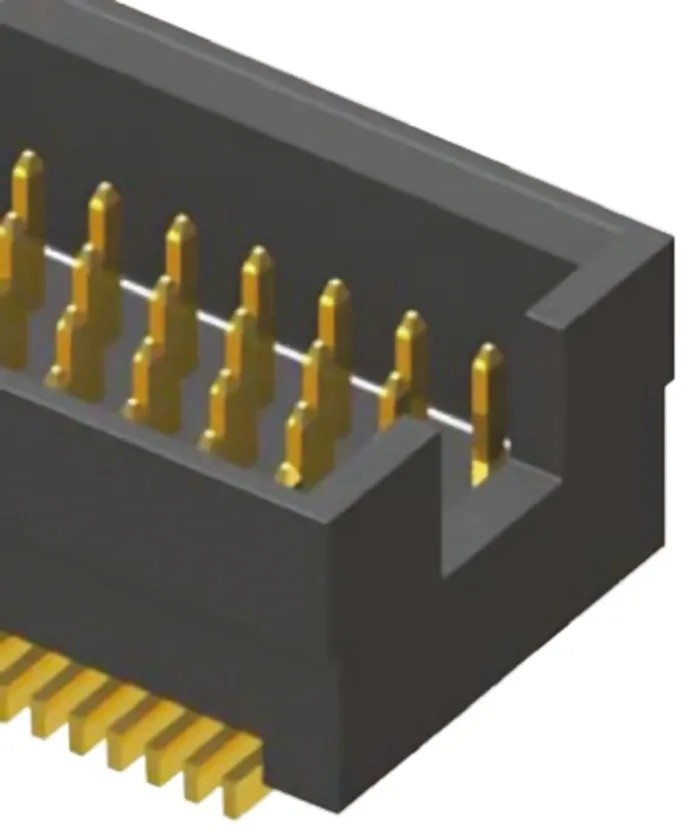

Samtec TOLC Series Straight Surface PCB Header, 40 Contacts, 1.27 mm Pitch, 4 Row, Shrouded TOLC-110-02-S-Q
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.5A |
| Model | TOLC-110-02-S-Q |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TOLC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a staggered quad row design with 1.27 mm pitch and 0.635 mm contact offset.
- Contacts are plated with 0.75 μm gold and tails with 0.075 μm gold for durability.
- Housing is made from liquid crystal polymer for stability and temperature resistance.
- Supports a current rating of 2.5A and operating temperatures from -55°C to 125°C.
- Designed for surface mounting with male solder termination.
- Shrouded design protects contacts and ensures correct mating.
- Above board height is 5.59 mm and mated height is 6.35 mm with matching SOLC socket.
- Suitable for high density PCB interconnection applications.
Product Description
Samtec TOLC-110-02-S-Q is a straight surface mount PCB header designed for high density board-to-board applications. It features 40 phosphor bronze contacts arranged in four staggered rows with 1.27 mm pitch and a 0.635 mm offset, providing compact, reliable connections in electronic assemblies.
The contact surfaces and tails are plated with gold (0.75 μm on contacts and 0.075 μm on tails) to enhance conductivity and resistance to corrosion. The housing material is a liquid crystal polymer, offering excellent mechanical strength and thermal stability within the operating temperature range from -55°C to 125°C.
This connector employs a male contact gender with solder termination type and includes a shrouded design to protect the contacts and aid proper mating, especially when used with corresponding SOLC series sockets. Its above-board height is 5.59 mm, and it mates at 6.35 mm height with mating components.
Ideal for use in electronics manufacturing, industrial equipment, communications hardware, and other applications requiring dependable PCB interconnections. This PCB header supports a current rating of 2.5A and is compatible with standard surface mount processes.
Staggered quad row design for high density. Gold-plated phosphor bronze contacts for durability and conductivity. Liquid crystal polymer housing material. Operating temperature range from -55°C to 125°C. Surface mount with solder termination.
Shrouded for contact protection. Reliable board-to-board connector system. Compatible with SOLC high density sockets. Explore more Samtec PCB connectors and headers at EnvMart to find suitable components for your electronic projects and industrial production needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2.5A.
The operating temperature range is from -55°C to 125°C.
It features 40 contacts arranged in four staggered rows.
The contacts are spaced at a pitch of 1.27 mm.
The housing is made from liquid crystal polymer, providing stability and temperature resistance.
It employs a solder termination type for connection.
Yes, this model features a shrouded design to protect the contacts and ensure proper mating.
The above-board height is 5.59 mm.
The contacts are made of phosphor bronze and are plated with gold for enhanced conductivity.
It is suitable for high density PCB interconnection applications in electronics manufacturing and industrial equipment.
The staggered quad row design allows for compact and reliable connections in electronic assemblies.
The contact gender is male, designed for board-to-board connections.
