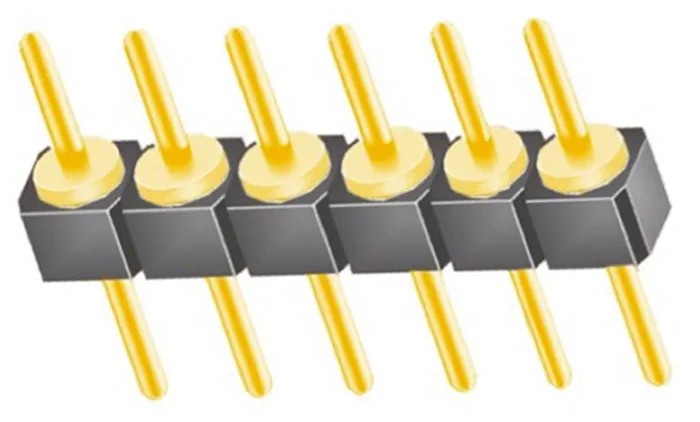

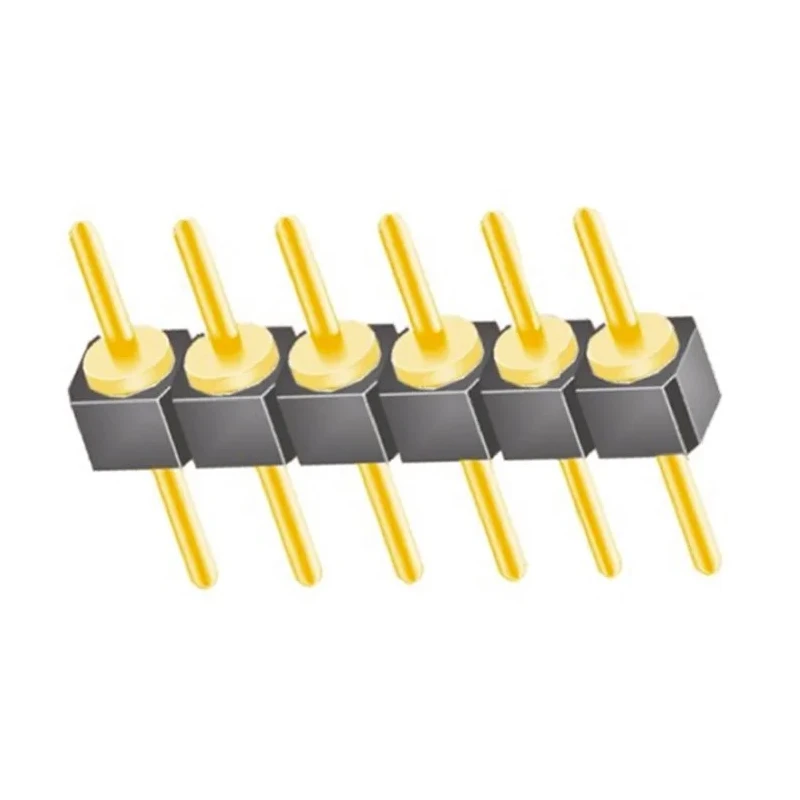

Samtec TS Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TS-106-G-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec TS Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TS-106-G-A

Name: Samtec TS Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TS-106-G-A
Brand: Samtec
SKU: 130395
Price: 3.54 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	1A
Model	TS-106-G-A
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Phosphor Bronze
Series	TS
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Tail Pin Length	3.96mm
Mating Pin Length	4.22mm

Key Features

Constructed with glass filled polyester housing for durability.
Phosphor bronze contacts plated with 0.51μm gold ensure reliable conductivity.
Suitable for operating temperatures ranging from -55°C to 125°C.
Through hole mount type with 3.96mm tail pin length for secure soldering.
Unshrouded design enabling easy mating with corresponding socket strips.
Supports a current rating of 1A per contact.
Standard 2.54 mm row pitch compatible with common PCB layouts.
Male contact gender with solder termination type ensures firm electrical contact.

Product Description

Samtec TS-106-G-A is a high-precision TS Series straight through hole pin header tailored for board-to-board electronic connections. This pin header features a robust glass filled polyester housing that ensures mechanical strength and stability during assembly and operation. It includes 6 gold-plated phosphor bronze male contacts arranged in a single row with a 2.54 mm pitch, ideal for standard PCB configurations.

The contacts are precision screw machined to maintain reliable electrical performance and corrosion resistance thanks to the 0.51 μm gold plating. The header is unshrouded, facilitating straightforward mating with compatible socket strips typically from the SS or SL series.

Operating temperature range spans from -55°C to 125°C, supporting applications that require resilience in demanding thermal environments. Tail pins measure 3.96 mm in length for secure penetration and solder mounting on circuit boards, ensuring mechanical and electrical robustness.

This product carries a 1A current rating per contact, making it suitable for various electronic assembly and power transmission needs in industrial, laboratory, commercial, and manufacturing sectors.

The TS-106-G-A series is essential for engineers and technicians designing compact and high-density PCB assemblies requiring reliable board-to-board connections via through hole mounting.

6 male contacts with 2.54 mm pitch provide standard connectivity for PCB applications. Glass filled polyester housing withstands mechanical stress and environmental factors. Phosphor bronze contacts with gold plating guarantee long-term conductivity and resistance to corrosion.

Operating temperature from -55°C to 125°C enables deployment in extreme conditions. Through hole, solder termination assures durable electrical connections. Unshrouded straight orientation facilitates easy component mating and assembly.
