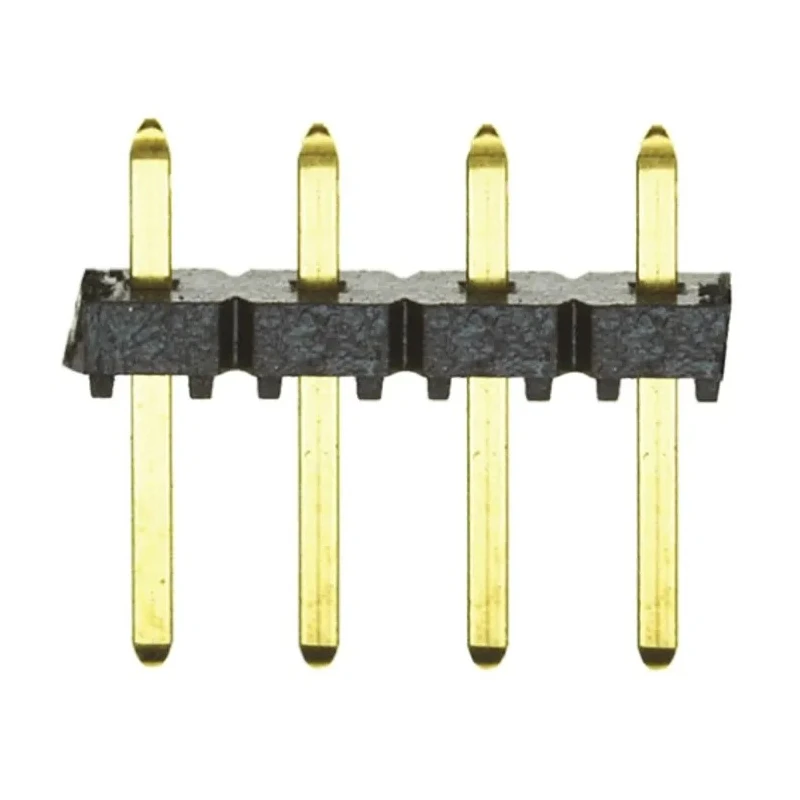

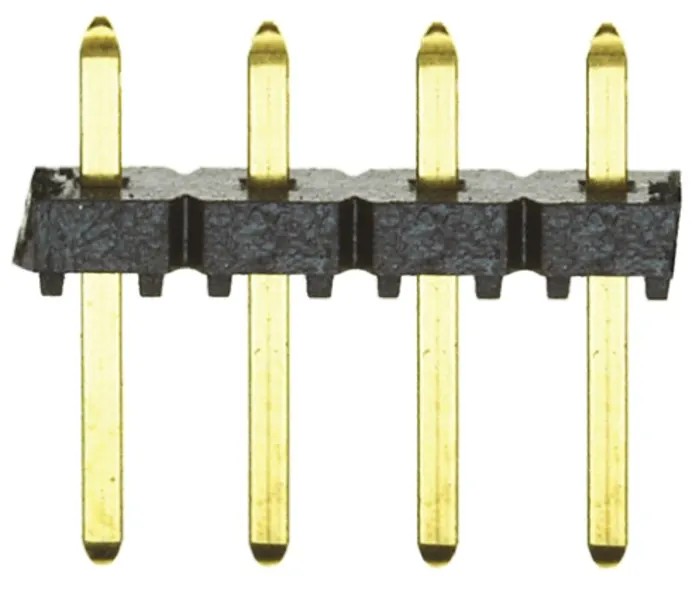

Samtec TLW Series Straight Through Hole Pin Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TLW-104-05-G-S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3A |
| Model | TLW-104-05-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TLW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 4.32mm |
| Mating Pin Length | 2.67mm |
Key Features
- Constructed from phosphor bronze contact material with gold plating for excellent conductivity and corrosion resistance.
- Housing made of black liquid crystal polymer providing thermal stability and durability.
- Rated for 3A current with operating temperature range from -55°C to 125°C.
- Tail pin length of 4.32 mm and mating pin length of 2.67 mm ensure secure solder and mating connections.
- Compatible with board-to-board and wire-to-board connector systems using through-hole mounting.
- Low profile 2.54 mm pitch allows compact PCB layouts and reliable performance.
- Designed for industrial, electronic, and manufacturing applications requiring precise electrical connection.
Product Description
Samtec TLW-104-05-G-S is a straight through-hole pin header featuring 4 male contacts arranged in a single row with 2.54 mm pitch. It is designed with an unshrouded black liquid crystal polymer housing that offers mechanical strength and thermal resistance suitable for operating temperatures ranging from -55°C to 125°C.
The contacts are made from phosphor bronze and plated with 0.25μm gold on contact surfaces and gold flash on tail pins, ensuring excellent electrical conductivity, corrosion resistance, and reliable solder connections. This pin header supports a current rating of 3A and is built for through-hole mounting on printed circuit boards.
With a tail pin length of 4.32 mm and mating pin length of 2.67 mm, this component offers secure connections for board-to-board or wire-to-board applications. The low-profile 2.54 mm pitch makes it ideal for compact electronic devices and assemblies.
Samtec's TLW series pin headers are widely used in industrial, manufacturing, electronic component assembly, and PCB design due to their robustness, reliability, and high performance.
Constructed from phosphor bronze contact material with gold plating for excellent conductivity and corrosion resistance. Housing made of black liquid crystal polymer providing thermal stability and durability. Rated for 3A current with operating temperature range from -55°C to 125°C.
Tail pin length of 4.32 mm and mating pin length of 2.67 mm ensure secure solder and mating connections. Compatible with board-to-board and wire-to-board connector systems using through-hole mounting. Low profile 2.54 mm pitch allows compact PCB layouts and reliable performance.
Designed for industrial, electronic, and manufacturing applications requiring precise electrical connection. Explore Samtec PCB Headers and connectors categories at EnvMart for a wide range of high-quality electronic components engineered for demanding industrial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header is rated for a current of 3A.
The operating temperature range for the TLW-104-05-G-S is from -55°C to 125°C.
The contacts are made from phosphor bronze and are plated with gold, while the housing is constructed from liquid crystal polymer.
The pitch of this pin header is 2.54 mm, allowing for compact PCB layouts.
This model features 4 male contacts arranged in a single row.
The tail pin length is 4.32 mm, providing secure solder connections.
This pin header supports through-hole mounting on printed circuit boards.
The mating pin length is 2.67 mm, ensuring secure mating connections.
Yes, this pin header is compatible with both board-to-board and wire-to-board connector systems.
The orientation of this pin header is straight.
The termination type for this model is solder.
This pin header is manufactured in India.
