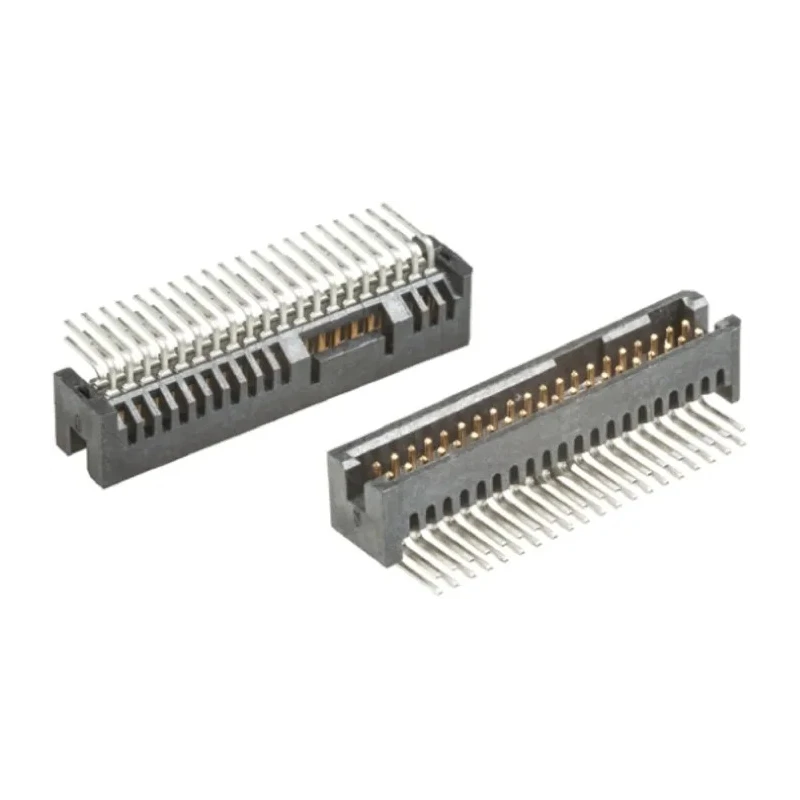

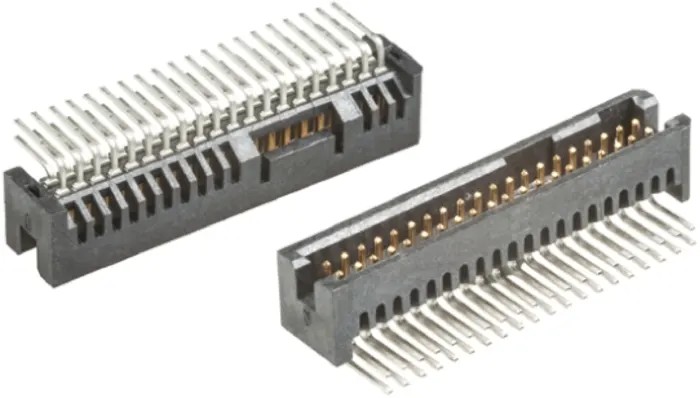

Samtec TFML Series Right Angle Through Hole PCB Header 20 Contacts 1.27 mm Pitch 2 Row Shrouded TFML-110-01-S-D-RA

Samtec TFML-110-01-S-D-RA PCB Header is a high-quality right angle, through hole mount connector designed for reliable electronic assembly. It features 20 male contacts arranged in 2 rows with a 1.27 mm pitch, optimized for board-to-board and wire-to-board applications where a shrouded housing offers added protection and alignment.

This header uses a black Liquid Crystal Polymer (LCP) housing delivering excellent mechanical strength and thermal stability. The phosphor bronze contact material with 0.76 μm gold plating ensures consistent electrical performance and corrosion resistance suitable for industrial and commercial electronic devices.

Rated at 5A current and 350V voltage, it supports a wide range of electronic system power requirements. The operating temperature range of -55°C to 125°C makes it adaptable for use in harsh environments including industrial automation, instrumentation, communications, and computing.

The through hole design with solder terminations ensures mechanical robustness and long-lasting electrical contact integrity on printed circuit boards. The integrated lock feature provides a friction-based secure connection with compatible TFML sockets, preventing unintended detachment during operation or transport.

This PCB header is ideal for industries such as manufacturing, telecommunications, aerospace, and automotive systems where dependable board interconnection is critical. It is compatible with related SFML Series board-to-board sockets and connectors, enabling flexible modular solutions.

Features a shrouded housing with right angle orientation and 2 contact rows. Liquid Crystal Polymer housing for mechanical and thermal resilience. Gold plated phosphor bronze male contacts for high conductivity and durability.

Supports 5A current and 350V voltage at operating temperatures from -55°C up to 125°C. Through hole solder termination with 0.46 mm post diameter contacts. Locking design ensures mating security in demanding applications.

Widely applicable in industrial, laboratory, telecommunications, automotive, and electronic manufacturing environments. Explore Samtec PCB Headers and related components for innovative, reliable electronic connector solutions at EnvMart.
