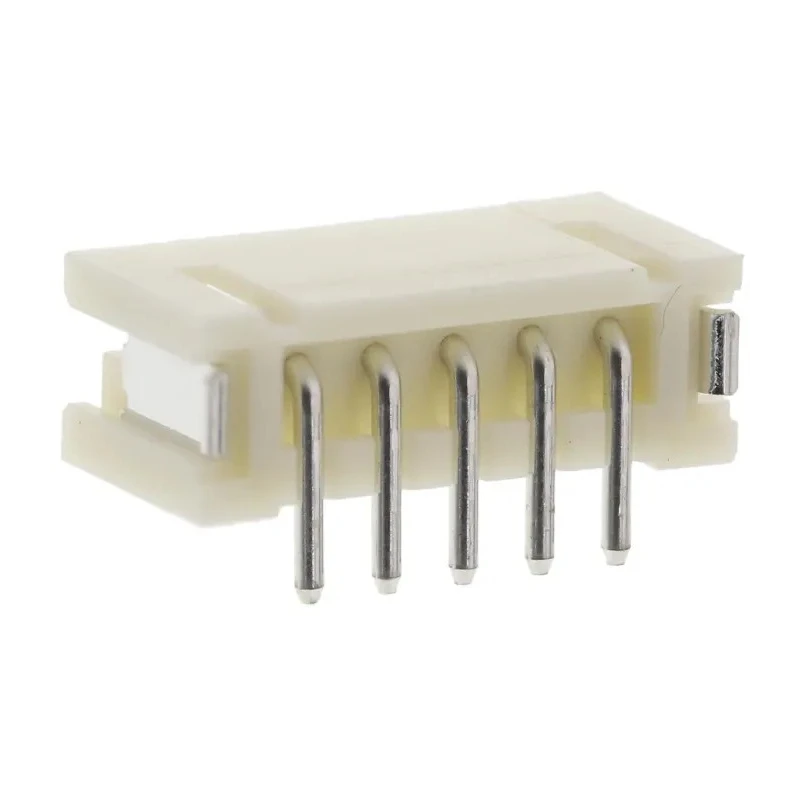

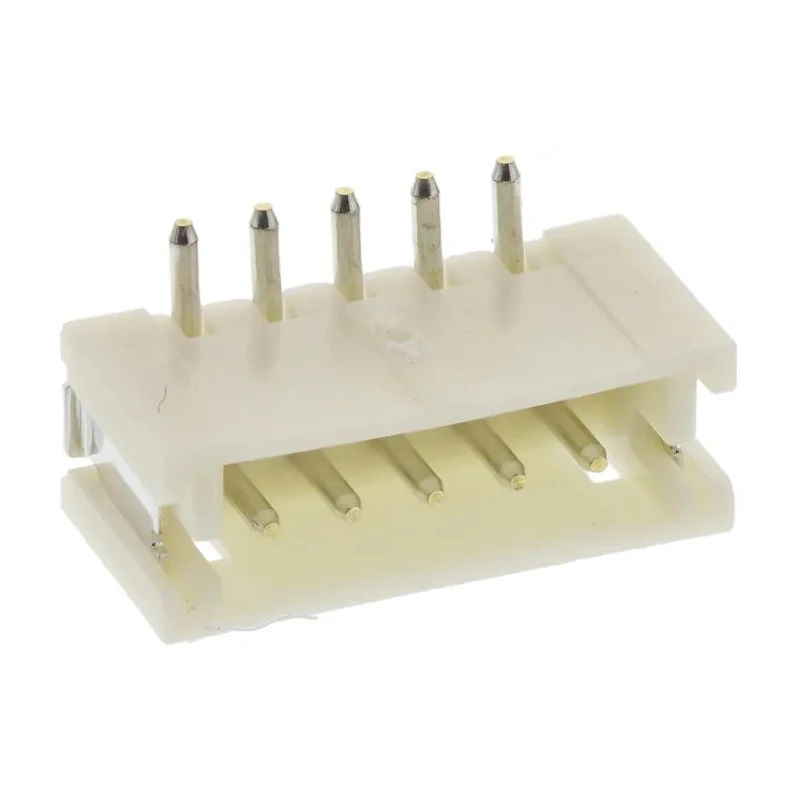

JST ZH Series Top Entry Surface PCB Header 5 Contacts 1.5 mm Pitch 1 Row Shrouded B5B-ZR-SM4 TF (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST ZH Series Top Entry Surface PCB Header 5 Contacts 1.5 mm Pitch 1 Row Shrouded B5B-ZR-SM4 TF (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	JST
Orientation	Top Entry
Current	1A
Model	B5B-ZR-SM4 TF (LF) (SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Brass
Series	ZH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	lances
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The compact, low profile design saves installation space compared to standard 2 mm pitch connectors.
Constructed with polyamide housing and brass contacts plated with tin for durability and reliability.
Rated for 1A current and 50V voltage with operating temperature from -25°C to 85°C.
Features contact retention lances in the resilient housing ensuring secure contact lock-in.
Shrouded single-row connector type suitable for SMT applications.
Compatible with JST ZR insulation displacement connectors for versatile system integration.
Designed for top entry orientation to optimize PCB layouts and assembly.

Product Description

JST B5B-ZR-SM4 TF (LF) (SN) is a top entry surface mount PCB header from the ZH series designed for wire-to-board connections with 1.5 mm pitch and 5 contacts in a single row. It offers a compact, low profile footprint ideal for space-constrained electronic applications across industrial, manufacturing, and electronic assembly sectors.

The polyamide housing provides robust insulation while the brass contacts plated with tin ensure reliable electrical performance and corrosion resistance. This shrouded header type safeguards contacts and facilitates secure mating.

Operating reliably at currents up to 1A and voltages up to 50V, it withstands environmental extremes from -25°C to 85°C, making it suitable for a broad range of electronic equipment including telecommunications, instrumentation, and control systems.

Key design elements include housing lances that hold contacts firmly, allowing visual confirmation of proper lock-in and enhanced mechanical retention. The connector system aligns with JST's ZR insulation displacement connectors enabling modular and efficient wiring solutions.

Compact low profile design reduces board space requirements. Resilient polyamide housing ensures electrical insulation and mechanical strength. Reliable brass contacts plated with tin guarantee long-term conductivity. Top entry orientation simplifies assembly and wiring.

Shrouded construction protects contacts from damage and dust. Suitable for surface mount technology on PCBs. Rated for continuous use between -25°C and 85°C.

This JST ZH series PCB header is frequently employed in industrial electronics, manufacturing equipment, telecommunications hardware, and other commercial electronic devices requiring secure, compact wire-to-board interconnect solutions. Its compatibility with crimp style insulation displacement connectors broadens its application scope in achieving efficient and reliable electrical assemblies.

Explore more JST connectors and PCB Header solutions at EnvMart for high quality industrial and electronic components tailored to your application needs.
