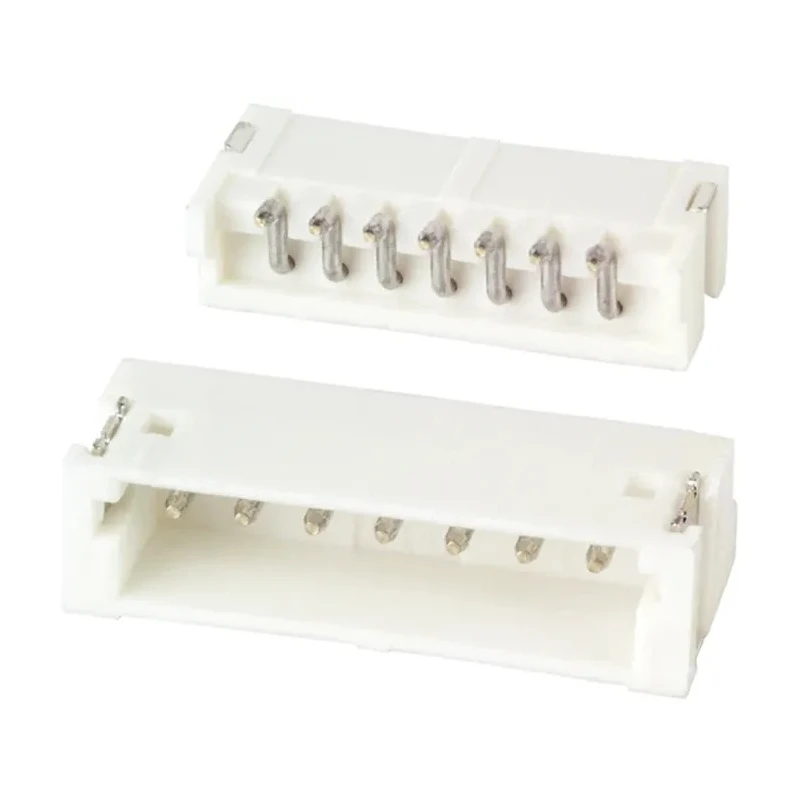

JST ZH Series Right Angle Surface PCB Header 7 Contacts 1.5 mm Pitch 1 Row Shrouded S7B-ZR-SM4A-TF (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST ZH Series Right Angle Surface PCB Header 7 Contacts 1.5 mm Pitch 1 Row Shrouded S7B-ZR-SM4A-TF (LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	S7B-ZR-SM4A-TF (LF)(SN)
Mount Type	Surface
Contact Material	Brass
Series	ZH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header features a compact 1.5 mm pitch suitable for space-saving applications.
Right angle orientation provides efficient wire-to-board connectivity.
Shrouded contact system ensures secure mating and prevents misalignment.
Constructed with brass contacts plated in tin for reliable electrical performance.
Supports surface mount technology (SMT) mounting type for easy PCB installation.
Rated for 1A current and 50V voltage, ideal for low power electronic circuits.
Operates reliably within a temperature range of -25°C to 85°C.
Male contact gender with solder termination ensures solid connections.

Product Description

JST S7B-ZR-SM4A-TF (LF)(SN) Right Angle Surface PCB Header from the ZH Series offers a robust solution for wire-to-board connections with a compact 1.5 mm pitch and a shrouded design that enhances connector protection. Featuring 7 contacts arranged in a single row, this header delivers reliable electrical performance in a small footprint.

The brass contacts with tin plating provide excellent conductivity and resistance to corrosion, while the surface mount type ensures compatibility with modern PCB assembly processes. Its right angle orientation is suitable for space-constrained designs and allows efficient cable routing.

Rated at 1A current and 50V voltage, this PCB header operates reliably between -25°C to 85°C, making it suitable for diverse industrial, commercial, and electronics manufacturing applications. The male contact gender and solder termination type ensure durable and secure electrical connections.

Typical use cases include PCB assembly in consumer electronics, instrumentation, industrial control equipment, and communication devices where compact and secure connectors are essential.

The shrouded construction protects contacts from damage and accidental short circuits, increasing connector life and system reliability. This PCB header features a compact 1.5 mm pitch suitable for space-saving applications.

Right angle orientation provides efficient wire-to-board connectivity. Shrouded contact system ensures secure mating and prevents misalignment. Constructed with brass contacts plated in tin for reliable electrical performance.

Supports surface mount technology (SMT) mounting type for easy PCB installation. Rated for 1A current and 50V voltage, ideal for low power electronic circuits. Operates reliably within a temperature range of -25°C to 85°C.

Male contact gender with solder termination ensures solid connections. Designed for industrial and commercial electronics applications requiring compact connectors. Explore the PCB Headers category for more high-quality connectors by JST and other industry-leading brands on EnvMart.
