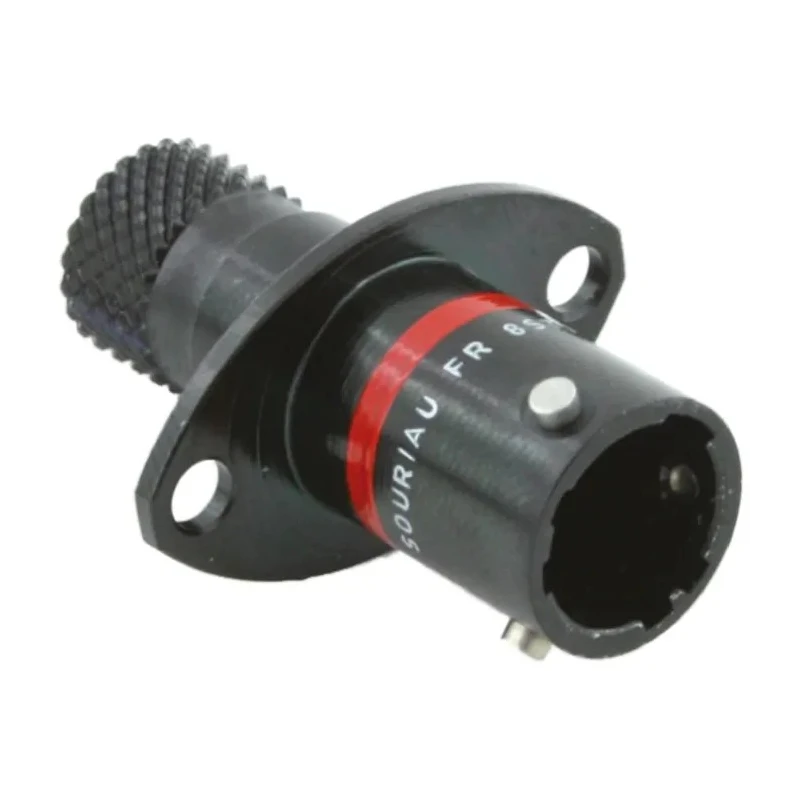

Souriau Sunbank by Eaton Circular Connector 3 Contacts Panel Mount Socket Male IP67 1000V 7.5A Aluminium Housing 8STA00898PN

Souriau Sunbank by Eaton 8STA00898PN circular connector is a high-performance, lightweight connector designed primarily for motorsport and demanding industrial environments. This connector features 3 gold-plated copper alloy contacts with male gender in a socket housing configuration, ideal for panel mount installation. It provides a voltage rating of 1000 V and a current capacity of 7.5 A, ensuring reliable and safe electrical connections.

The robust aluminium alloy housing with conductive black zinc plating offers excellent durability, impact resistance, and corrosion protection. The connector's IP67 ingress protection rating guarantees resistance to dust and water immersion up to 1 meter for 30 minutes, making it suitable for harsh outdoor and industrial conditions.

Equipped with a quick mating bayonet lock system with a 1/3 turn and audible click, the connector enables fast and secure connections. The colour-coded banding enhances easy identification in complex wiring setups. Its design complies with shock resistance of 300g at 3 ms and vibration resistance at 147 m/s2 from 10 to 2000 Hz, ensuring strong tolerance to mechanical stresses.

This 8STA series size 8 oval flange circular connector is widely used in motorsport applications such as Formula 1, Moto GP, NASCAR, kart racing, and military applications including UAVs and ground vehicle interconnections, where compact size and lightweight construction are critical. The operating temperature range from -55°C to 175°C supports diverse environmental requirements.

Features a 3-contact layout suitable for industrial applications. Panel mount with a standard size shell for easy installation. Socket type connector with male contacts ensuring secure mating. Rated for 1000 V and 7.5 A current for robust electrical performance.

Constructed with durable aluminium housing with conductive black zinc plating. Gold-plated copper contacts provide excellent electrical conductivity and corrosion resistance. Meets IP67 rating for water and dust protection in harsh environments.

Designed with quick mating bayonet lock and 1/3 turn for efficient assembly. Suitable for motorsport and military applications requiring vibration and shock resistance. Operating temperature range from -55°C to 175°C for wide environmental tolerance.

This product supports industrial, automotive, military, and motorsport connectivity needs, delivering reliable and robust performance in challenging environments. It is a high-quality component ideal for engineers and technicians requiring secure circular connectors with proven resistance to environmental stressors. Browse EnvMart for further options in circular connectors and related industrial electronic components.
