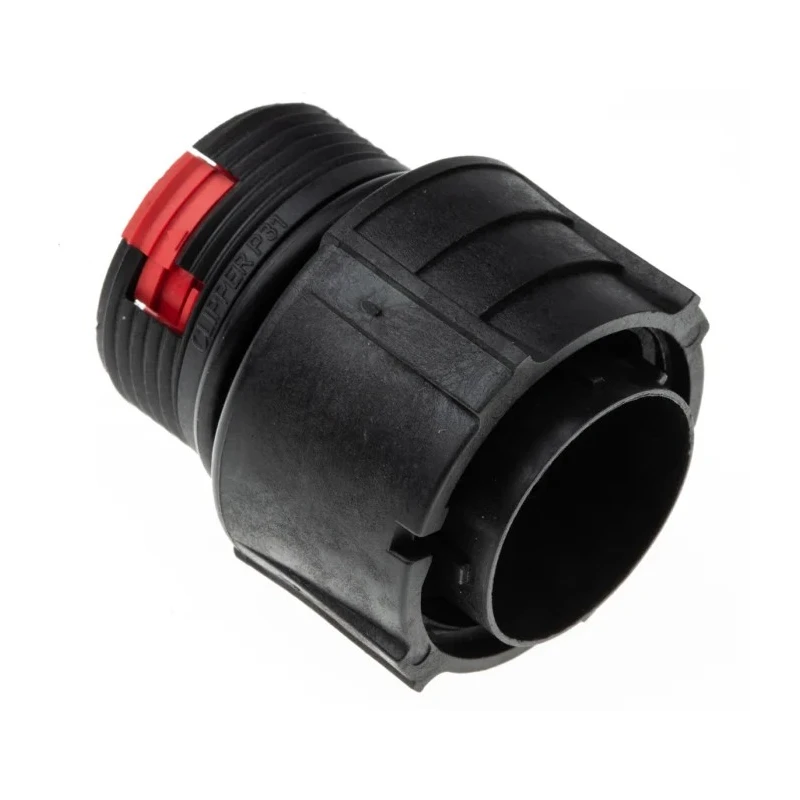

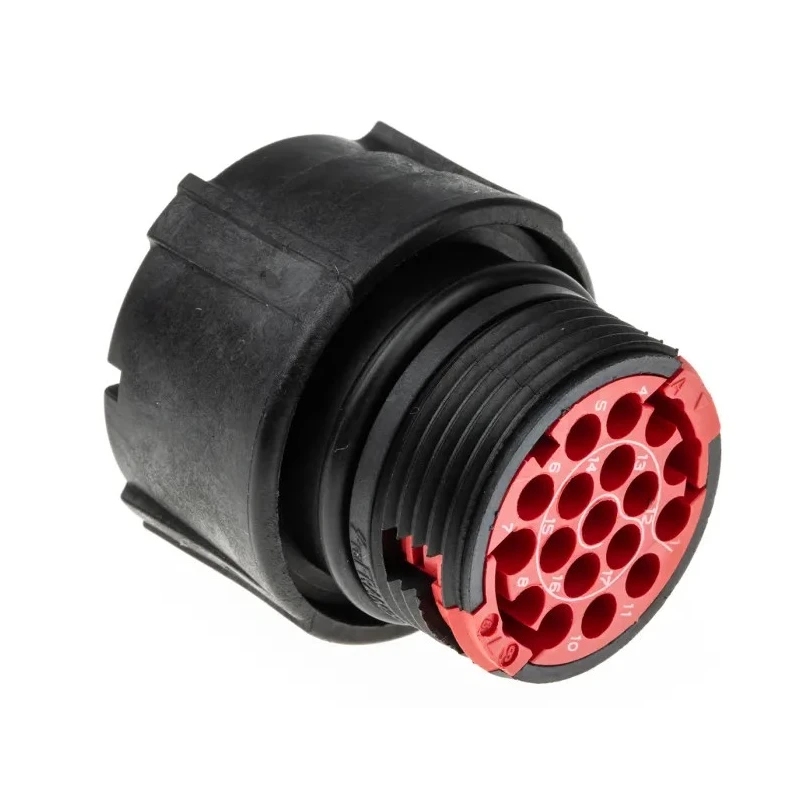

Souriau Sunbank by Eaton Circular Connector, 18 Contacts, Cable, Plug, Male, IP67, Clipper Series CL1P3101

Souriau Sunbank by Eaton CL1P3101 Circular Connector is an advanced industrial connector engineered for demanding environments. This connector features 18 high-density contacts with gold over nickel plating that ensures optimal conductivity and corrosion resistance. The plug offers a straight body orientation and is cable mounted, making it easy to integrate into a variety of electrical assemblies.

Designed for robust operation, the Clipper Series connector provides IP67 ingress protection, safeguarding against dust and temporary immersion in water. The thermoplastic housing material enhances durability while reducing weight, and the plug is scoop proof, allowing safe blind mating without risk to contacts. The 13A current rating per contact and 1500V voltage rating make it suitable for high-power industrial and automation systems.

Features a robust thermoplastic housing designed for industrial use. Provides 18 contacts with gold over nickel plating for reliable electrical performance. Rated IP67 for protection against dust and immersion in water. Plug, male configuration with cable mounting and straight body orientation.

Supports crimp termination and threaded mating type for secure connection. Operates at voltages up to 1500V and currents up to 13A per contact. Clipper Series design allows easy contact insertion/extraction without tooling.

Wide operating temperature range from -40°C to 125°C suitable for harsh environments. Scoop proof contacts enable safe blind mating without risk of damage. Ideal for factory automation, machine tools, and test instrumentation applications.

The connector offers a retention plate system for effortless contact maintenance and replacement, supporting up to 250 mating cycles for longevity. Its threaded mating type ensures secure connections, and PG thread compatibility allows versatile backshell use. The Clipper Series is unshielded, accommodating high-density formats using 1mm contacts. Applications include factory automation, machine tools, and measurement instrumentation, with benefits such as high vibration resistance and durability.

Industrial users rely on this circular connector for integrating reliable connectivity in tough environments like manufacturing plants, laboratory equipment, and commercial installations. Its high performance and ease of maintenance make it an ideal choice for professionals seeking safety, flexibility, and extended lifecycle in their electrical systems.
