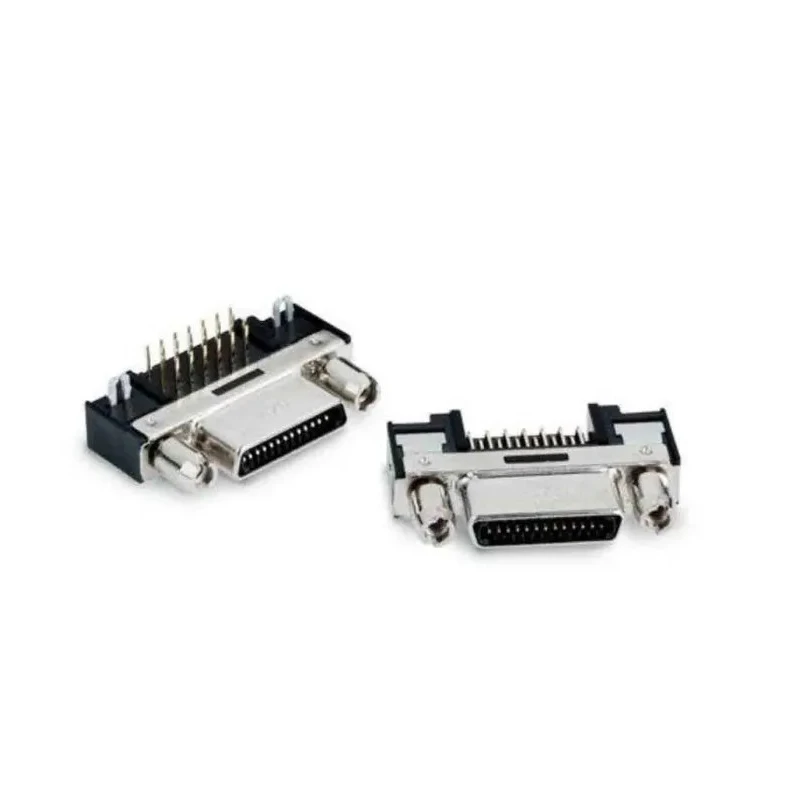

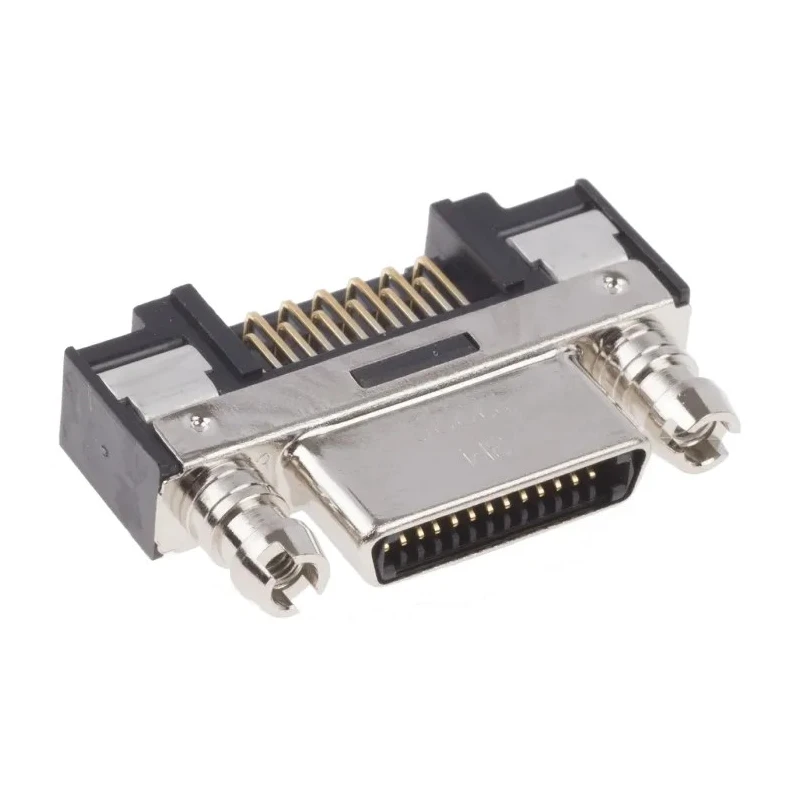

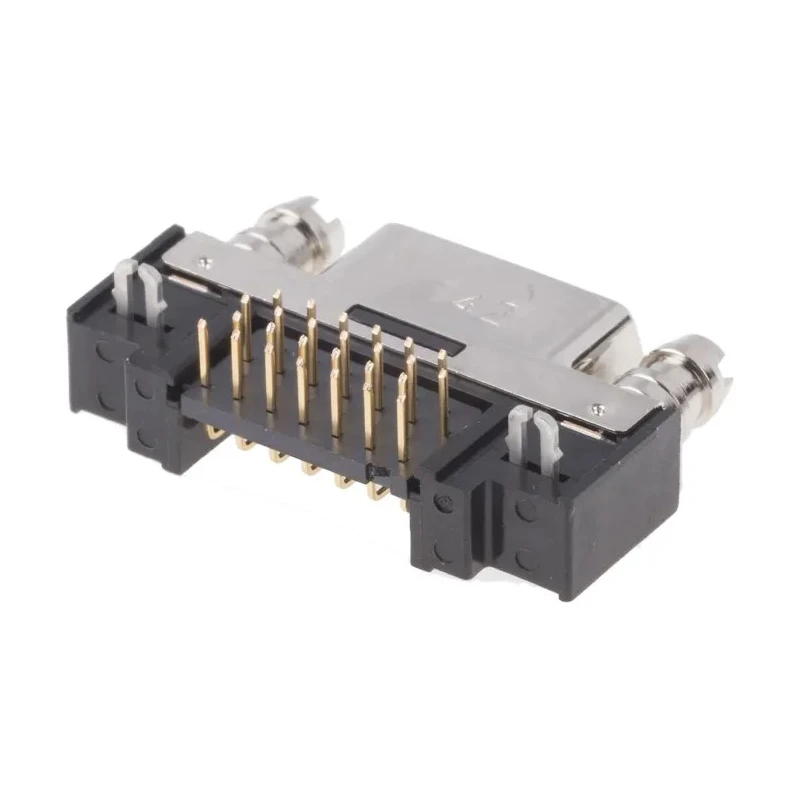

3M 26-Way IDC Connector Female for Through Hole Right Angle 350V ac 500mA 0.8mm Pitch 12226-5150-00FR

3M 12226-5150-00FR is a professionally engineered 26-way IDC female connector designed for through hole mounting on PCBs. This connector features a low-profile 0.8 mm pitch with two rows, making it ideal for tight electronic assemblies requiring reliable multi-contact connections.

The contacts are crafted from copper with a gold over nickel plating of 0.76 µm on the contact area and gold flash on solder tails, providing excellent electrical conductivity and durability against corrosion. The connector is shrouded to ensure safe and secure mating with complementary connectors.

Operating voltage is rated at 350V ac and current at 500mA, suitable for various electronic component power levels. Its right-angle orientation facilitates space-saving board layouts while the through hole mount type ensures mechanical robustness and reliable solder joints.

The connector housing combines nylon and steel materials, which contribute to overall mechanical strength and durability. It is designed to operate in environments with temperatures ranging from -40°C to 70°C, covering industrial to commercial temperature demands.

Additional features include compatibility with M2 jack screws for panel mounting, offering flexibility in installation thickness from 0.8 mm to 1.2 mm using respective screws ordered separately. The shrunk delta ribbon (SDR) connector design supports high-density pin layout without compromising signal integrity and can replace MDR connectors in existing Camera Link® applications.

Constructed with gold over nickel gold-plated copper contacts for excellent conductivity and corrosion resistance. Shrouded female connector design ensures secure mating and protection. Rated for 350V ac voltage and 500mA current suitable for low power circuits.

Right angle orientation and through hole mount facilitates board mounting in compact spaces. Operating temperature range from -40°C to 70°C accommodates varied environments. Housing comprises durable nylon and steel materials enhancing mechanical strength.

Termination type is solder, enabling firm electrical connections. Compact 0.8 mm pitch supports dense multi-pin connections in small form factors. Compatible with M2 jack screws for panel mounting (screws sold separately).

This IDC Connector is widely applicable in industrial electronics, PCB assemblies, instrumentation, communications equipment, and commercial electronic devices requiring dependable multi-contact solutions. Its robust build and precise contact plating ensure longevity in demanding environments.
