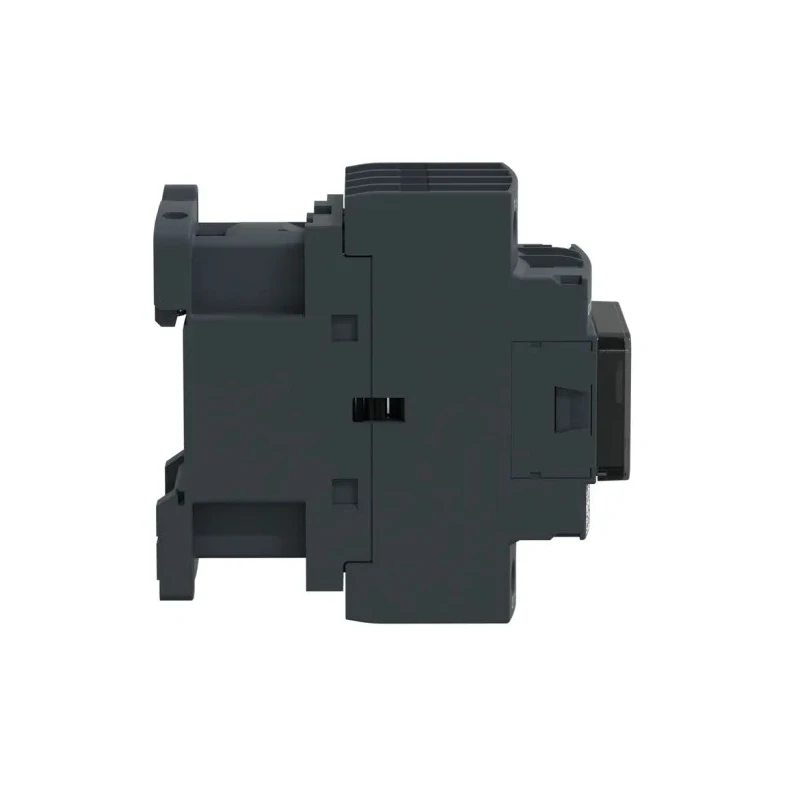

Schneider Electric Contactor LC1DT25U7, 240V AC Coil, 4-Pole, 25 A Resistive Load, 4 NO, 690V AC/DC LC1DT25U7

Schneider Electric LC1DT25U7 is a high-performance 4-pole contactor equipped with a 240V AC coil designed for robust motor control and resistive load applications. It operates with a rated operational voltage of 690V AC/DC and supports a contact current of 25A, making it suitable for demanding industrial environments.

The contactor includes 4 normally open (NO) main contacts and 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC), with the NC auxiliary contact being mirror certified for enhanced reliability. Connection is facilitated by screw clamp terminals for both load and auxiliary circuits, ensuring secure and straightforward wiring.

This device is designed for DIN rail mounting or screw fixing, offering flexibility in installation. Its compact dimensions of 85mm length, 45mm width, and 92mm depth allow it to fit efficiently in control panels and electrical assemblies. The contactor functions reliably across a broad temperature range from -40°C to 60°C and is capable of operating up to 3600 cycles per hour, promoting durability and consistent performance.

Schneider Electric has built this contactor to meet international standards including CSA, UL, IEC, CCC, EAC, and Marine certifications, while also complying with environmental regulations such as RoHS and REACh as a Green Premium product. This makes the LC1DT25U7 not only reliable but also environmentally responsible.

The contactor is ideal for numerous industrial and commercial applications including automated machinery control, HVAC systems, and motor starter setups. Its high thermal current capacity and rated making capacity of 250A ensure it withstands high electrical loads effectively.

Operates at coil voltage of 240V AC and contact voltage of 690V AC/DC. Features 4-pole 25A resistive load rated contacts ideal for motor control. Includes 2 auxiliary contacts (1 NO + 1 NC) with mirror certification. Mounts on DIN rail with screw clamp terminals for secure connections.

Rated for operation between -40°C and 60°C with high cycle durability. Compact dimensions support versatile installation needs. Complies with standards CSA, UL, IEC, CCC, EAC, and Marine certifications. Green Premium compliant promoting environmental responsibility.

Suitable for motor starters, automated machinery, and HVAC applications. Discover more Contactors and motor control solutions at EnvMart to optimize your industrial automation projects.
