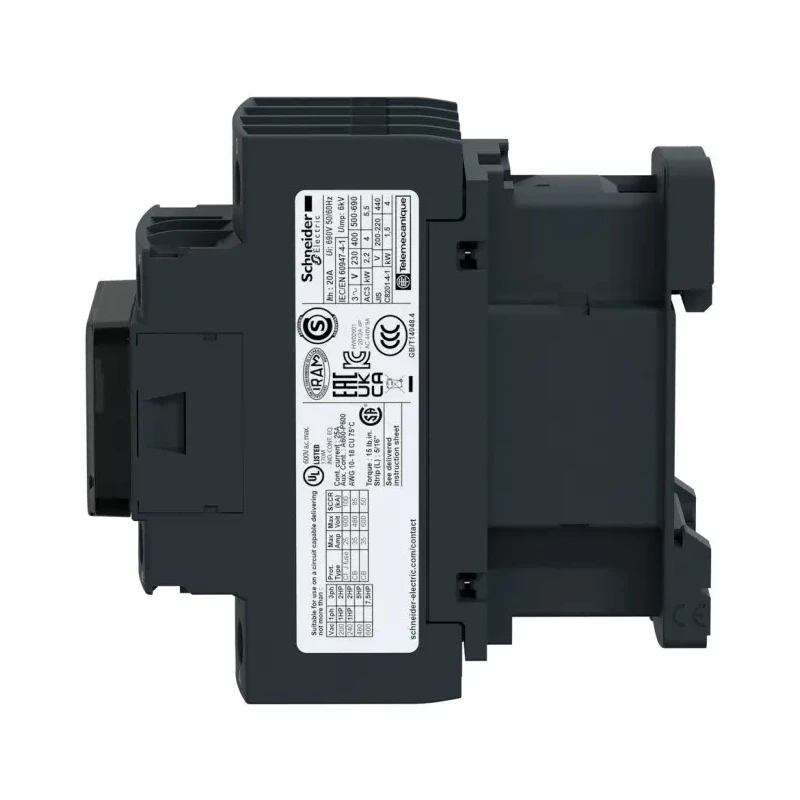

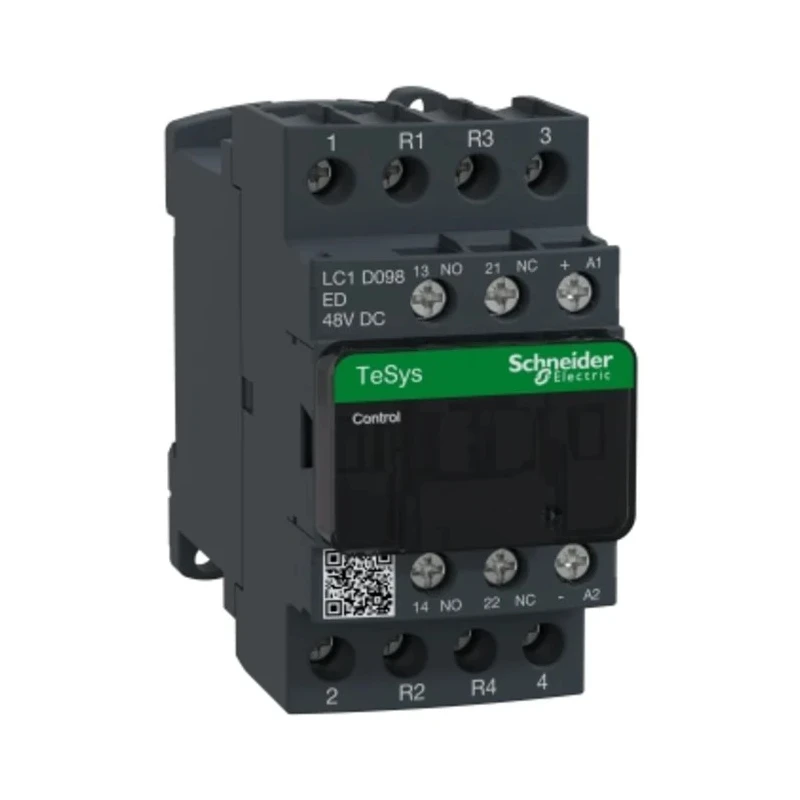

Schneider Electric LC1D Contactor, 48V DC Coil, 4-Pole, 9A 24V, 2 NO/2 NC, 690V AC/DC LC1D098ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Resistive Load |
| Length | 85mm |
| Model | LC1D098ED |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 48V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 60A |
| Control Circuit Voltage Uc | 24V |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates at contact voltage of 690V AC/DC with a contact current of 9A.
- Equipped with 2 normally open and 2 normally closed power contacts.
- Auxiliary contacts configured as 1 NO and 1 NC built-in.
- DIN rail mounting with screw clamp terminals and IP20 finger-safe protection.
- Suitable for operating temperatures from -5°C to 50°C and durable up to 60°C.
- Operational current up to 60A with high reliability and durability.
- Certified to IEC 61095, UL, CSA, CCC, EAC, Marine standards.
- Green Premium compliant for sustainability and designed for disassembly.
Product Description
Schneider Electric LC1D098ED is a high-quality 4-pole contactor featuring a 48V DC coil designed primarily for resistive load and motor control applications. It supports a contact current rating of 9A at 690V AC/DC, ensuring versatile use across multiple industrial and automation environments.
The contactor includes two normally open (NO) and two normally closed (NC) power contacts plus auxiliary contacts configured as one NO and one NC, providing flexible control and feedback options. The NC auxiliary contact is mirror certified for enhanced reliability. Connections utilize screw clamp terminals offering IP20 finger-safe protection and clear international terminal markings.
With dimensions of 85mm length, 45mm width, and 99mm depth, this compact contactor mounts easily on a DIN rail or via screws. It is engineered to operate reliably between -5°C and 50°C with endurance for environments reaching up to 60°C. It can handle an operational current (Ie) of up to 60A and supports fast operating rates up to 3600 cycles per hour, making it suitable for demanding industrial usage.
The LC1D098ED series complies with IEC 61095 and includes certifications for UL, CSA, CCC, EAC, and Marine standards, assuring international quality and safety compliance. It is also RoHS/REACH compliant, aligning with environmentally responsible manufacturing practices as a Green Premium product designed for disassembly.
This Schneider Electric contactor is ideal for automation, industrial control circuits, motor starters, HVAC systems, manufacturing equipment, and general resistive motor control applications. Its robust design and extensive accessory compatibility provide easy integration into complex control systems.
Operates with a 48V DC coil supporting motor control and resistive load applications. Compact and DIN-rail mountable for flexible installation. Includes 2 NO/2 NC power contacts and 1 NO/1 NC auxiliary contacts for versatile control.
Designed to withstand operating temperatures from -5°C to 50°C with durability up to 60°C. High operational current capacity of 60A and compliance with multiple international standards. Explore more industrial electrical products like Contactors, relays, and control gear at EnvMart for reliable automation and electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating is 690V AC/DC.
It can handle an operational current of up to 60A.
This model features 4 poles.
It uses a 48V DC coil.
The contactor includes 2 normally open (NO) and 2 normally closed (NC) power contacts.
It has dimensions of 85mm in length, 45mm in width, and 99mm in depth.
It operates reliably between -5°C and 50°C, with durability for environments up to 60°C.
This contactor is designed for DIN rail mounting.
It is certified to IEC 61095 and complies with UL, CSA, CCC, EAC, and Marine standards.
It features screw clamp terminals with IP20 finger-safe protection.
It is suitable for automation, industrial control circuits, motor starters, HVAC systems, and general resistive load applications.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
