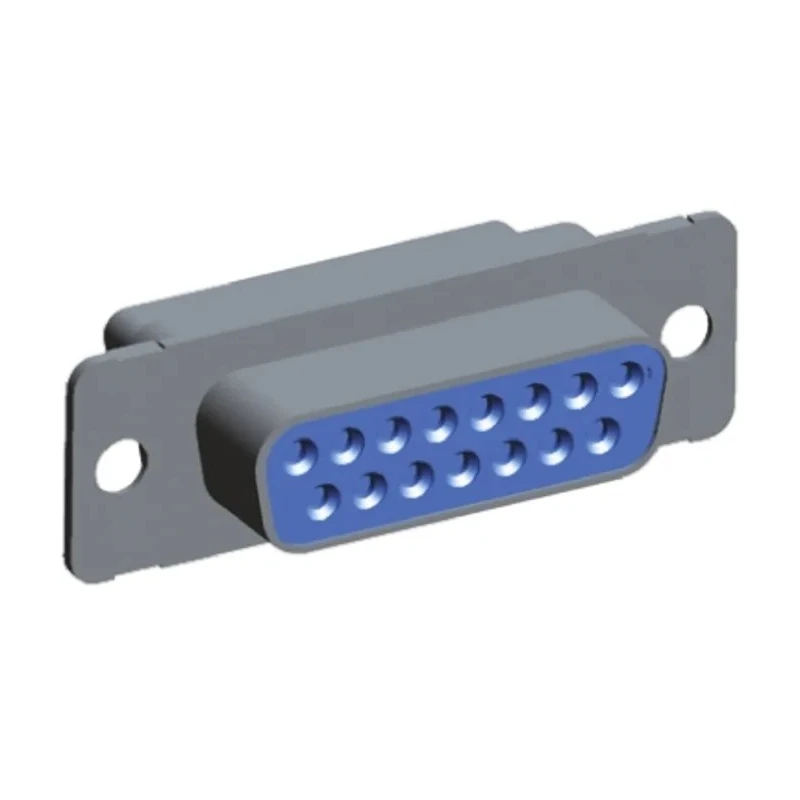

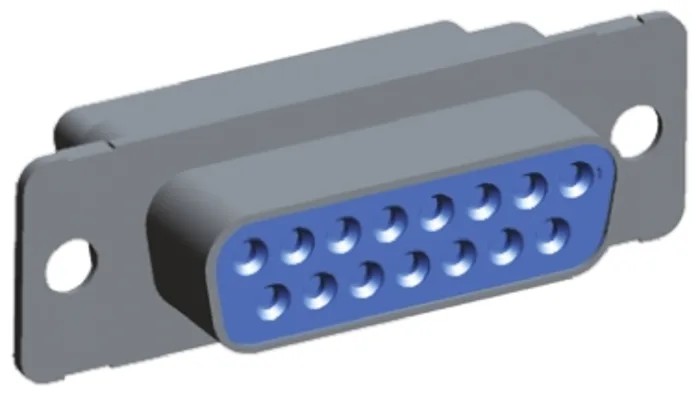

TE Connectivity Amplimite 109 15 Way Straight Cable D-Sub Connector Female 1757820-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Cable |
| Housing Material | Steel |
| Series | AMPLIMITE 109 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 20 |
| D-Sub Shell Size | DS-2 |
Key Features
- This connector features 15 contacts with a straight orientation for cable mounting.
- The housing is constructed from durable steel for enhanced mechanical protection.
- Contacts are size 20 and are female gender, matching MIL-C-24308 military specifications.
- It supports a wide operating temperature range from -55°C to 125°C.
- Termination is via crimp style, ensuring reliable electrical connections.
- This series 109 connector has zinc plated steel shells with 3.05mm mounting holes.
- Black polyester inserts comply with MIL-M-24519 standards for insulation.
- The connector mates with any compatible insert arrangement matching this military specification.
Product Description
TE Connectivity 1757820-2 Amplimite 109 15 Way Straight Cable D-Sub Connector Female is a high-quality connector designed to meet MIL-C-24308 military specifications. It is part of the AMPLIMITE series 109, which offers standard density military-grade cable mount D-sub plug and receptacle connectors. The connector features a robust steel housing and zinc plated steel shells with 3.05mm mounting holes, providing exceptional durability for demanding environments.
The connector uses size 20 female contacts with crimp termination, ensuring strong and reliable electrical connections suitable for industrial, military, and ground support applications. Operating temperature ranges from -55°C to 125°C make it ideal for harsh environments. Its black polyester inserts comply with MIL-M-24519, ensuring insulation and electrical safety.
This connector can mate with any other compatible connector with the same insert arrangement, providing flexibility for various electronic equipment assemblies. It is especially suited for military equipment, computer peripherals, modems, and industrial instrumentation. The product ensures compliance with applicable military standards without additional third-party approvals.
This connector features 15 female size 20 contacts arranged in a straight orientation. The housing material is steel for enhanced mechanical protection and durability. Crimp termination type provides secure and reliable contacts.
It has zinc plated steel shells with standardized mounting hole size of 3.05mm. Operating temperature ranges from -55°C up to 125°C for demanding environments. Black polyester inserts comply with MIL-M-24519 insulation standards.
Compatible with military spec MIL-C-24308 connectors with the same insert layout. Designed for military, industrial, computer peripheral, and instrumentation applications.
Choose TE Connectivity AMPLIMITE 109 connectors for dependable performance in critical applications. Explore the Electronics & Electricals category at EnvMart to find compatible D-Sub Connectors and accessories to complete your assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -55°C to 125°C, making it suitable for harsh environments.
This connector features 15 female contacts, which are size 20.
It uses a crimp termination type, ensuring reliable electrical connections.
The housing is constructed from steel, providing enhanced mechanical protection.
Yes, it meets MIL-C-24308 military specifications, ensuring compatibility with other connectors of the same standard.
The mounting type for this model is cable, allowing for easy installation in various applications.
The connector features standardized mounting holes with a size of 3.05mm.
It is suitable for military, industrial, computer peripheral, and instrumentation applications.
The black polyester inserts comply with MIL-M-24519 standards for insulation.
The connector gender is female, designed to mate with compatible female connectors.
This connector is part of the AMPLIMITE series 109, which offers military-grade D-sub connectors.
The country of origin for this connector is India.
