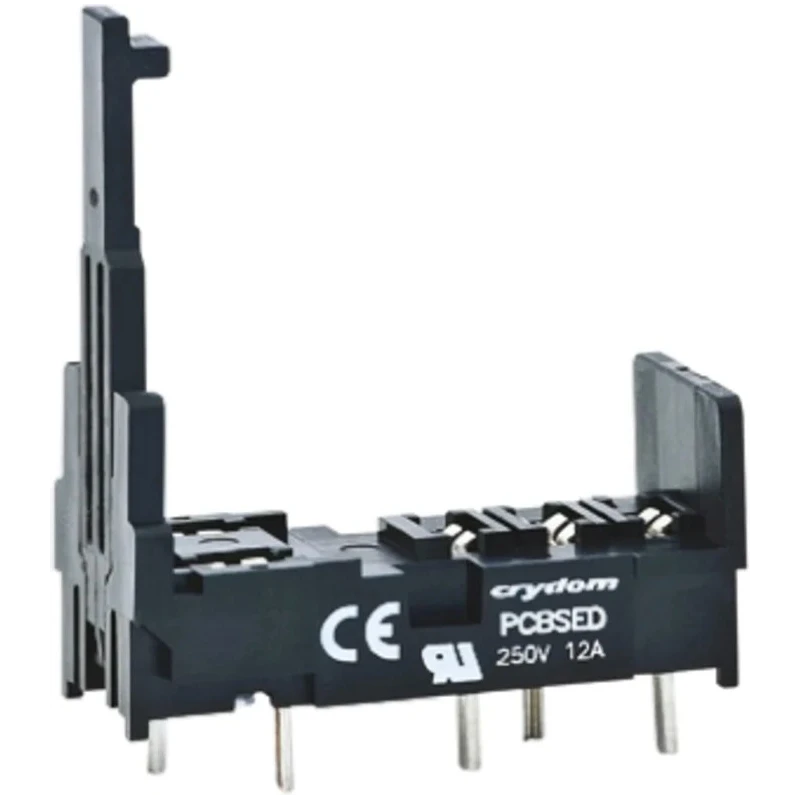

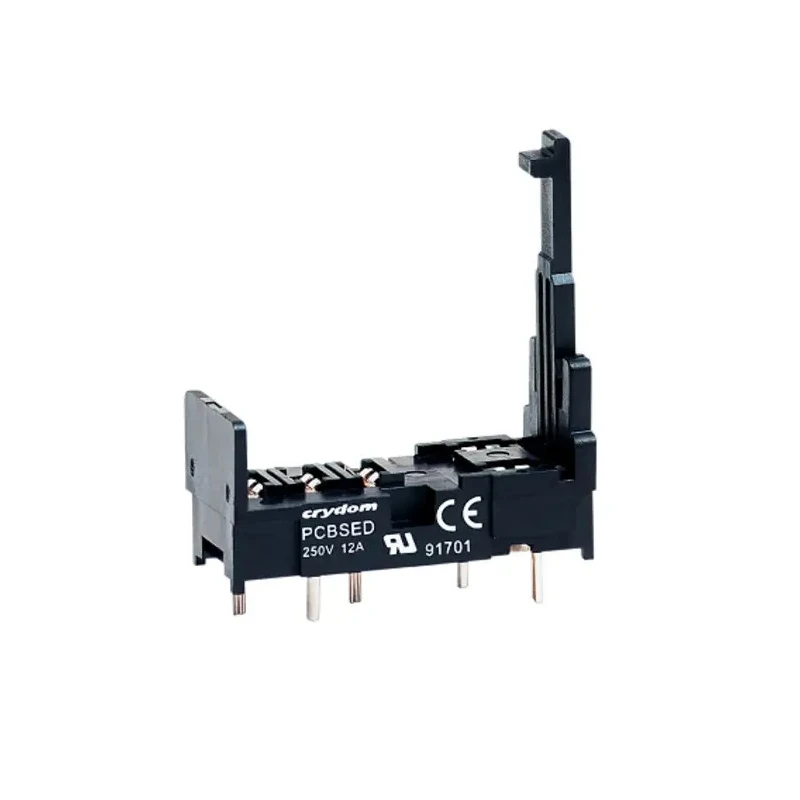

Crydom ED 5 Way 250V PCB Relay Socket, Screw Terminal, 12A Current Rating PCBSED
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Crydom |
| Current | 12A |
| Model | PCBSED |
| Mount Type | PCB |
| Series | ED |
| Terminal type | Screw |
| For Use With | ED Series |
| Standards/Approvals | RoHS |
| Number of Contacts | 5 |
Key Features
- Current rating of 12A suitable for heavy-duty applications.
- Robust thermoplastic housing resistant to impact and corrosion.
- Through-hole mounting ensures secure and vibration-proof PCB connection.
- Compact dimensions of 32.5 mm (L) x 14 mm (W) x 36.5 mm (H) optimize PCB space usage.
- Equipped with screw terminals for reliable electrical connections.
- IP10 rated for touch safety and protection against objects larger than 50 mm.
- Designed specifically for compatibility with Sensata | Crydom ED series relays.
- Complies with RoHS standards ensuring environmental and safety compliance.
Product Description
Crydom PCBSED 5 Way 250V PCB Relay Socket is a high-quality interface component designed for seamless integration with Sensata | Crydom ED series solid state relays. It offers a 12A current rating to handle heavy-duty electrical loads reliably.
The robust thermoplastic housing of the socket provides excellent resistance to impact and corrosion, making it suitable for harsh industrial environments. Its through-hole PCB mounting ensures a secure, vibration-proof installation that maintains integrity under operational stresses.
With compact dimensions of 32.5 mm length, 14 mm width, and 36.5 mm height, this relay socket maximizes available space on your PCB, supporting efficient design and assembly. The socket uses screw terminals to guarantee stable electrical connections while facilitating easy wiring during manufacturing or maintenance.
This relay socket features an IP10 protection rating, which means it is safe to handle and prevents unintended contact with live parts while protecting against objects larger than 50 mm. Its design compatibility is optimized for the Sensata | Crydom ED series SSRs, enhancing assembly ease and performance consistency.
The product meets RoHS standards, reflecting adherence to environmental regulations concerning hazardous substances. Its reliable performance and durable build make it ideal for demanding industrial applications, including plant automation, medical instrumentation, HVAC controls, and manufacturing process controls.
Current rating of 12A suitable for heavy-duty applications. Robust thermoplastic housing resistant to impact and corrosion. Through-hole PCB mounting for secure, vibration-proof connection. Compact dimensions maximize PCB space usage (32.5 x 14 x 36.5 mm).
Screw terminal type ensures dependable electrical connections. IP10 rated for touch safety and protection against objects >50 mm. Designed for use with Sensata | Crydom ED series SSR relays. RoHS compliant ensuring environmental and safety standards.
Ideal for plant automation, medical, and industrial control applications. Explore more Relay Sockets and related Crydom products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom PCBSED relay socket has a current rating of 12A, making it suitable for heavy-duty applications.
This model is rated for a voltage of 250V.
It utilizes through-hole PCB mounting, ensuring a secure and vibration-proof connection.
The dimensions of this relay socket are 32.5 mm in length, 14 mm in width, and 36.5 mm in height.
It is equipped with screw terminals, which provide reliable electrical connections.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations regarding hazardous substances.
This socket is specifically designed for compatibility with Sensata | Crydom ED series solid state relays.
The relay socket has an IP10 protection rating, which means it is safe to handle and protects against objects larger than 50 mm.
The country of origin for this relay socket is India.
This relay socket features 5 contacts.
It is ideal for applications in plant automation, medical instrumentation, HVAC controls, and manufacturing process controls.
The housing is made from robust thermoplastic, providing resistance to impact and corrosion.
