MEAN WELL IP67 5 Output Dimmable Constant Voltage LED Driver 48V 40.32W 0.48A 1 to 10 V PWM Resistance

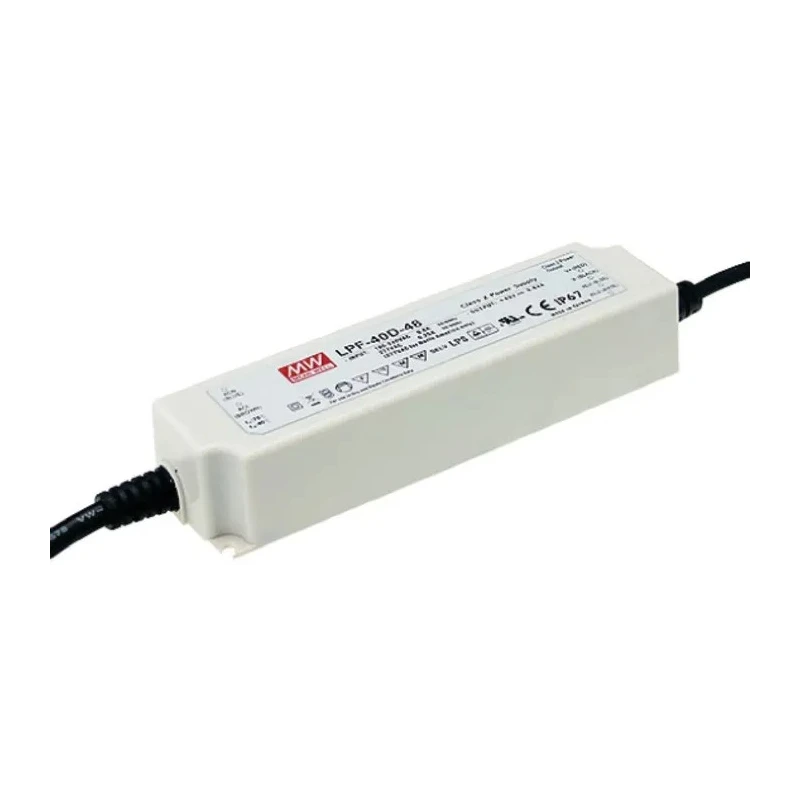

MEAN WELL LPF-40D-48 IP67 Dimmable Constant Voltage LED Driver provides robust and reliable power supply with 48 V output voltage, 40.32 W maximum output power, and 0.48 A driver current. The LED driver belongs to the LPF-40D series featuring IP67 rated full encapsulation to resist dust and water ingress, making it ideal for outdoor and harsh environmental conditions.

This driver supports universal AC input voltages of 90, 127, 230, and 305 VAC, enabling wide geographic flexibility. It is designed with an enclosed plastic casing that ensures safety and electrical isolation, and it cools efficiently through free air convection to maintain performance without additional cooling devices.

An integral part of this LED driver is the active power factor correction (PFC) that enhances the power efficiency and reliability. The unit supports a 3-in-1 dimming function allowing dimming via 1 to 10 V DC, PWM signal, or resistance, which provides versatile dimming controls for user interface compatibility.

This LED driver features comprehensive protection functions including short circuit, overload, over voltage, and over temperature safeguard, ensuring durability and operational safety. It complies with international safety and EMC standards such as CE, CSA, ENEC, SELV, TUV, UL, EN55015, and EN61000-3-2 Class C, making it suitable for industrial applications.

The product is particularly suited for LED lighting installations in commercial signage, architectural lighting, and other LED constant voltage applications where IP67 waterproofing and dimming versatility are required. Its build quality and standards compliance make it reliable for long-term usage in demanding environments.

The driver’s IP67 encapsulation safeguards against dust and water ingress for outdoor use. Universal AC input voltage supports operation in multiple regions. Constant voltage output with multiple isolated channels. Advanced dimming options with 1 to 10 V, PWM, or resistance dimming modes.

High efficiency with active PFC functionality. Robust protection mechanisms enhance product lifespan. Conforms to multiple international safety and EMC standards. Enclosed plastic housing with free air cooling for silent operation.

Wide applicability in industrial, commercial, and signage LED lighting projects. Explore the MEAN WELL product range for reliable, efficient, and industrial-grade LED Drivers tailored to diverse lighting environments at EnvMart.
