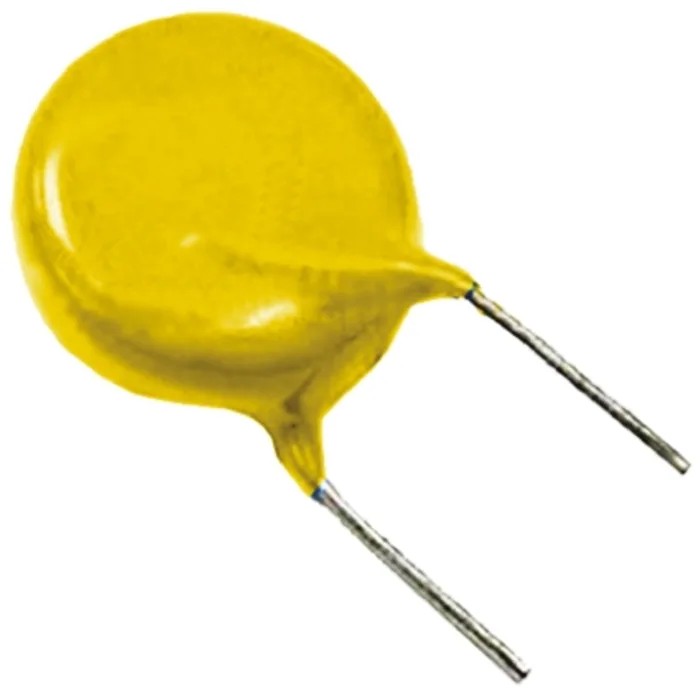

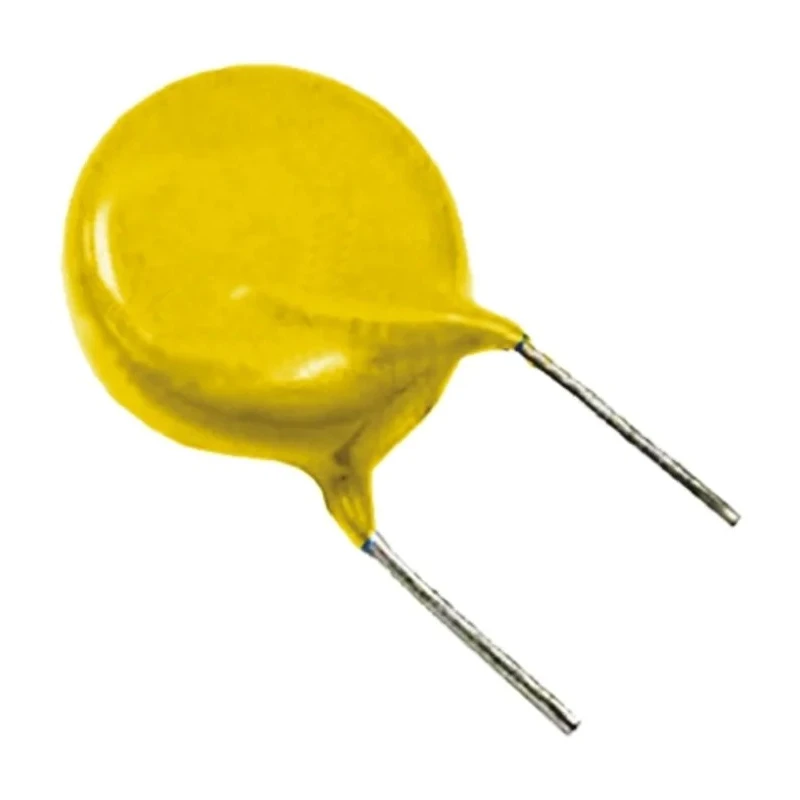

Vishay Single Layer Ceramic Capacitor 100 pF 500V AC ±10% Y5S Dielectric Through Hole Radial Lead VY1101K31Y5SQ6TV0

Vishay VY1101K31Y5SQ6TV0 is a high-performance single layer ceramic capacitor designed for demanding industrial and electronics applications. Featuring a capacitance of 100 pF and a voltage rating of 500V AC, this capacitor uses Y5S dielectric material offering excellent temperature stability up to 125°C. The capacitor is constructed with a silver-plated ceramic disc and flame retardant epoxy resin encapsulation compliant with UL 94 V-0 standards, ensuring safety and longevity.

This component has a through hole mount type with radial leads made from tinned copper clad steel of 0.6 mm diameter, providing secure mechanical and electrical connections. With a pin count of 2 and dimensions including an 11 mm height, 8 mm diameter, and 5 mm width, it is optimized for printed circuit board integration. It is suitable for use as X1/Y1 safety capacitors compliant with IEC 60384-14 standards.

The Vishay VY1101K31Y5SQ6TV0 capacitor demonstrates a dissipation factor of 2.5%, enabling efficient electrical performance with minimal energy loss. It is applicable for line by-pass, antenna coupling, and across-the-line filtering in electrical systems. The wide operational temperature range from -40°C to 125°C ensures robust performance in various industrial environments.

Approvals encompassing CSA, IEC 60384-14, RoHS compliance, and DIN EN 60384-14 reflect the capacitor's adherence to international safety and quality standards. Its high reliability and flame retardant encapsulation make it suitable for critical power and electronic component systems requiring durable and safe capacitors.

Capacitance of 100 pF suitable for precise electronic circuits. Voltage rating of 500V AC ensures high voltage tolerance. Dielectric material Y5S provides stable performance with maximum operating temperature of 125°C. Through hole radial lead mounting for easy PCB integration.

Compliance with IEC 60384-14 and other industry standards for safety and reliability. Silver-plated ceramic disc construction with flame retardant epoxy encapsulation. Pin count of 2 with tinned copper clad steel leads of 0.6 mm diameter.

Suitable for line bypass, antenna coupling, and across-the-line applications. Operating temperature range from -40°C to 125°C for versatile environments. High reliability in industrial and electronic component applications.

This capacitor is ideal for industrial electronics, HVAC controls, manufacturing machinery, and water treatment instrumentation where robust, high voltage and temperature-resilient capacitors are required. Discover a comprehensive range of passive components and Single Layer Ceramic Capacitors in the Electronics Components category at EnvMart.
