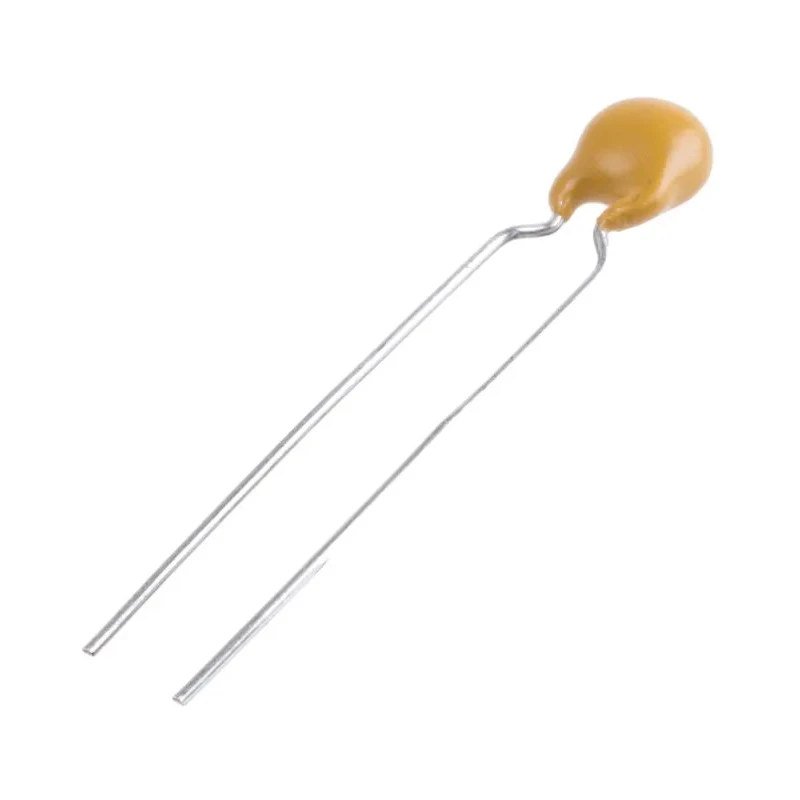

Vishay Single Layer Ceramic Capacitor 100 pF 1kV dc ±10% S3N Dielectric, Through Hole Radial 125 °C F101K25S3NN63J5R

Vishay F101K25S3NN63J5R Single Layer Ceramic Capacitor is a high quality electronic component designed for demanding industrial and electronic applications that require stable capacitance and reliable operation at high voltage levels.

This capacitor offers a capacitance of 100 pF with a voltage rating of 1 kV dc, ideal for use in power supplies, snubber circuits, and high frequency ballast circuits. It features an S3N dielectric material which provides excellent temperature stability and low losses across its operating temperature range from -30 °C to 125 °C.

The capacitor is constructed using a ceramic disc plated with silver on both sides to form the electrodes. The terminals are radial leads made from tinned copper with diameters of 0.6 mm or 0.8 mm and kinked to facilitate through-hole mounting onto printed circuit boards. The compact dimensions of 6.5 mm diameter and 40 mm height enable easy integration into various electronic assemblies.

This component complies with RoHS and EC environmental standards and belongs to Class I suppression class, ensuring low dissipation factor (0.2%) for minimal energy loss during operation. It is especially suitable for use in switched-mode power supplies (SMPS), snubber circuits, high voltage and high frequency electronic equipment where durability and high reliability are mandatory.

Rated for 125 °C maximum operating temperature allowing use in harsh environments. ±10% tolerance ensures precision capacitance characteristics for reliable circuit design. Through hole radial mount type eases manual and automated PCB assembly processes.

Compliant with industry environmental and quality standards such as RoHS and EC. Physical encapsulation with epoxy resin provides flame resistance to UL 94 V-0 standards. Suitable in commercial, industrial, and automotive electronic systems requiring ceramic capacitors.

Ideal in instrumentation, power electronics, and switching regulator applications. Standard pin count of 2 simplifies wiring in electronic circuitry.

Choose Vishay F101K25S3NN63J5R capacitor for assured performance in applications demanding stable ceramic capacitors with high voltage and temperature endurance. Browse more from Vishay electronic components on EnvMart for complementary parts and solutions.
