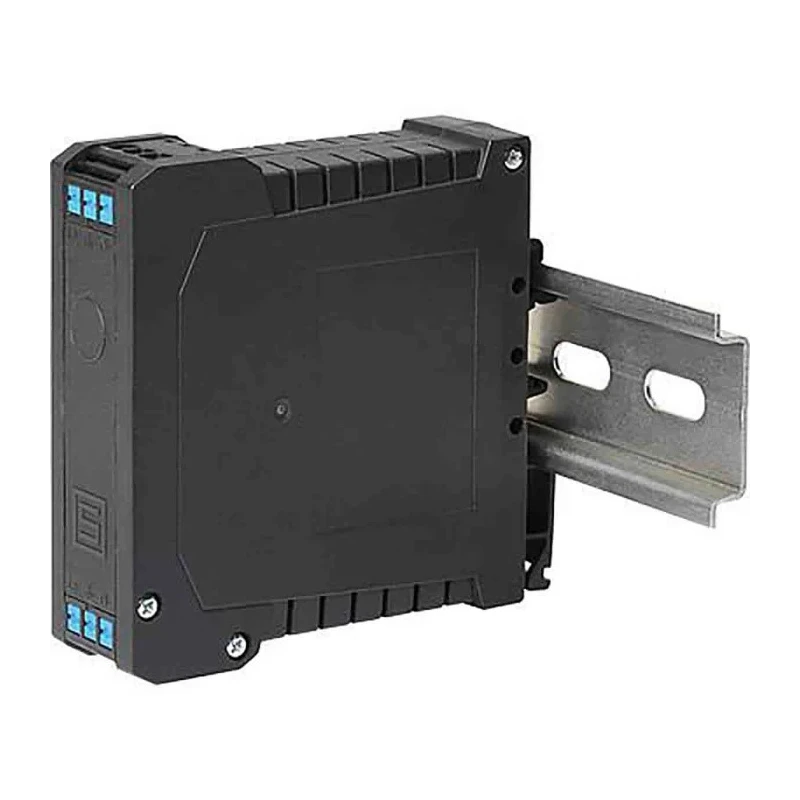

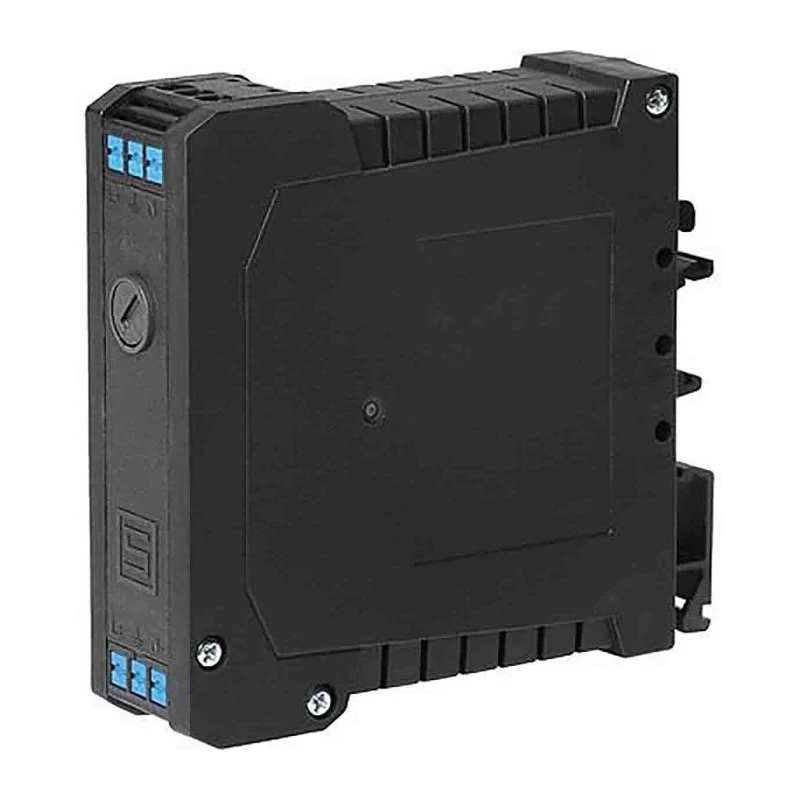

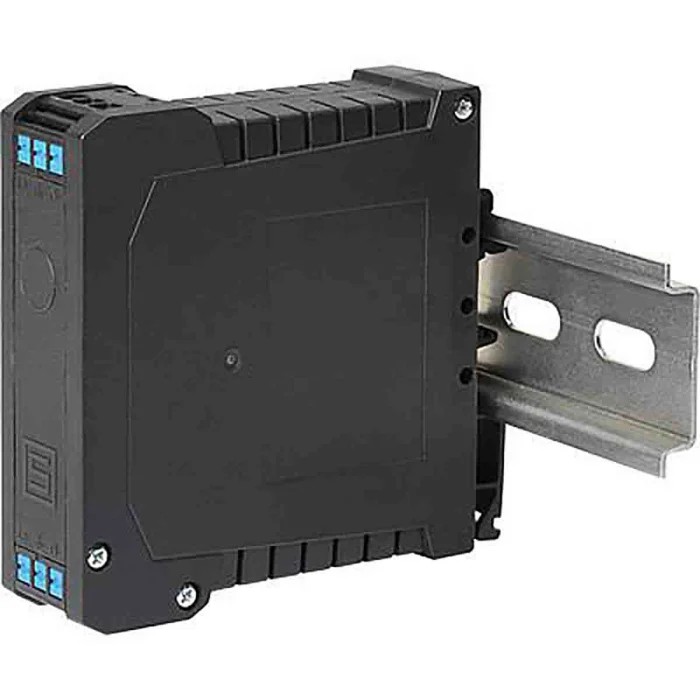

Schurter FPBB 10 A 240 V AC 48 V DC 50Hz 60 Hz DIN Rail Power Line Filter Cage Clamp Terminal 1 Phase 3-103-711

Free Delivery in India | Lowest Global Shipping Charges

Schurter FPBB 10 A 240 V AC 48 V DC 50Hz 60 Hz DIN Rail Power Line Filter Cage Clamp Terminal 1 Phase 3-103-711

Name: Schurter FPBB 10 A 240 V AC 48 V DC 50Hz 60 Hz DIN Rail Power Line Filter Cage Clamp Terminal 1 Phase 3-103-711
Brand: Schurter
SKU: 158174



Category Power Line Filter Brand Schurter Condition New

Specifications

Country of Origin	China
Brand	Schurter
Height	85mm
Length	25mm
Depth	89.5mm
Packaging	20 pieces
Mount Type	DIN Rail
Operating Frequency	50, 60Hz
Series	FPBB
Maximum Operating Temperature	100°C
Number Of Stages	2
Resistance	30mΩ
Minimum Operating Temperature	-40°C
Maximum Current	10A
Number of Phases	1
Leakage Current	500μA
Maximum Voltage	240, 48V ac
Standards/Approvals	RoHS, UL, VDE, IEC 61140
Termination Style	Cage Clamp Terminal
Power Loss	2.64W

Key Features

This is a single-phase, 2-stage power line filter offering effective EMI suppression.
The filter supports broadband attenuation to protect sensitive equipment from interference voltage.
Quick wiring is enabled by cage clamp terminals for reliable connections.
Designed with overcurrent and overvoltage protection including fuse holder and thermal circuit breaker.
Robust construction with compliance to RoHS, UL, VDE, and IEC 61140 standards.
Operates efficiently within -40°C to 100°C temperature range.
Low leakage current of 500 μA ensures minimal power loss and high operational efficiency.
This package contains 20 pieces, ideal for bulk installation and replacement.

Product Description

Schurter 3-103-711 Power Line Filter is a high-quality EMI filter designed to protect electrical and electronic equipment from interference voltage. Operating at a maximum current of 10 A with an AC voltage of 240 V and DC voltage of 48 V, this filter is ideally suited for DIN rail mounting in control cabinets.

The filter features a 2-stage configuration, providing broadband attenuation efficiently suppressing interference and maintaining signal integrity. Quick wiring is facilitated by cage clamp terminals, which ensure secure and reliable connections without complexity.

Built with robust protection elements such as fuse holders and thermal circuit breakers, the device safeguards against overcurrent and overvoltage conditions, enhancing equipment safety and operational reliability.

Measuring a compact 25 mm in length, 85 mm in height, and 89.5 mm in depth, this power line filter integrates seamlessly into electrical panels where space can be limited.

Designed to operate reliably across a wide temperature range from -40°C up to 100°C, this filter holds certifications including RoHS, UL, VDE, and IEC 61140, making it compliant for industrial and commercial applications.

This product is well-suited for use in industrial machinery, electric switch and control cabinets, and other environments requiring reliable EMI suppression and power line protection.

This is a single-phase, 2-stage power line filter offering effective EMI suppression. The filter supports broadband attenuation to protect sensitive equipment from interference voltage. Quick wiring is enabled by cage clamp terminals for reliable connections.

Designed with overcurrent and overvoltage protection including fuse holder and thermal circuit breaker. Robust construction with compliance to RoHS, UL, VDE, and IEC 61140 standards. Operates efficiently within -40°C to 100°C temperature range.

Compact dimensions: 25 mm length, 85 mm height, and 89.5 mm depth for space-saving installation. Low leakage current of 500 μA ensures minimal power loss and high operational efficiency. This package contains 20 pieces for bulk deployment.
