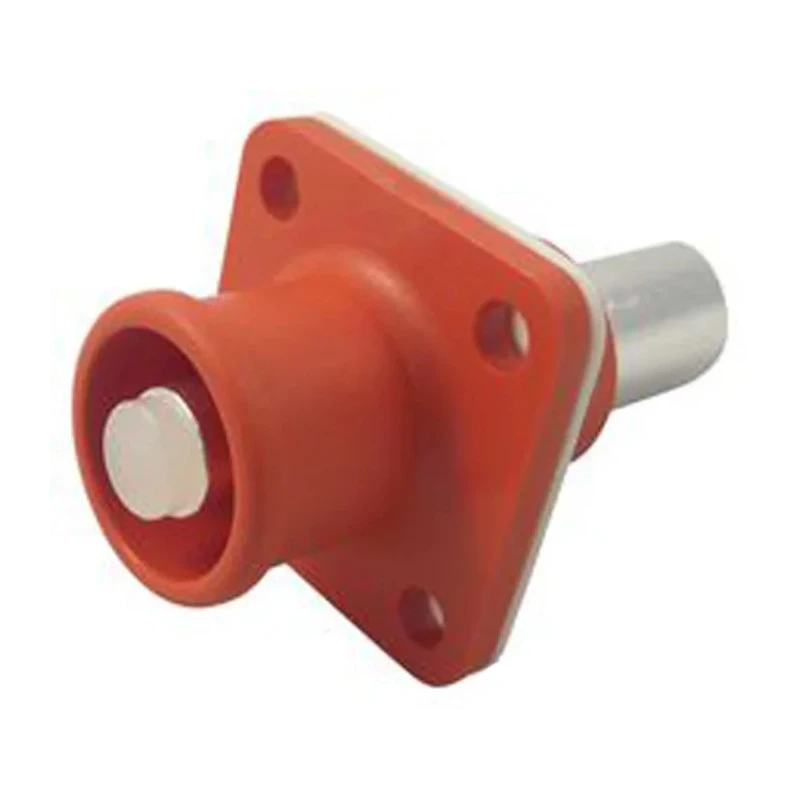

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 100A 1000V Panel Mount Crimp SLPRA16CPSR / C10-730187-230
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Red |
| Orientation | Straight |
| Current | 100A |
| Height | 27mm |
| Model | SLPRA16CPSR / C10-730187-230 |
| Depth | 40.7mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 27mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 5.7mm |
| Number of Rows | 1 |
| Wire size | 16mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Designed for 100A continuous current with a 1000V operating voltage rating.
- Features panel mount design with crimp termination for a secure connection.
- Constructed with copper alloy contacts and thermoplastic housing for durability.
- Rated IP67 protection and UL 94-V0 flammability for harsh environments.
- Operating temperature range from -40°C to 125°C for wide application use.
- Includes spring locking and touch proof design to ensure safety and reliability.
- Connector has one row and one contact with 16mm² wire size compatibility.
- Suitable for use with SurLok 1-Position Plug in electric vehicle and rail mass transit systems.
Product Description
Amphenol Industrial SLPRA16CPSR / C10-730187-230 EV Connector Female 100A is part of the SURLOK PLUS series, engineered for robust power connections in demanding industrial and automotive environments. It is designed to support high current applications with a 100A current rating and a nominal operating voltage of 1000V, providing a reliable and durable interface for electric vehicle and renewable energy applications.
This connector features a panel mount type with crimp termination for easy and secure installation. The connector utilizes RADSOK technology to ensure a high tensile strength electrical connection coupled with a large, highly conductive contact surface. Constructed with copper alloy contacts paired with a thermoplastic housing, it achieves long life and excellent environmental resistance.
The design incorporates touch proof safety features and a spring locking mechanism, preventing accidental disconnection and mismating. It holds an IP67 rating guaranteeing full protection against dust ingress and water immersion, and complies with UL 94-V0 flammability standards, suitable for harsh operational environments.
Its operating temperature range from -40°C to 125°C enables usage in heavy equipment, rail mass transit, medical devices, battery management systems, and process control sectors. The connector has a single row and contact configuration, compatible with 16mm² wire size and mates with SurLok 1-Position Plugs through its 5.7mm pin diameter. Its compact size (27mm width and height, 40.7mm depth) contributes to efficient space utilization in panel installations.
100A continuous current, 1000V operating voltage rating. Panel mount flange with crimp termination. Copper alloy contacts and thermoplastic housing materials. IP67 dust and water ingress protection rating. UL 94-V0 flammability rating for safety compliance.
Operating temperature range from -40°C to 125°C. Touch proof and spring locking design features. Single row, one contact; compatible with 16mm² wire size. Red color, 5.7mm pin diameter for matching plugs. Applications include EV, rail mass transit, medical, BMS, and process control.
The Amphenol SURLOK PLUS RADSOK connector is optimized for electric vehicle charging and battery management applications, as well as rail transit and industrial control, providing a reliable, serviceable, and secure female connector solution compatible with SurLok systems. The Series supports sustainability solutions aligned with renewable energy applications.
Explore the Electronics & Electrical category for more Amphenol Industrial connectors and enhance your system with trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a continuous current of 100A.
It has a nominal operating voltage rating of 1000V.
The connector features a panel mount design.
It is constructed with copper alloy contacts and a thermoplastic housing.
The connector has an IP67 rating, providing protection against dust and water immersion.
It operates within a temperature range of -40°C to 125°C.
It utilizes crimp termination for secure connections.
The pin diameter is 5.7mm, compatible with SurLok 1-Position Plugs.
This model features one contact in a single row configuration.
It includes touch proof safety features and a spring locking mechanism to prevent accidental disconnection.
It is suitable for use in electric vehicles, rail mass transit, medical devices, and battery management systems.
It complies with UL 94-V0 flammability standards.
