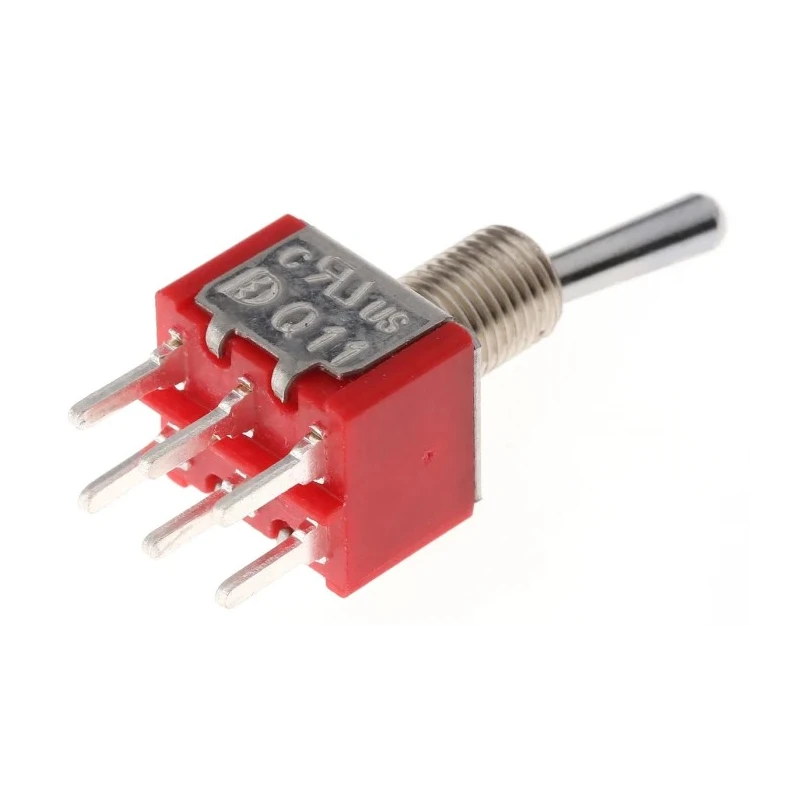

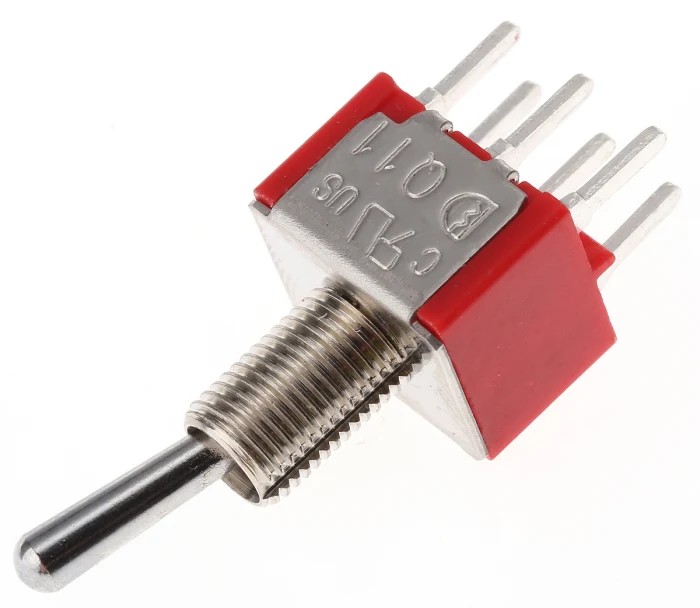

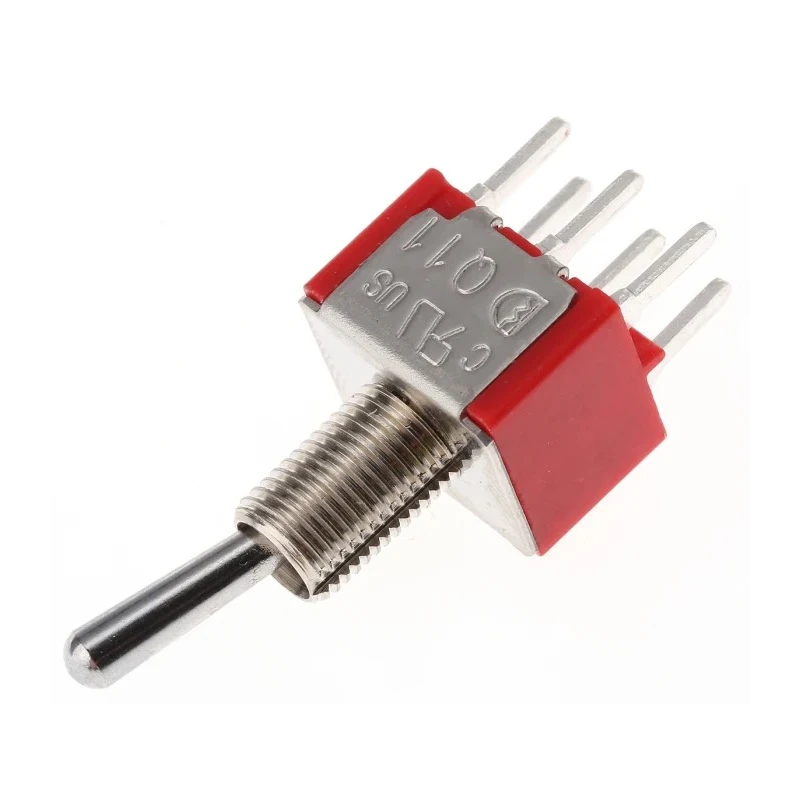

RS PRO PCB Mount Toggle Switch ON-(ON) DPDT Through Hole Terminal 26 V dc 112 V ac 734-7034
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 734-7034 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS & Lead Free |
| Switch Operation | ON-(ON) |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
| RS PRO Toggle Switch, Panel Mount, On-(On), DPDT, Solder TerminalBrand | RS PRO |
Key Features
- DPDT contact configuration for dual circuit control.
- ON-(ON) switch operation for reliable toggle action.
- Mount type is PCB with through hole terminal for stable mounting.
- Switch contact current rated at 5A for moderate load applications.
- Chrome plated brass actuator with 10.41 mm length for durability.
- Operates between -30°C and 85°C for wide temperature ranges.
- Electrical ratings include 26 V dc and 112 V ac contact voltage.
- Mechanical life rated for 40,000 cycles ensuring long service life.
Product Description
RS PRO 734-7034 PCB Mount Toggle Switch ON-(ON) DPDT is designed for robust electrical switching applications within industrial, automation, and electronics sectors. It features a dual pole double throw (DPDT) contact configuration enabling dual circuit control and is engineered for PCB mounting with a through hole terminal type to ensure firm attachment and electrical conductivity.
The switch can safely handle a contact current of 5A and supports both DC and AC voltages rated at 26 V dc and 112 V ac respectively. The actuator is made of chrome plated brass, measuring 10.41 mm in length, providing durability and ease of use in toggle operations.
Operating temperature ranges from -30°C to 85°C expand its usability in various environmental conditions. Mechanically, it endures up to 40,000 cycles, promising extended reliability. Compliance with RoHS and lead-free standards highlights its environmental friendliness and safety for electronic equipment manufacturing.
This miniature RS series Toggle Switch offers low contact resistance and high insulation resistance of at least 1000 MΩ along with a minimum dielectric strength of 1000 Vrms, suitable for demanding control applications in industrial automation, test equipment, HVAC systems, and general electronic assemblies.
DPDT contact configuration for dual circuit control. ON-(ON) switch action provides stable toggling. PCB mount with through hole terminals for secure fitting. Rated for 5A contact current suitable for medium load switching.
Chrome plated brass actuator resists wear and corrosion. Wide operating temperature range from -30°C to 85°C. Mechanical life expectancy up to 40,000 switch cycles. Environmentally compliant RoHS and lead free certification.
This switch is ideal for use in industrial automation control panels, electronic equipment builds, and PCB-based embedded systems, offering reliable and high-quality performance for electrical and electronic switching needs.
Explore more electronics and electrical components in the EnvMart catalog for comprehensive industrial solutions and high-standard quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a dual pole double throw (DPDT) contact configuration, allowing for dual circuit control.
It is rated for a contact current of 5A and can handle DC voltage up to 26 V and AC voltage up to 112 V.
This model operates within a temperature range of -30°C to 85°C, making it suitable for various environmental conditions.
The mechanical life of this switch is rated for up to 40,000 cycles, ensuring extended reliability in use.
It is designed for PCB mounting with a through hole terminal type, ensuring secure attachment and electrical conductivity.
The actuator is made of chrome plated brass, which provides durability and resistance to wear and corrosion.
The actuator length is 10.41 mm, facilitating ease of use during toggle operations.
Yes, it complies with RoHS and lead-free standards, highlighting its environmental friendliness.
The required panel cutout size for this switch is 6.35 mm.
It is suitable for use in industrial automation control panels, electronic equipment builds, and PCB-based embedded systems.
It has a high insulation resistance of at least 1000 MΩ, making it suitable for demanding control applications.
The switch has a minimum dielectric strength of 1000 Vrms, ensuring reliable performance in electrical applications.
