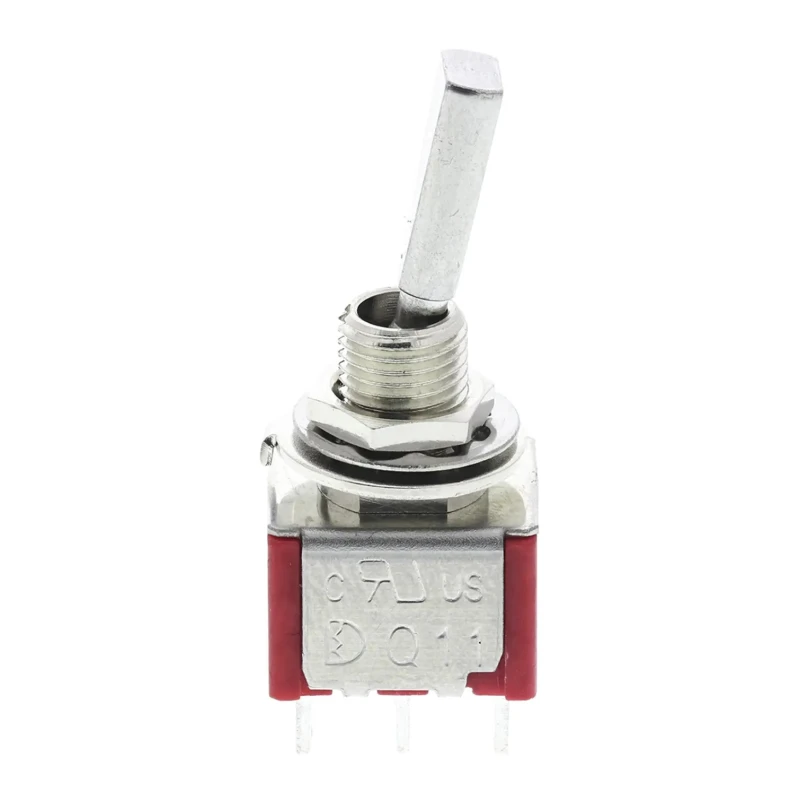

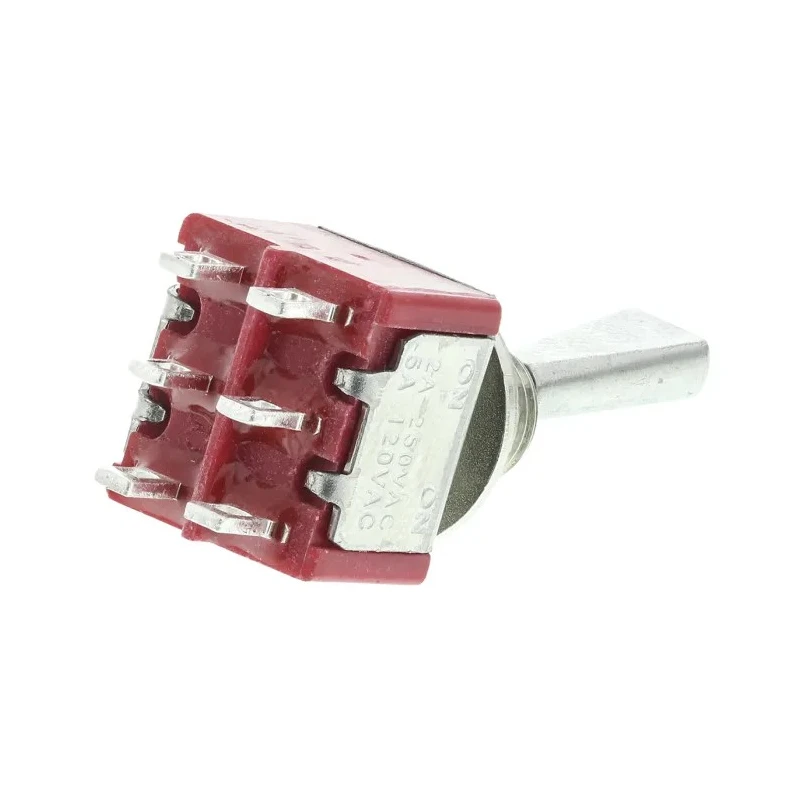

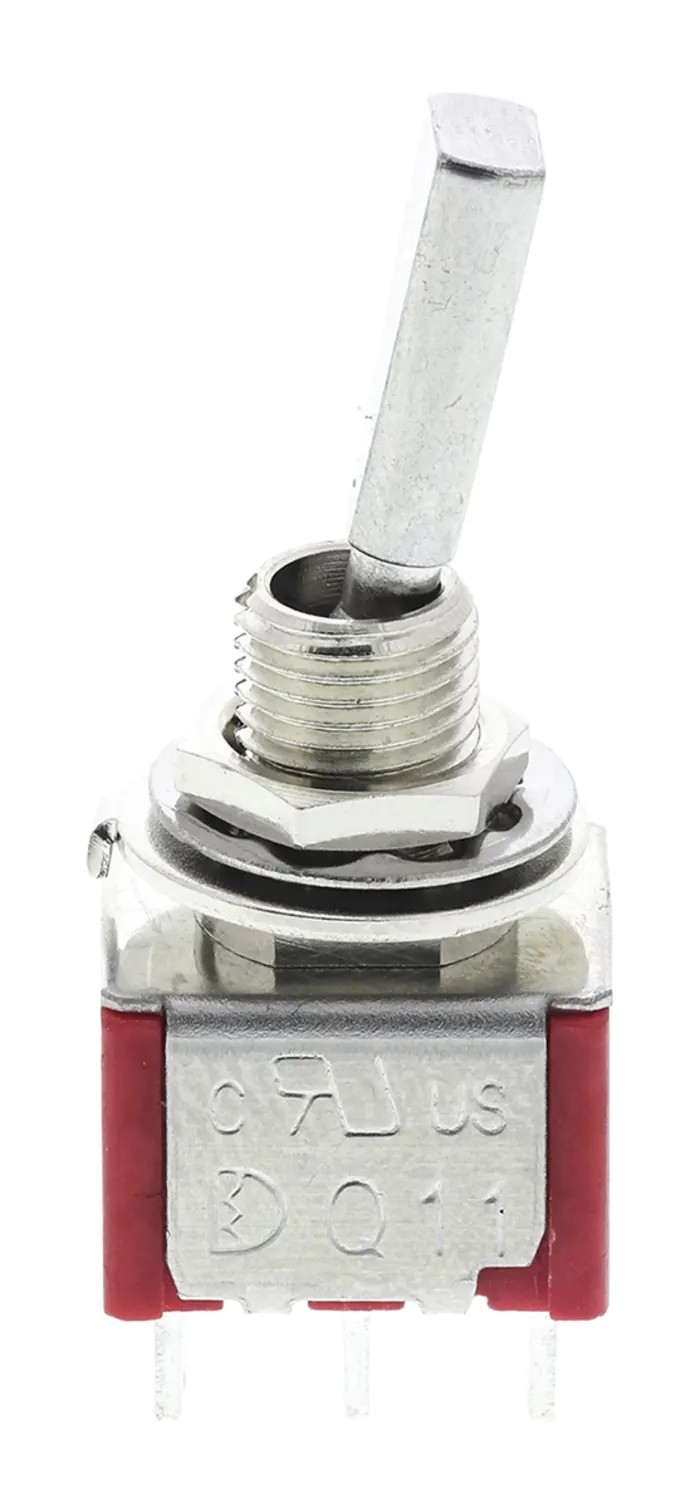

RS PRO Toggle Switch Panel Mount On-On DPDT 26 V dc 112 V ac Solder Terminal 7347022P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 7347022P |
| Mount Type | Panel |
| Series | 1MD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS, CSA, CE |
| Switch Operation | On-On |
| Actuator Length | 12.3mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- The switch features a double pole double throw (DPDT) contact configuration.
- Operates with On-On switch operation for dual circuit control.
- Rated for a switch contact current of 5 amperes.
- Mount type is panel mount with solder terminal connections for easy installation.
- The actuator is made of chrome plated brass and measures 12.3 mm in length.
- Panel cutout size required is 6.35 mm for proper mounting.
- Meets industry standards including UL, RoHS, CSA, and CE approvals.
- Designed for operating temperatures from -30°C to 85°C for versatile environmental use.
Product Description
RS PRO 7347022P is a panel mount toggle switch designed for electrical and automation applications requiring reliable double pole double throw (DPDT) switching functionality. This miniature toggle switch supports On-On operation with solder terminals, providing secure and stable circuit connections.
Rated at 26 V dc and 112 V ac contact voltage, the switch can handle a contact current of up to 5A, making it suitable for a variety of control and switching uses in industrial and commercial electronic devices.
The actuator length of 12.3 mm is manufactured from chrome plated brass to ensure robustness and corrosion resistance. Installation requires a panel cutout of 6.35 mm, facilitating easy integration within electrical panels.
This toggle switch complies with major industry standards such as UL, RoHS, CSA, and CE, ensuring compliance with safety and environmental regulations. Designed for a mechanical life of 40,000 cycles, it provides long-lasting performance even in demanding operational environments with temperatures ranging from -30°C to 85°C.
Typical applications include industrial control panels, automation systems, and electrical device switching where precise On-On DPDT switching is required. Its compact size and solder terminal mounting make it ideal for panel integration in electronic and electrical installations.
The switch has a DPDT contact configuration enabling versatile circuit control. On-On switch operation for simultaneous double throw function. Solder terminals offer reliable and secure electrical connections. Chrome plated brass actuator ensures durability and corrosion resistance.
UL, RoHS, CSA, and CE standards compliance guarantees safety and environmental friendliness. Operational temperature range from -30°C to 85°C supports harsh environments. Mechanical life of 40,000 cycles supports long-term use in industrial settings.
Explore more high-quality Toggle Switches and related components in the Electronics & Electricals category at EnvMart for your industrial, automation, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit control.
It is rated for a contact DC voltage of 26 V and an AC voltage of 112 V.
The switch can handle a contact current of up to 5 amperes.
The installation requires a panel cutout size of 6.35 mm for proper mounting.
The actuator is made of chrome plated brass and measures 12.3 mm in length.
It is designed to operate within a temperature range of -30°C to 85°C.
The mechanical life of this switch is rated for 40,000 cycles, supporting long-term use.
This model features solder terminals for secure and stable electrical connections.
It meets several industry standards including UL, RoHS, CSA, and CE approvals.
It supports On-On switch operation, allowing for dual circuit control.
Typical applications include industrial control panels, automation systems, and electrical device switching.
The mount type for this model is panel mount, facilitating easy integration into electrical panels.
