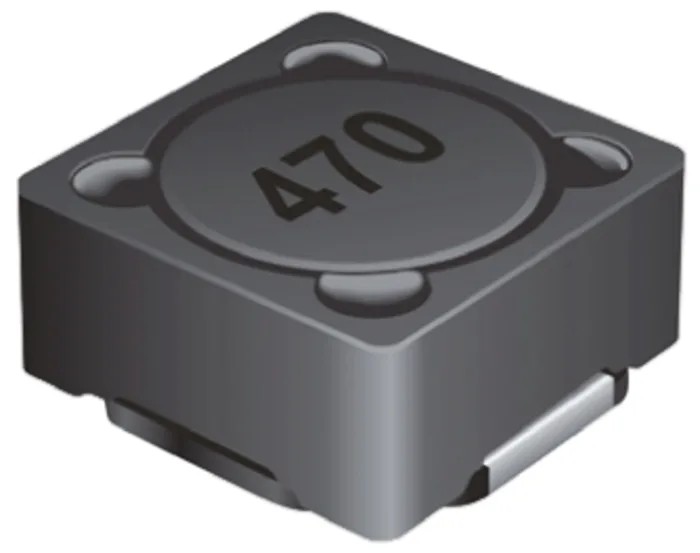

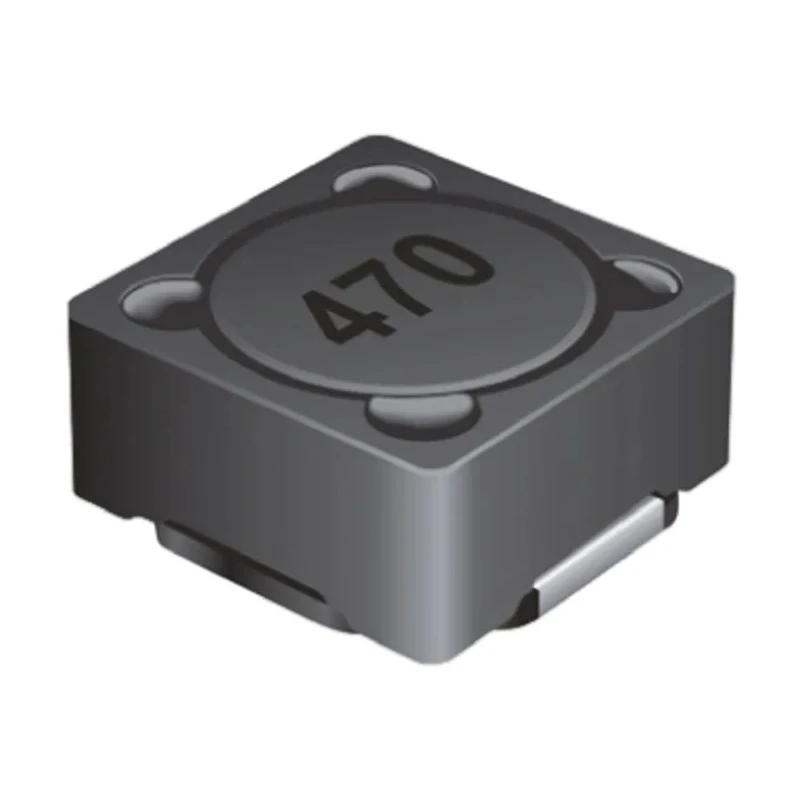

Bourns 1260 Shielded Wirewound Surface Mount Inductor with Ferrite Core 15 μH ±20% 5A IDC Q25 SRR1260
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6mm |
| Length | 12.5mm |
| Model | SRR1260 |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | SRR1260 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 1260 |
| Maximum DC Current | 5A |
| Maximum DC Resistance | 27mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 17.6MHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded wirewound inductor with ferrite core construction.
- Low profile height of 6mm suits compact PCB designs.
- Operates reliably between -40°C and 125°C.
- Maximum DC resistance of 27mΩ reduces power loss.
- Maximum self-resonant frequency of 17.6 MHz ensures effective high frequency performance.
- Surface mount termination style simplifies automated assembly.
- RoHS compliant for environmental safety.
- Packaged on reel for efficient production line feeding.
Product Description
Bourns SRR1260 Shielded Wirewound Surface Mount Inductor features a ferrite core with magnetically shielded wirewound construction, delivering an inductance of 15 μH ±20% and supporting a maximum DC current of 5 A. Designed for compactness, this Surface Mount Inductor has a low height of 6mm and dimensions of 12.5mm length and depth, suitable for use in high-frequency electronic circuits.
The inductor demonstrates high reliability for temperatures ranging from -40°C to 125°C and exhibits a maximum DC resistance of 27 milliohms, contributing to improved efficiency. It supports a maximum self-resonant frequency of 17.6 MHz and provides a minimum quality factor of 25, making it ideal for applications in power supplies, DC/DC converters, and portable communication equipment.
Its surface mount termination style allows for easy automated placement on printed circuit boards, and the product is supplied on a reel packaging format to support efficient manufacturing processes. The device complies with RoHS standards, ensuring environmentally responsible manufacturing and use.
This series is widely used in industrial, communication, consumer electronics, and automotive power management applications where high current ratings and compact size are critical. The magnetic shielding minimizes electromagnetic interference, enhancing circuit stability in dense electronic assemblies.
Magnetically shielded wirewound inductor with ferrite core construction. Low profile height of 6mm suits compact PCB designs. Operates reliably between -40°C and 125°C. Maximum DC resistance of 27mΩ reduces power loss. Maximum self-resonant frequency of 17.6 MHz ensures effective high frequency performance.
Surface mount termination style simplifies automated assembly. RoHS compliant for environmental safety. Packaged on reel for efficient production line feeding. Explore more electronic components and inductors in EnvMart’s comprehensive catalog curated for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRR1260 inductor has an inductance value of 15 μH with a tolerance of ±20%.
This model supports a maximum DC current of 5 A.
The SRR1260 has a height of 6 mm, and both its length and depth are 12.5 mm.
It operates reliably between -40°C and 125°C.
The maximum DC resistance of this inductor is 27 mΩ.
The maximum self-resonant frequency is 17.6 MHz.
It features a surface mount termination style, simplifying automated assembly.
Yes, the Bourns SRR1260 is RoHS compliant, ensuring environmental safety.
It is packaged on a reel, which supports efficient production line feeding.
The inductor features a ferrite core material.
This model provides a minimum quality factor of 25.
It is suitable for applications in power supplies, DC/DC converters, and portable communication equipment.
