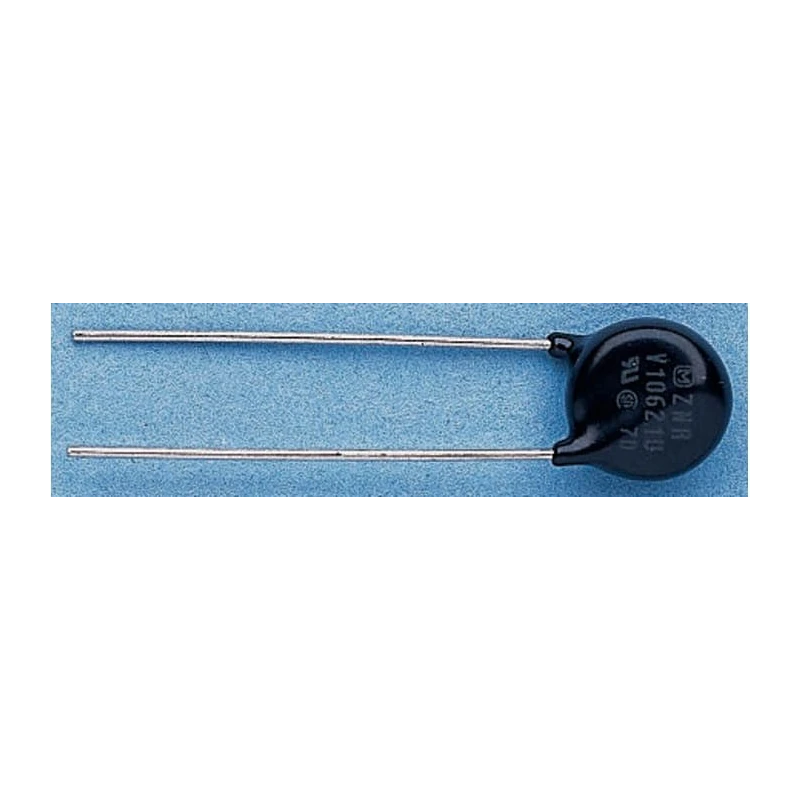

Panasonic Surge Absorber, Metal Oxide Varistor, 3.75 nF Capacitance, 5 A Clamping Current, 1650 V Clamping ERZV10D560

Panasonic ERZV10D560 is a high-performance surge absorber utilizing metal oxide varistor technology, delivering robust protection against voltage surges in electronic and industrial equipment. Featuring a capacitance of 3.75 nF and a clamping current of 5 A, this varistor provides efficient transient voltage suppression while maintaining a compact 11.5 mm diameter and 34.5 mm length form factor.

The device operates reliably across a temperature range from -40°C to 85°C, making it suitable for harsh industrial and electronic environments. Its radial taping packaging enhances insertion efficiency during manufacturing or repair processes.

Designed to handle energy surges up to 25 Joules, Panasonic's ERZV10D560 offers dependable over-voltage protection, complying with international standards such as IEC60950-1 Annex.Q, VDE IEC61051-1, and UL1449. With a clamping voltage of 1650 V and varistor voltage of 56 V, it safeguards sensitive components from damaging spikes.

The crimped lead termination style and a lead pitch of 7.5 mm enable secure and easy soldering to circuit boards. Additional features include a maximum AC voltage of 11 V and maximum DC voltage of 14 V, optimizing the varistor's application scope for power and electronic circuits.

Manufactured in Japan, this varistor reflects Panasonic's commitment to quality and precision engineering. It is ideal for use in industrial electronics, power supplies, and surge protection devices, safeguarding equipment from transient voltage events effectively.

Varistor voltage rated at 56 V for effective surge protection. Compact size with 11.5 mm diameter and 34.5 mm length. Radial taping packaging facilitates easy insertion into machinery. Wide operating temperature range from -40°C to 85°C for industrial reliability.

Energy rating of 25J supports large surge current handling. Crimped lead termination style for secure electrical connection. Meets multiple standards including IEC60950-1 Annex.Q and UL1449. Maximum AC voltage of 11 V and DC voltage of 14 V ensure versatile application.

Lead pitch spacing of 7.5 mm and 2-pin count for straightforward installation. Manufactured in Japan, ensuring high quality and durability.

This Panasonic ERZV10D560 surge absorber is categorized under Electronics & Electricals, Electronics Components, Varistor, and is well-suited for industrial, manufacturing, and electronic device applications requiring reliable overvoltage protection. Explore more Varistors and surge protection components on EnvMart to secure your electronic designs and systems.
