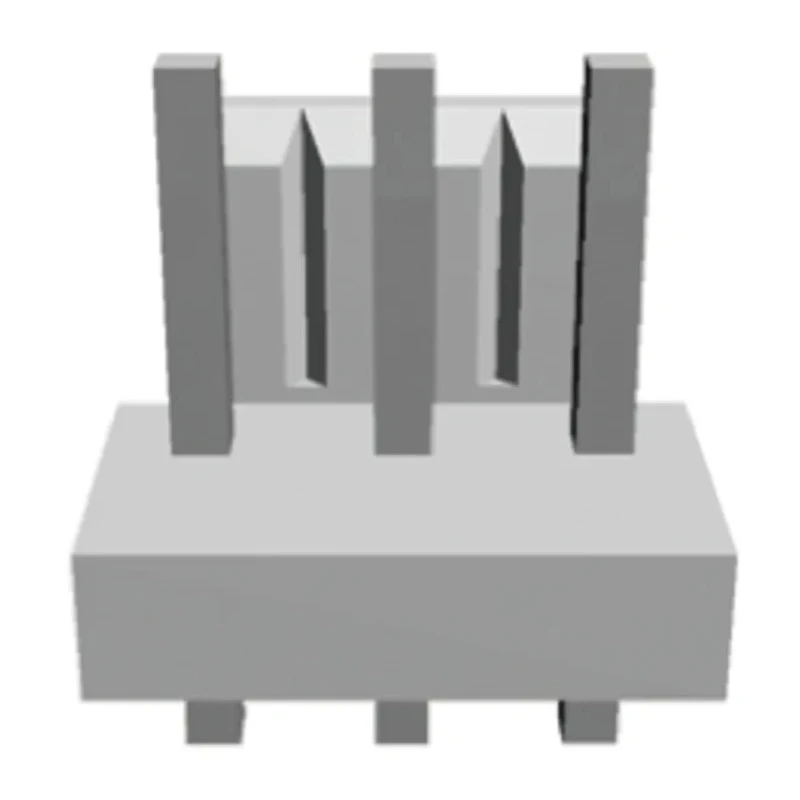

TE Connectivity Economy Power Series Straight Through Hole PCB Header, 3 Contacts, 3.96 mm Pitch, 1 Row, Shrouded 1-1123723-3

TE Connectivity 1-1123723-3 Economy Power Series Straight Through Hole PCB Header offers a robust power interconnection solution with 3 male contacts spaced at a 3.96 mm pitch in one row. This shrouded PCB header is designed to ensure positive and secure wire-to-board connections through an audible click latching mechanism, enhancing reliability in electrical assemblies.

The housing constructed from fibreglass reinforced polybutylene terephthalate provides high mechanical strength and thermal stability, suitable for demanding industrial environments. The brass contacts plated with tin assure excellent conductivity and corrosion resistance; the tail pin length of 3.7 mm is optimized for solder termination on PCBs using through-hole mounting.

This connector is rated for continuous operation up to 8 amperes at 250 volts AC, making it ideal for power circuits requiring reliable current carrying capacity. It operates reliably under temperatures from -65°C to 105°C, making it suitable for varied environmental conditions encountered in industrial, commercial, and consumer electronic equipment.

These economy power PCB headers are stackable end-to-end and can be used across applications including household appliances, lighting systems, industrial machinery, HVAC equipment, and vending machines. The shrouded design also provides added protection to contacts and minimizes incorrect mating.

This PCB header features a 3.96 mm pitch and 3 contacts in 1 row. Current rating is 8 amperes with a voltage rating of 250 volts. Constructed with brass contacts and tin plating for secure electrical connections. Fibreglass reinforced polybutylene terephthalate housing ensures durability and heat resistance.

Shrouded and straight orientation design with a 3.7 mm tail pin length for through-hole mounting. Temperature rated from -65°C to 105°C for versatile industrial use. Includes an audible positive latching mechanism for secure mating.

Applications include household appliances, commercial and industrial machinery, lighting, HVAC, and vending equipment.

This TE Connectivity PCB Header series offers reliability and ease of use in power circuit interconnections, supporting effective assembly in electronics manufacturing and maintenance operations.
