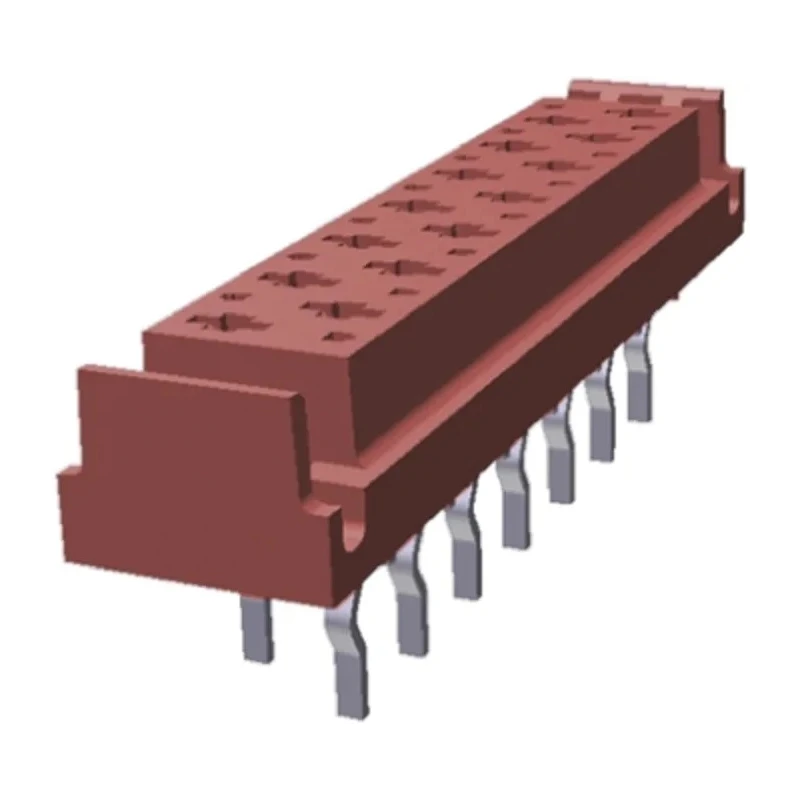

TE Connectivity Micro-MaTch Industrial Series Straight Through Hole 14-Contact 2 Row 1.27 mm Pitch PCB Socket 1-338068-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro-MaTch Industrial Series Straight Through Hole 14-Contact 2 Row 1.27 mm Pitch PCB Socket 1-338068-4

Name: TE Connectivity Micro-MaTch Industrial Series Straight Through Hole 14-Contact 2 Row 1.27 mm Pitch PCB Socket 1-338068-4
Brand: TE Connectivity
SKU: 128285
Price: 1.73 USD
Availability: InStock



Category PCB Socket Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	TE Connectivity
Orientation	Straight
Current	1.5A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	Micro-MaTch Industrial
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Connector
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Tin, Nickel Plated
Number of Contacts	14
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Integrates Micro-MaTch spring contact system for reliable electrical connection.
Features solder termination with indented solder legs to enhance retention.
Constructed with Liquid Crystal Polymer housing for durability and heat resistance.
Supports operating temperatures ranging from -40°C to 125°C.
Rated for 1.5 A current and 100 V voltage for low-power electronic applications.
Provides gas-tight connections that resist fretting corrosion due to vibration and thermal expansion.
Female contact gender with bronze contacts plated in tin and nickel for corrosion resistance.
Suitable for board-to-board interconnection in industrial and electronic equipment.

Product Description

TE Connectivity 1-338068-4 is a Micro-MaTch Industrial Series PCB Socket characterized by a straight through hole mounting design, featuring 14 female contacts arranged in 2 rows with a 1.27 mm pitch. This component is designed for reliable board-to-board connection in industrial and electronic applications with a current rating of 1.5 A and operating voltage of 100 V.

The socket is constructed from Liquid Crystal Polymer housing material, providing excellent thermal stability and durability. Its contacts are made of bronze, plated with tin and nickel, ensuring high corrosion resistance and long service life.

Incorporating the innovative Micro-MaTch contact spring system, this socket effectively prevents fretting corrosion common in tin-plated connectors by absorbing vibration and thermal expansion movements. The indented solder legs improve solder joint retention, making it suitable for mass production soldering processes.

Operating temperature ranges from -40°C to 125°C, making it versatile for various industrial environments including production and material handling equipment, control units, robotics, automotive systems such as car radios and dashboard systems, base stations, set-top boxes, and audio equipment.

This device offers a gas-tight connection ensuring stable electrical performance over time and supports both wire-to-board and board-to-board interconnections. It is an ideal choice for applications requiring compact, reliable, and corrosion-resistant PCB socket solutions.

Integrates Micro-MaTch contact spring system for vibration resistance. Solder termination with indented legs enhances connection retention. Liquid Crystal Polymer housing offers excellent durability. Rated current is 1.5 A with 100 V voltage capacity.

Operating temperatures from -40°C to 125°C support harsh environments. Bronze contacts plated with tin and nickel provide corrosion resistance. Female contact gender for board-to-board system integration. Applications include industrial machines, robotics, automotive, and audio electronics.

Supports gas-tight connections to prevent fretting corrosion. Explore more products in the PCB Socket category on EnvMart to find compatible connectors and electronics components from leading brands.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This PCB socket is rated for a current of 1.5 A and a voltage of 100 V, making it suitable for low-power electronic applications.

It supports an operating temperature range from -40°C to 125°C, allowing it to function in various industrial environments.

The socket is constructed from Liquid Crystal Polymer for the housing, and the contacts are made of bronze, plated with tin and nickel for corrosion resistance.

This model features 14 female contacts arranged in 2 rows with a 1.27 mm pitch, designed for board-to-board connections.

It uses solder termination with indented solder legs to enhance retention, making it suitable for mass production soldering processes.

The orientation of this socket is straight, designed for through hole mounting.

It is suitable for applications in industrial machines, robotics, automotive systems, and audio electronics, among others.

The Micro-MaTch contact spring system prevents fretting corrosion by absorbing vibration and thermal expansion movements, ensuring reliable electrical connections.

The pitch size of the contacts is 1.27 mm, which is standard for this type of PCB socket.

It supports both wire-to-board and board-to-board interconnections, making it versatile for various electronic applications.

The gas-tight connection ensures stable electrical performance over time and helps resist fretting corrosion due to vibration and thermal expansion.

The country of origin for this PCB socket is India.
