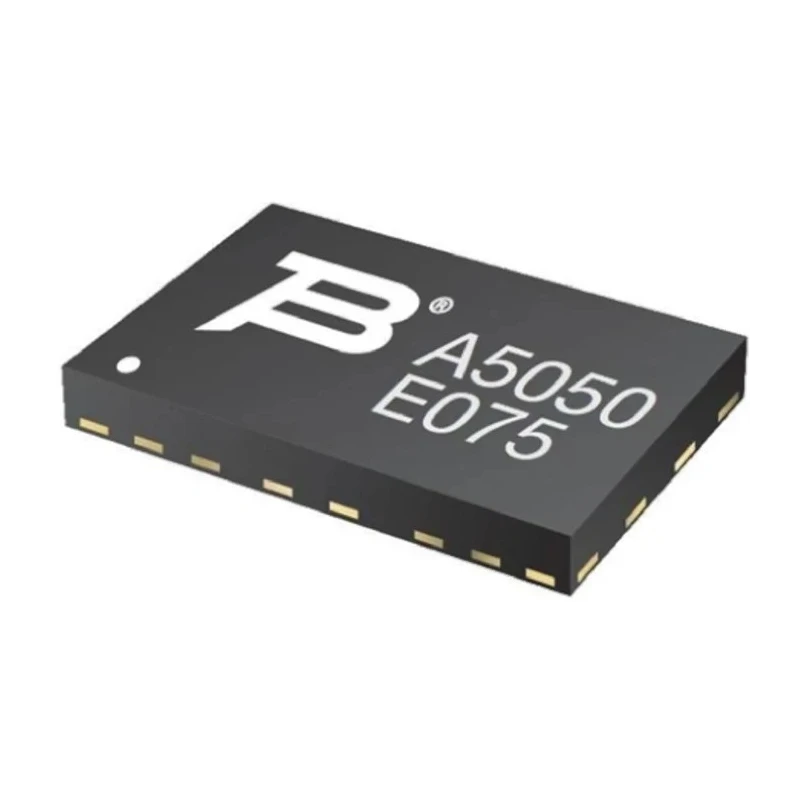

Bourns 1-Element Bi-Directional TVS Diode 20V Reverse Stand-off Voltage 250V Clamping Voltage 2-Pin DFN TBU-CA025-050-WH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 0.85mm |
| Length | 6.5mm |
| Model | TBU-CA025-050-WH |
| Width | 4mm |
| Mount Type | Surface |
| Series | TBU |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 250V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 20V |
| Maximum Peak Pulse Current Ippm | 0.1A |
| ESD | IEC 61000-4-2 |
Key Features
- Provides bi-directional transient voltage suppression for circuit protection.
- Features a compact 2-pin DFN surface mount package for space savings.
- Operates reliably within -55°C to 125°C temperature range.
- Designed for quick response to power surges and electrostatic discharge events.
- Low capacitance design supports high-speed data lines without signal degradation.
- Ideal for industrial, medical, telecom, and aerospace applications.
- Resettable device offering maintenance-free operation and thousands of cycles.
- Compliant with IEC 61000-4-2 ESD standards for electrostatic discharge protection.
Product Description
Bourns TBU-CA025-050-WH is a high-speed, 1-element bi-directional TVS diode designed to provide transient voltage protection in sensitive electronic circuits. This device features a maximum reverse stand-off voltage of 20V and a clamping voltage of 250V, packaged in a compact 2-pin DFN surface mount package measuring 6.5mm length, 4mm width, and 0.85mm height.
The TVS diode is engineered to protect industrial controls, medical electronics, telecom equipment, and aerospace applications from voltage and current surges caused by short circuits, lightning spikes, and power cross conditions. It offers ultra-fast overcurrent protection with a maximum peak pulse current of 0.1A and excellent ESD protection compliant with IEC 61000-4-2 standards.
Its low capacitance design enables use on high bandwidth data lines such as Ethernet, RS-485, and HART ports without signal distortion. The device operates reliably in a broad temperature range from -55°C to +125°C, ensuring stable performance in harsh environments.
This resettable electronic current limiter delivers high reliability and longevity with maintenance-free automatic resetting after fault conditions cease. The compact DFN package also saves valuable PCB space, making it suitable for automated test systems and military-grade electronics.
Provides bi-directional transient voltage and overcurrent protection. Compact surface mount DFN package reduces board space requirements. Wide operating temperature range (-55°C to +125°C) for diverse applications. Compliant with IEC 61000-4-2 for ESD protection.
Resettable and maintenance-free design for thousands of cycles. Low capacitance suitable for high frequency and data line protection. Protects against lightning, power surges, and short circuit faults. Ideal for industrial, telecom, medical, and aerospace electronics.
This Bourns TVS diode is part of the TBU series, renowned for superior circuit protection technology, making it an essential component for designers seeking reliable overvoltage suppression with minimal form factor. Browse more semiconductor and TVS Diode solutions on EnvMart for your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this model is 20V.
The clamping voltage for this TVS diode is 250V.
It operates reliably within a temperature range of -55°C to 125°C.
This model contains a single element per chip.
The package type is a compact 2-pin DFN surface mount package.
The maximum peak pulse current is 0.1A.
Yes, it is compliant with IEC 61000-4-2 ESD standards for electrostatic discharge protection.
It is suitable for industrial, medical, telecom, and aerospace applications.
The dimensions are 6.5mm in length, 4mm in width, and 0.85mm in height.
This model features a bi-directional configuration.
The low capacitance design supports high-speed data lines without signal degradation.
It uses a surface mount type for installation.
