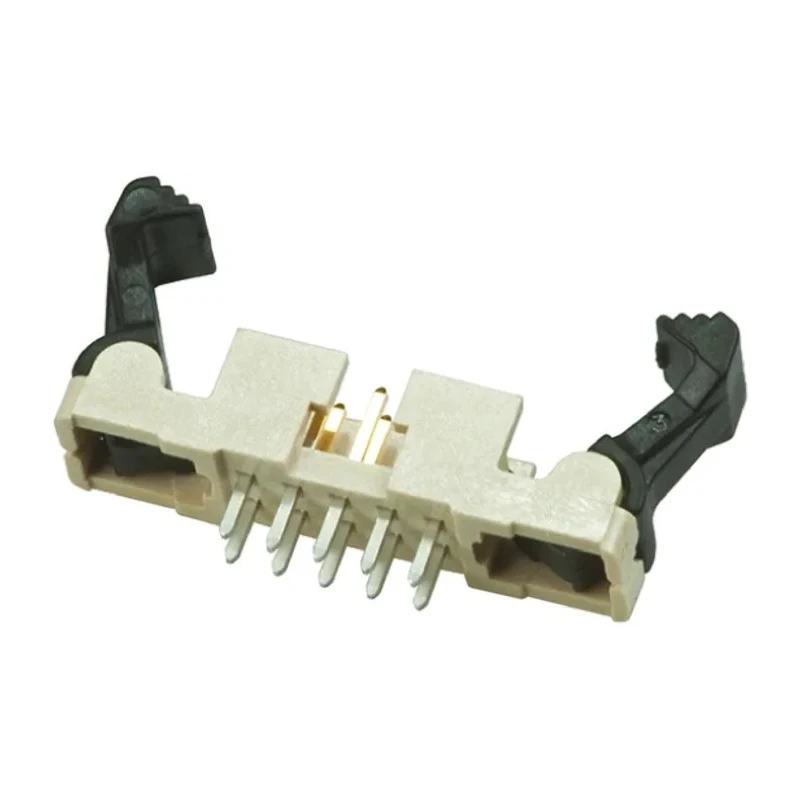

Amphenol Communications Solutions Minitek Series Straight Through Hole PCB Header 8 Contacts 2 mm Pitch 2 10078991-G22-08ULF

Amphenol Communications Solutions 10078991-G22-08ULF Minitek Series Straight Through Hole PCB Header is a high-quality connection solution designed for industrial electronic applications requiring reliable wire-to-board connections. This PCB header features 8 male contacts arranged in 2 rows with a precise 2 mm pitch, enabling compact PCB layouts and efficient space utilization. The header is equipped with a shrouded design that includes four-walled shielding to protect pins in unmated condition, enhancing durability and signal integrity.

The thermoplastic housing material provides mechanical strength while maintaining electrical safety. Contacts are made from a copper alloy and plated with 0.76μm selective gold to improve conductivity and resist corrosion. The connector supports a maximum rated current of 2 A and voltage rating of 200 V, making it suitable for power and signal applications on printed circuit boards.

Operating temperature capability ranges from -40°C to +125°C, allowing the header to perform reliably under extreme conditions. The header incorporates a polarisation key with a short eject latch mechanism that securely latches the receptacle in place and facilitates simple ejection without damaging the contacts.

This product adheres to safety standards such as UL 94 V-O flammability rating, and the housing is colored cream with black latches for clear identification. The mating pin length is 4 mm, ensuring a firm and stable connection to mating connectors.

Applications for this PCB header span across industrial automation systems, communication equipment, power distribution boards, and electronic manufacturing where robust and reliable PCB connectors are critical.

Package does not specify additional contents beyond the PCB header itself. Country of Origin is France. The 2.00 mm pitch provides space-saving design compatible with various PCB applications. Constructed with thermoplastic housing and copper alloy contacts with gold plating for reliable connectivity.

Rated for 2A current and 200V voltage operation supporting industrial electronic use. Features a shrouded, straight orientation with a polarisation key and short eject latch for secure mating and easy disconnection. Operating temperature range from -40°C to +125°C ensures durability in harsh environments.

Contact plating thickness is 0.76μm selective gold for enhanced corrosion resistance and conductivity. Housing color is cream with black latches and UL 94 V-O flammability rating for safety compliance. Mating pin length is 4 mm, suitable for firm and precise contact engagement.
