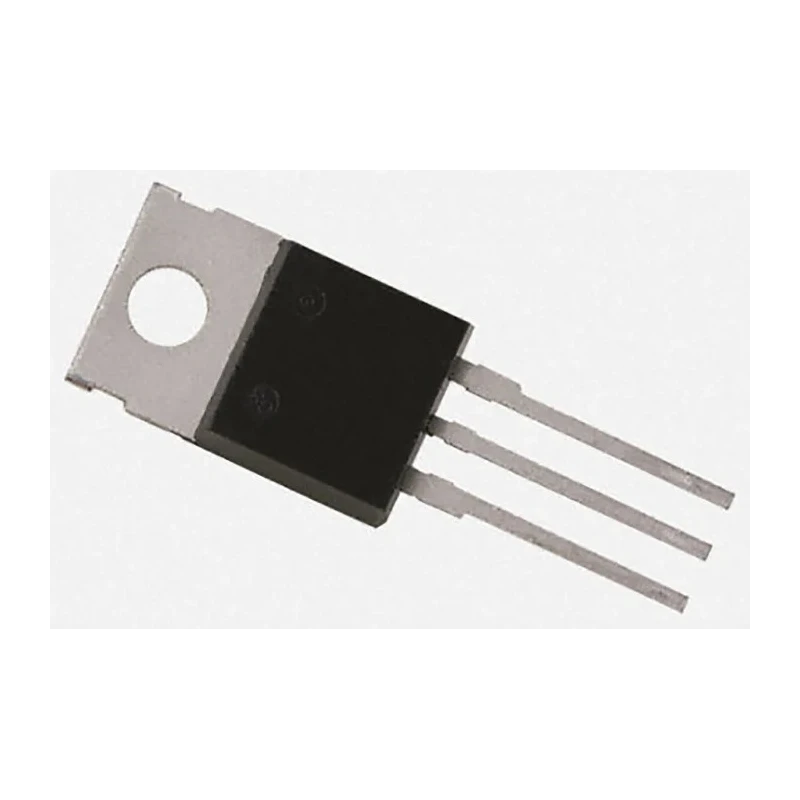

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTB24-600BWRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | BTB24-600BWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 260A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 75mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Supports average on-state current of 25 A for robust power handling.
- Features a TO-220 package type suitable for through hole mounting.
- Maximum surge current rating is 260 A for transient overloads.
- Designed for operation from -40°C to 125°C ambient temperatures.
- Maximum gate trigger current of 50 mA ensures efficient triggering.
- Peak gate power dissipation rated at 1 W to maintain reliability.
- Compact dimensions with 9.15 mm height and 10.4 mm length.
- Single configuration with 3 pins for straightforward circuit integration.
Product Description
STMicroelectronics BTB24-600BWRG is a through hole mounted 3-pin TRIAC semiconductor designed for switching and phase control of AC loads up to 600 V with a gate trigger voltage of 1.3 V. This device supports an average on-state current of 25 A and can withstand surge currents up to 260 A, making it ideal for industrial power control, motor speed regulation, lighting dimmers, and heater controls.
The TRIAC is packaged in a TO-220 form factor, facilitating easy installation on PCBs and heat sinks for enhanced thermal management. It operates reliably within a wide temperature range from -40°C to 125°C, ensuring durability in demanding industrial and commercial environments.
With a maximum gate trigger current of 50 mA and peak gate power dissipation of 1 W, the BTB24-600BWRG device offers efficient triggering and stable operation. The compact physical size of 9.15 mm height and 10.4 mm length allows for space-saving designs. The device's single configuration and 3-pin design simplify integration into standard AC power control circuits.
This TRIAC exhibits a low peak on-state voltage of 1.55 V which contributes to lower power losses during conduction. It does not conform to automotive standards but is well suited for industrial, manufacturing, laboratory, HVAC, and general electronics applications where reliable AC switching devices are needed.
Supports average on-state current of 25 A. Peak surge current rating of 260 A for transient loads. Gate trigger voltage of 1.3 V for sensitive triggering. Wide operating temperature range of -40°C to 125°C. TO-220 package for easy mounting and heat dissipation.
Compact dimensions for space-efficient designs. 3-pin single configuration for AC load switching. Peak on-state voltage of 1.55 V minimizes power loss.
Choose STMicroelectronics TRIACs for robust and reliable AC switching in industrial and electronic power control systems. Explore more semiconductor solutions and components at EnvMart to enhance your projects and manufacturing lines.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
It supports a rated average on-state current of 25 A.
The surge current rating is 260 A, allowing it to handle transient overloads effectively.
The maximum gate trigger voltage is 1.3 V, which ensures sensitive triggering.
This device is packaged in a TO-220 form factor, suitable for through hole mounting.
The dimensions are 9.15 mm in height and 10.4 mm in length.
The peak on-state voltage is 1.55 V, which helps minimize power loss during conduction.
It features a single configuration with 3 pins for straightforward circuit integration.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
The maximum gate trigger current is 50 mA, ensuring efficient triggering.
This TRIAC is suitable for industrial power control, motor speed regulation, lighting dimmers, and heater controls.
The repetitive peak reverse voltage rating is 600 V, making it suitable for AC load switching.
