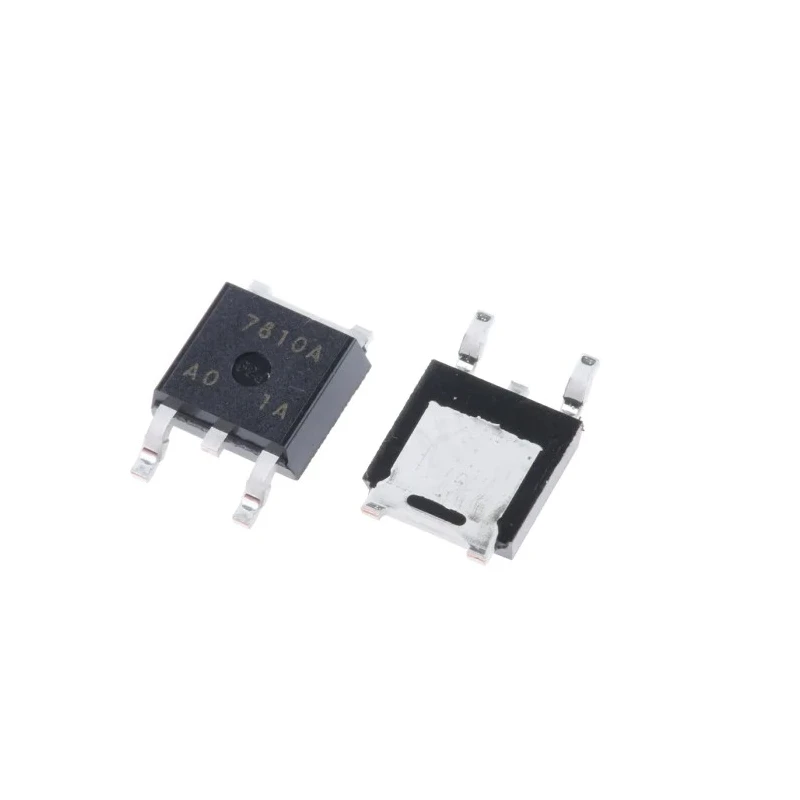

Nisshinbo Micro Devices 5-Channel Linear Voltage Regulator 1.5A 10V TO-252 3-Pin NJM7810DL1A-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Height | 2.29mm |
| Length | 6.54mm |
| Model | NJM7810DL1A-TE1 |
| Width | 6.04mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | NJM78xx |
| Power Rating | 1W |
| Output Current | 1.5A |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-252 |
| Load Regulation | 200 mV |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V |
| Output Voltage | 10V |
| Quiescent Current | 6mA |
| Line Regulation | 200 mV |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
Key Features
- This linear voltage regulator features five output channels for versatile power management.
- It operates with a low quiescent current of 6 mA, ensuring energy efficiency.
- The package size is compact with dimensions 6.54 mm length, 6.04 mm width, and 2.29 mm height.
- Rated for operation between -40°C and 85°C, suitable for various environmental conditions.
- Includes internal thermal overload protection and short circuit current limiting for reliability.
- Supports a maximum input voltage of 35 volts and fixed 10 volt output voltage.
- Compliant with RoHS standards, ensuring environmentally safe manufacturing.
- Bipolar technology enhances linear regulation performance and ripple rejection.
Product Description
The Nisshinbo Micro Devices NJM7810DL1A-TE1 is a 5-channel linear voltage regulator designed for precise and stable voltage regulation applications. It delivers a fixed output voltage of 10V with a steady output current of 1.5A, housed in a compact TO-252 3-pin surface mount package suitable for space-constrained electronic designs.
This voltage regulator family employs bipolar technology and features excellent line and load regulation of 200 mV each, providing stable performance under varying electrical loads. The quiescent current of only 6 mA makes it suitable for energy-efficient circuits.
Key protective features include internal thermal overload protection and internal short circuit current limiting, adding robustness to industrial and laboratory power systems. It is engineered to operate across a wide temperature range from -40°C to +85°C, making it appropriate for harsh environmental and industrial automation settings.
The compact dimensions of 6.54 mm length, 6.04 mm width, and 2.29 mm height enable integration into small PCB areas without sacrificing durability or power handling. The fixed 10V output provides reliable power supply for sensitive electronics in communications, instrumentation, and control devices.
RoHS compliance ensures environmentally conscious manufacturing processes and product safety for commercial and industrial uses. Its surface mount design facilitates automated PCB assembly, suitable for mass production and rapid prototyping.
This voltage regulator is optimal for on-card regulation, allowing localized voltage control to improve system stability. The inclusion of five output channels enables multi-voltage supply needs from a single regulator package.
Applications span industrial automation, power management in electronics, telecommunications, and laboratory instrumentation. Explore the broad range of Voltage Regulators available at EnvMart to find components tailored to your project specifications and industry standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 10V.
The maximum input voltage it can handle is 35 volts.
It is rated for a steady output current of 1.5A.
The dimensions are 6.54 mm in length, 6.04 mm in width, and 2.29 mm in height.
The quiescent current is only 6 mA, making it suitable for energy-efficient applications.
It operates effectively between -40°C and 85°C.
It is housed in a compact TO-252 3-pin surface mount package.
This model features five output channels for versatile power management.
It includes internal thermal overload protection and short circuit current limiting for enhanced reliability.
Yes, it is compliant with RoHS standards, ensuring environmentally safe manufacturing.
It provides linear regulation with excellent line and load regulation of 200 mV each.
It is suitable for applications in industrial automation, telecommunications, and laboratory instrumentation.
