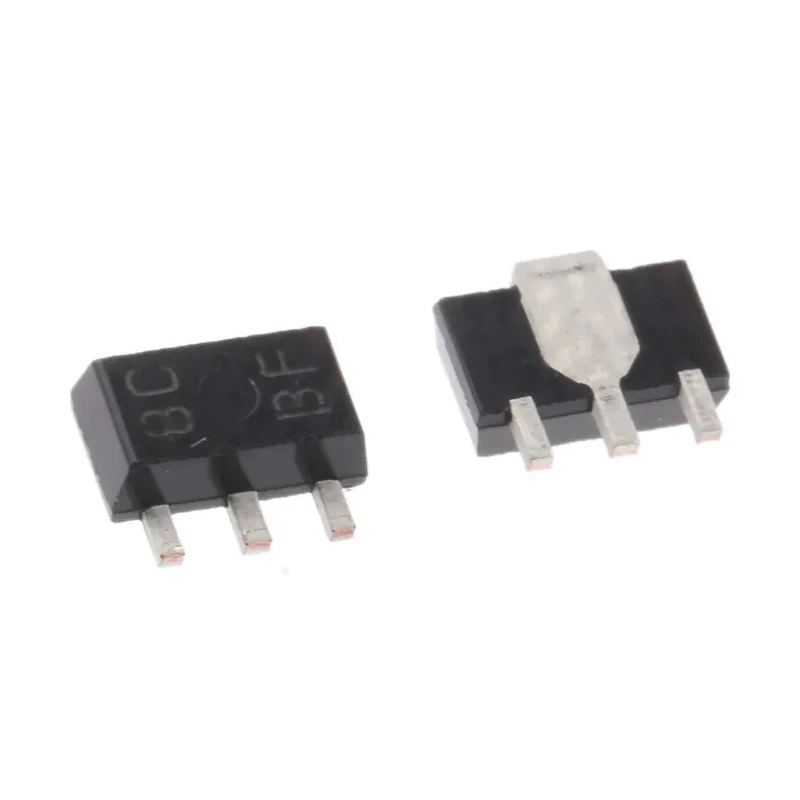

Nisshinbo Micro Devices 5-Channel Linear Voltage Regulator 5V 100mA SOT-89 3-Pin NJM78L05UA-TE1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Height | 1.5mm |
| Length | 4.5mm |
| Model | NJM78L05UA-TE1 |
| Width | 2.5mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | NJM78Lxx |
| Power Rating | 0.3W |
| Output Current | 100mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-89 |
| Load Regulation | 60 mV |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 30V |
| Output Voltage | 5V |
| Quiescent Current | 2mA |
| Line Regulation | 200 mV |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
Key Features
- Provides fixed 5V output voltage suitable for various electronic applications.
- Supports up to five output channels for versatile voltage regulation needs.
- Features a compact SOT-89 surface mount package with 3 pins.
- Low quiescent current of 2mA enhances energy efficiency.
- Operates reliably within a wide temperature range from -40°C to 85°C.
- Offers line regulation of 200mV and load regulation of 60mV for stable voltage output.
- Handles a maximum input voltage up to 30V with positive polarity operation.
- Power rating is 0.3W, ensuring safe and consistent performance.
Product Description
Nisshinbo Micro Devices NJM78L05UA-TE1 is a 5-channel linear voltage regulator designed to provide a fixed 5V output voltage at a current rating of 100mA. Packaged in a compact SOT-89 3-pin surface mount form factor, it offers efficient voltage regulation suitable for a wide range of electronic applications.
This voltage regulator features low quiescent current of 2mA, making it energy efficient for power-sensitive circuits. It operates within a wide temperature range from -40°C to 85°C, ensuring reliable performance under harsh environmental conditions.
With line regulation of 200mV and load regulation of 60mV, the NJM78L05UA-TE1 maintains stable output voltage with varying input conditions and load changes. The device supports a maximum input voltage of 30V and a power rating of 0.3W, enabling safe operation within electrical design limits.
This regulator is designed with positive polarity and includes 3 pins in its SOT-89 package, facilitating easy surface mounting on printed circuit boards. The compact dimensions of 4.5mm length, 2.5mm width, and 1.5mm height save valuable PCB space in dense electronic designs.
The NJM78L05UA-TE1 complies with RoHS environmental standards, making it suitable for green electronics applications. It finds usage in various industrial, commercial, and consumer electronic products requiring stable 5V regulation with low current demands.
Provides fixed 5V output voltage for stable power supply. Supports five output channels for versatile regulation needs. Compact surface mount SOT-89 package with 3 pins. Low quiescent current of 2mA reduces power consumption.
Wide operating temperature range from -40°C to 85°C for reliability. Good line and load regulation ensures voltage stability. Handles maximum input voltage of 30V with positive polarity. RoHS compliant for environmental safety standards.
Small physical size saves PCB real estate. Ideal for industrial, electronic, and power management applications. Explore the range of Voltage Regulators on EnvMart for your power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 5V.
The maximum input voltage it can handle is 30V with positive polarity operation.
It has an output current rating of 100mA.
The dimensions of the SOT-89 package are 4.5mm in length, 2.5mm in width, and 1.5mm in height.
The quiescent current is 2mA, which enhances energy efficiency.
It operates reliably within a temperature range of -40°C to 85°C.
This model supports up to five output channels for versatile voltage regulation needs.
It features line regulation of 200mV and load regulation of 60mV for stable voltage output.
Yes, it complies with RoHS environmental standards, making it suitable for green electronics applications.
The power rating is 0.3W, ensuring safe and consistent performance.
It supports surface mounting on printed circuit boards.
The output type is fixed, providing a stable 5V supply.
