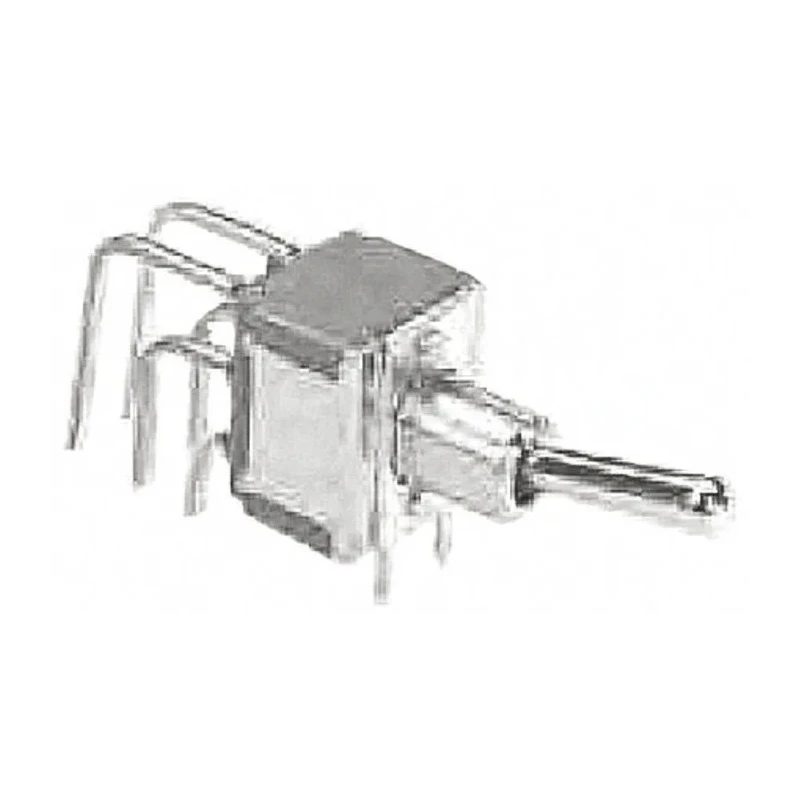

TE Connectivity Gemini A Series Toggle Switch PCB Mount On-On DPDT 28V DC 115V AC 1-1825138-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 0.25 in |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 12.19mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- DPDT contact configuration for dual pole double throw operation.
- On-On switch operation with epoxy sealed terminals.
- Rated for 28V DC and 115V AC contact voltages.
- PCB mounted with through hole terminal type.
- Features an IP67 rating for dust and water resistance.
- Actuator made of phenolic material is 12.19 mm long.
- Compact dimensions measuring 0.5in length, 0.45in width, and 0.35in height.
- Operating temperature range from -30°C to 85°C.
Product Description
TE Connectivity model 1-1825138-8 is a Gemini A Series toggle switch designed for PCB mounting. It features a robust DPDT contact configuration with On-On switch operation, suitable for applications requiring dual pole double throw switching at voltages of 28V DC and 115V AC.
The switch is designed with epoxy sealed terminals ensuring high reliability and durability in industrial and electronic manufacturing environments. Its phenolic actuator, measuring 12.19 mm in length, provides excellent mechanical actuation.
Mounting is via a through hole terminal type onto PCBs, with compact dimensions of 0.5 inch length, 0.45 inch width, and 0.35 inch height, making it suitable for dense circuit boards and compact devices.
With an IP67 rating, this toggle switch offers dust-tight and water-resistant performance, supporting use in harsh and protective environments across electrical, automation, and industrial sectors.
The operating temperature range spans from -30°C to 85°C, allowing stable functionality under varying thermal conditions. The switch also complies with RoHS directives for environmental compliance and features a stainless steel frame with brass tin plated solder support for enhanced longevity and solder joint integrity.
DPDT contact configuration for versatile switching needs. On-On switch operation with sealed terminals for durability. PCB mounting and through hole terminals for easy integration. IP67 protection for challenging industrial environments.
Compact size suited to modern electronic applications. Wide operating temperature range ensuring reliable performance. Environmentally compliant with RoHS certification. Robust construction materials for industrial use.
This toggle switch is ideal for use in electrical control panels, industrial automation systems, circuit board assemblies, and other commercial electronic devices where precise reliable switching is essential. Explore our full range of TE Connectivity Toggle Switches at EnvMart for more options and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Dual Pole Double Throw) contact configuration, allowing for versatile switching operations.
It is rated for contact voltages of 28V DC and 115V AC, making it suitable for various electrical applications.
The switch has an IP67 rating, indicating it is dust-tight and water-resistant, suitable for harsh environments.
The compact dimensions are 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
It operates effectively within a temperature range of -30°C to 85°C, ensuring reliability under varying conditions.
This toggle switch is designed for PCB mounting with a through hole terminal type, facilitating easy integration into circuit boards.
The actuator is made of phenolic material, providing robust mechanical actuation.
The switch contact current is rated at 5A, suitable for various electrical applications.
Yes, it complies with RoHS directives for environmental compliance, ensuring it meets specific environmental regulations.
The actuator length is 12.19 mm, allowing for effective operation within compact spaces.
It is ideal for use in electrical control panels, industrial automation systems, and circuit board assemblies.
The required panel cutout size for installation is 0.25 inches.
