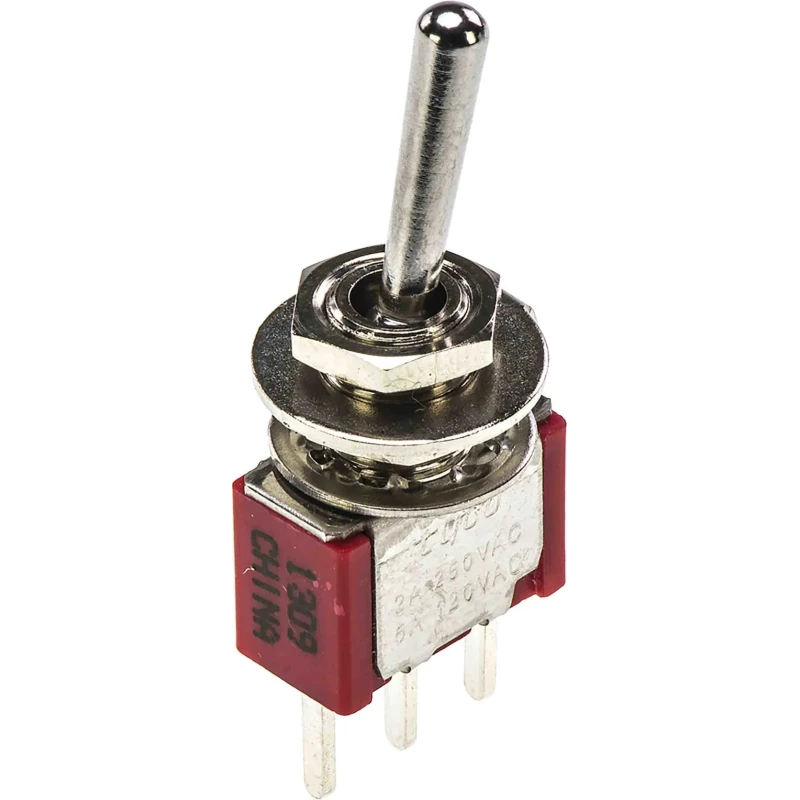

TE Connectivity Gemini A Series Toggle Switch, PCB Mount, On-On SPDT, Through Hole Terminal, 28 V dc, 5A, 115 V 6-1825136-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Gemini A Series Toggle Switch, PCB Mount, On-On SPDT, Through Hole Terminal, 28 V dc, 5A, 115 V 6-1825136-3

Name: TE Connectivity Gemini A Series Toggle Switch, PCB Mount, On-On SPDT, Through Hole Terminal, 28 V dc, 5A, 115 V 6-1825136-3
Brand: TE Connectivity
SKU: 127824
Price: 516.35 INR
Availability: InStock



Category Toggle Switch Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	0.35in
Length	0.5in
IP Rating	IP67
Width	0.27in
Mount Type	PCB
Series	Gemini A
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-(On)
Minimum Operating Temperature	-30°C
Panel Cutout Size	6.35 mm
Terminal type	Through Hole
Standards/Approvals	RoHS
Switch Operation	On-On
Actuator Length	10.41mm
Contact DC Voltage	28V dc
Switch Contact Current	5A
Contact AC Voltage	115V ac
Actuator Material	Phenolic

Key Features

SPDT contact configuration for versatile circuit applications.
On-On switch operation ensures break-before-make function.
PCB mount with through hole terminals provides sturdy integration.
Rated for 28 V dc and 115 V ac voltages handling.
Phenolic actuator material ensures durability and high temperature resistance.
Epoxy sealed terminals safeguard against environmental ingress.
Compact dimensions with 0.5in length, 0.35in height, and 0.27in width.
Operates in temperature range from -30°C to 85°C.

Product Description

TE Connectivity 6-1825136-3 Gemini A Series Toggle Switch is designed for PCB mounting with a robust On-On single pole double throw (SPDT) configuration. This switch supports a contact current rating of 5A and is suitable for voltages up to 28 V dc and 115 V ac, making it ideal for a wide range of electronic and electrical applications.

Constructed with a stainless steel frame and brass tin-plated solder support, the switch features epoxy sealed terminals to enhance durability and reliability in industrial conditions. The phenolic actuator material provides resistance to high temperatures and mechanical wear, ensuring long service life.

Its IP67 rating confirms high resistance to dust and water ingress, making it useful for rugged environments and applications requiring robust protections.

The compact size with dimensions of 0.5 inches length, 0.35 inches height, and 0.27 inches width allows easy integration onto PCBs with a panel cutout size of 6.35 mm. Operating temperature ranges from -30°C to 85°C enables use in diverse climates.

This toggle switch complies with RoHS standards, guaranteeing lead-free and environmentally friendly manufacturing processes. Industrial use cases include electronic instrumentation, control panels, automation equipment, and other PCB-based electrical devices requiring reliable on-on switching operation.

SPDT contact configuration for flexible circuit design. On-On switch operation with break before make contact timing. Through hole mounting for secure PCB attachment. Epoxy sealed terminals for enhanced protection. Phenolic actuator for durability in demanding environments.

Stainless steel frame with brass solder support. IP67 rated for resistance to dust and water. Temperature range -30°C to 85°C for versatility. Complies with RoHS directives for environmental compliance. Explore more Toggle Switches and electrical components at EnvMart for industrial and commercial applications.
