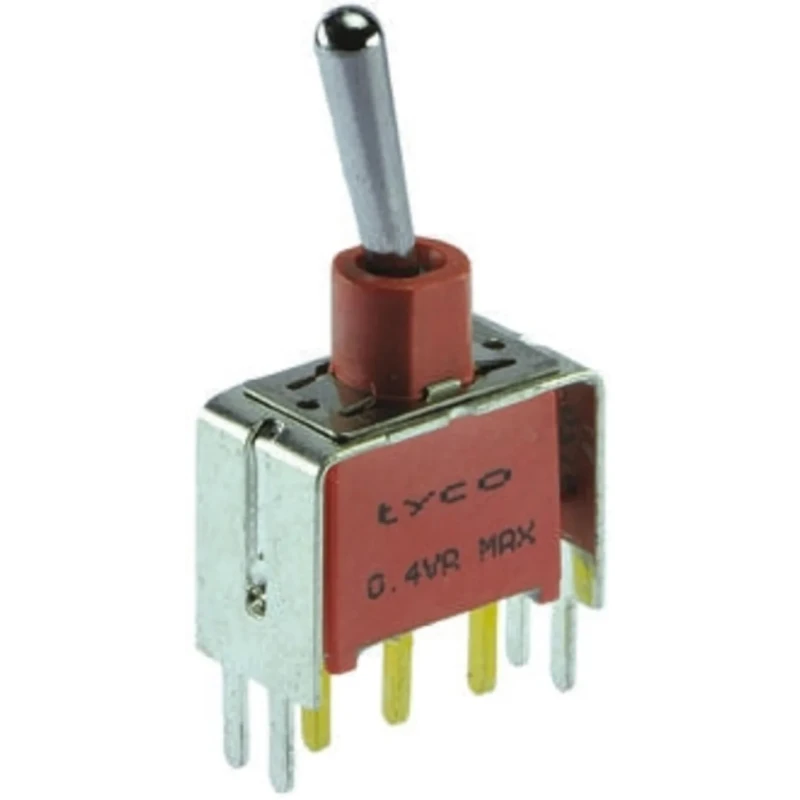

TE Connectivity PCB Mount Toggle Switch On-On SPDT Through Hole Terminal 28V DC 115V AC Gemini A Series 3-1825136-7

TE Connectivity 3-1825136-7 PCB Mount Toggle Switch On-On SPDT is a robust and reliable switching solution designed for electronic and industrial control applications. This toggle switch operates at 28 V DC and 115 V AC, supporting a switch contact current of up to 5 amps, enabling safe operation in moderate power circuits.

The Gemini A series switch features a durable phenolic actuator measuring 12.19 mm in length, providing ergonomic manual control. Its compact dimensions of 0.5 inch length, 0.35 inch height, and 0.27 inch width make it suitable for usage where space is constrained.

With through hole terminals, the switch mounts securely on printed circuit boards ensuring strong electrical connections. The epoxy sealed terminals combined with a stainless steel frame and brass tin-plated solder supports enhance longevity and reliability, even in demanding environments.

The switch carries an IP67 rating, ensuring it is dustproof and waterproof to a degree that it can perform reliably in industrial and commercial settings subject to harsh conditions. It operates effectively within a temperature range from -30°C to 85°C, making it versatile for various operating environments.

This toggle switch is ideal for use in industries such as automation, electrical manufacturing, instrumentation, and other laboratory and industrial equipment requiring reliable switch control. Its robust construction and operational ratings make it well-suited for embedded use in machinery and electrical panels.

This toggle switch features a single-pole double-throw (SPDT) contact configuration for versatile control. Mount type is designed for PCB mounting with through hole terminals ensuring secure solder joints. The actuator is made from durable phenolic material with a length of 12.19 mm for easy manual operation.

It has an IP67 rating, providing excellent protection against dust and water ingress. The switch operates within a temperature range from -30°C to 85°C, suitable for various industrial environments. Compact dimensions of 0.5 inch length, 0.35 inch height, and 0.27 inch width allow integration into tight spaces.

Rated for a switch contact current of 5 A, suitable for moderate current circuit switching. The Gemini A series provides epoxy sealed terminals and a stainless steel frame with brass tin-plated solder supports for enhanced durability.
