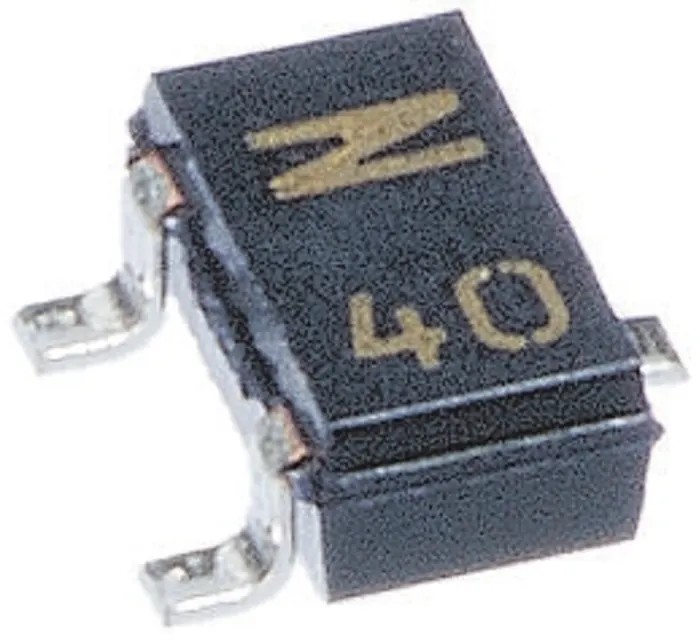

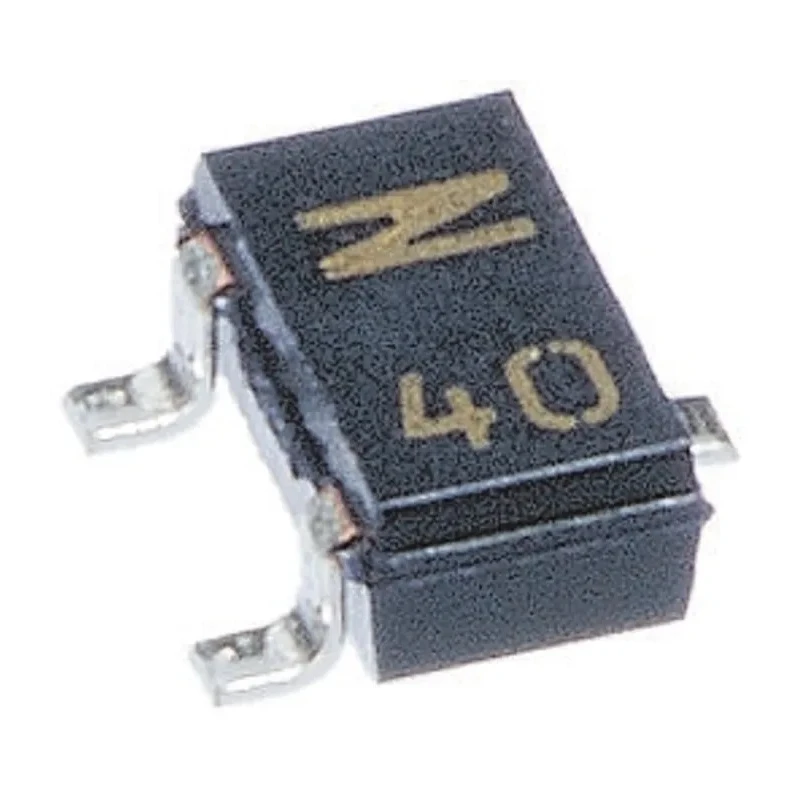

Microchip Voltage Regulator 13.2V SOT-23A 3-Pin MCP1702T-2802E/CB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | MCP1702T-2802E/CB |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | MCP1702 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23A |
| Polarity | Positive |
| Maximum Input Voltage | 13.2V |
| Quiescent Current | 5μA |
| Minimum Input Voltage | 2.7V |
| Pin Count | 3 |
Key Features
- Compact SOT-23A package measuring 3.1mm length, 1.8mm width, and 1.3mm height.
- Low quiescent current of 5μA enhances power efficiency.
- Positive polarity voltage regulator with 3 pins for easy integration.
- Maximum operating temperature rated at 125°C for reliable performance.
- Surface mount type suitable for automated PCB assembly.
- Compatible with various electronic power management applications.
- No automotive industry certification but robust for general electronic use.
Product Description
Microchip MCP1702T-2802E/CB Voltage Regulator is a surface-mount low dropout (LDO) linear voltage regulator housed in a compact SOT-23A 3-pin package. It features a maximum operating temperature of 125°C, making it suitable for diverse industrial and electronic applications that require stable voltage regulation within a 2.7V to 13.2V input range.
This voltage regulator exhibits a low quiescent current of only 5μA, contributing to increased energy efficiency in electronic circuits. The positive polarity and 3-pin configuration simplify circuit design integration, making it an ideal component for power management in consumer electronics, industrial controls, and power supply systems.
The compact 3.1mm length, 1.8mm width, and 1.3mm height package ensures minimal PCB space usage and supports surface mount technology for efficient manufacturing processes. Although this regulator does not hold any specific automotive certifications, its robust performance makes it suitable for a wide range of electronics and power management setups.
Typical applications include power supply stabilization in embedded systems, portable devices, instrumentation, and communications equipment. The regulator’s low dropout voltage and temperature tolerance contribute to reliable power delivery under varying load and environmental conditions.
Compact SOT-23A surface-mount package for space-saving designs. Low quiescent current reduces power consumption in battery-operated devices. High maximum operating temperature of 125°C for stable operation. Wide input voltage range from 2.7V to 13.2V accommodates various power sources.
Positive polarity and 3-pin configuration for easy implementation in circuits. Explore more Microchip power management solutions and reliable Voltage Regulators in our Electronics & Electricals category to enhance your system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This voltage regulator operates within a wide input voltage range of 2.7V to 13.2V.
The MCP1702T-2802E/CB features a low quiescent current of only 5μA, enhancing power efficiency in electronic circuits.
The SOT-23A package measures 3.1mm in length, 1.8mm in width, and 1.3mm in height.
The maximum operating temperature for the MCP1702T-2802E/CB is rated at 125°C, suitable for various applications.
This model has a 3-pin configuration, which simplifies integration into circuits.
It is a surface mount type, making it suitable for automated PCB assembly.
This voltage regulator supports positive polarity, which is common in many electronic applications.
Typical applications include power supply stabilization in embedded systems, portable devices, instrumentation, and communications equipment.
The low dropout voltage contributes to reliable power delivery under varying load and environmental conditions, enhancing performance.
The country of origin for this voltage regulator is India.
This model is part of the MCP1702 series of voltage regulators.
The low quiescent current of 5μA enhances energy efficiency, making it suitable for battery-operated devices.
