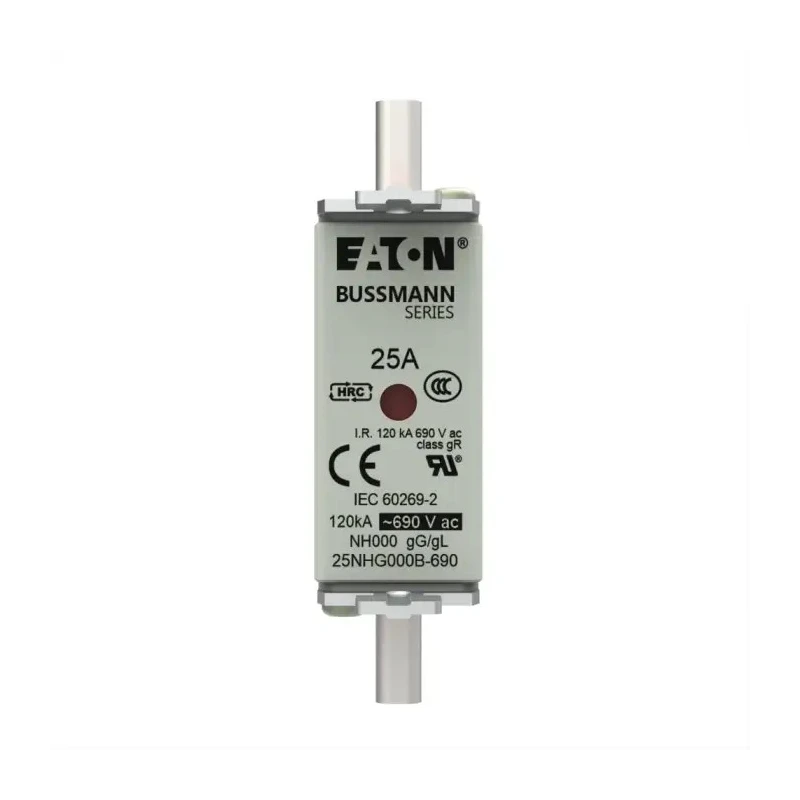

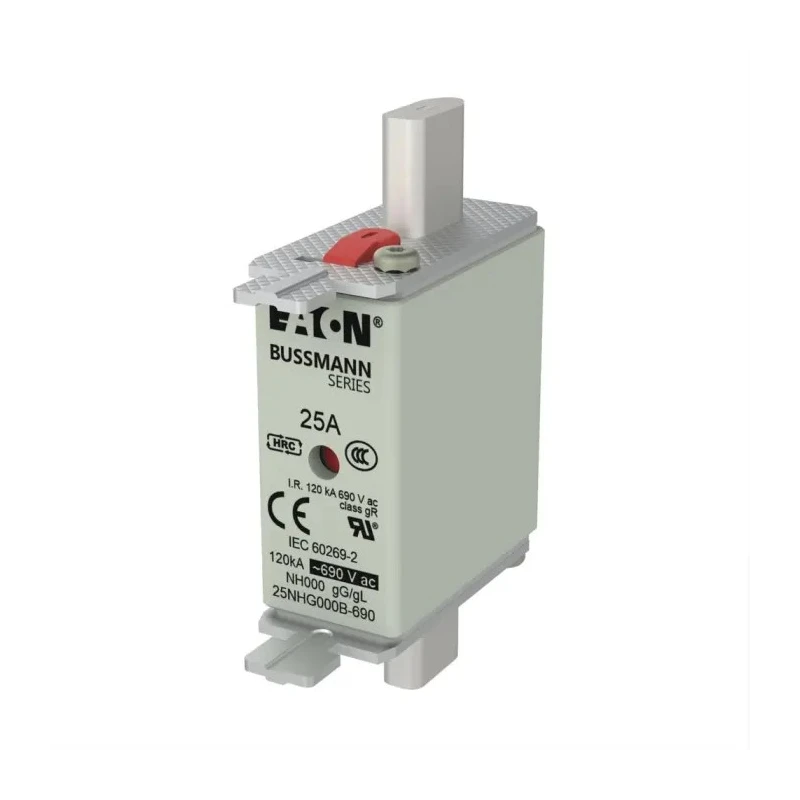

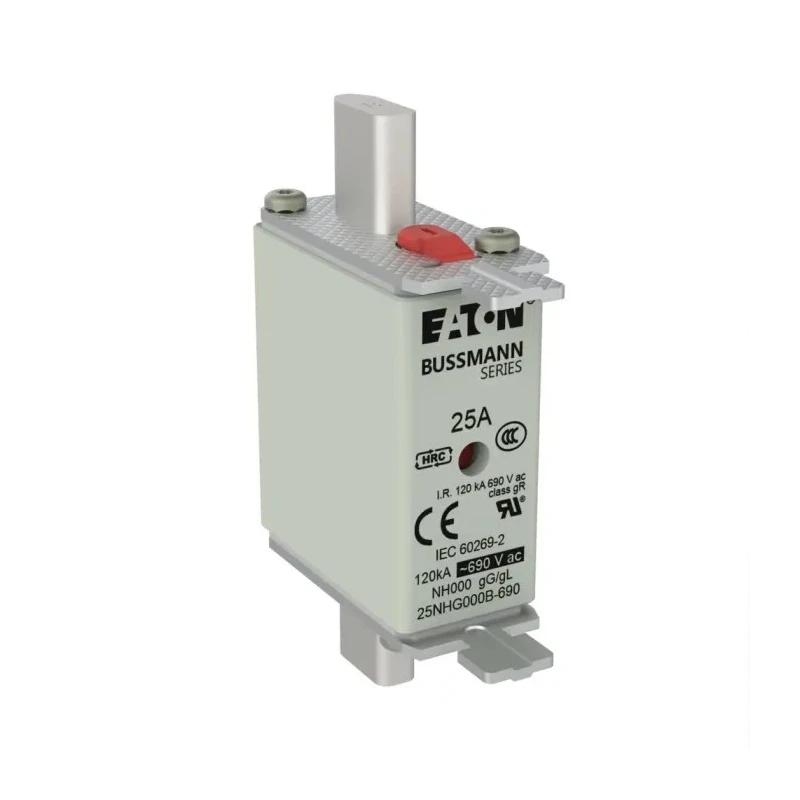

Eaton NH Fuse 25A Current Rating 79 mm x 51 mm x 21 mm 690V AC 25NHG000B-690

Eaton 25NHG000B-690 NH Fuse provides reliable protection for industrial electrical circuits with a 25A current rating and 690V AC voltage compatibility. This fuse is engineered as a protective cartridge suitable for low-voltage distribution systems, interrupting fault currents efficiently to safeguard equipment and maintain system integrity.

The fuse cartridge measures 79 mm in length, 51 mm in width, and 21 mm in height, making it compact and well-suited for panel-mounted protection in automation and electrical installations. It features a high rupture capacity that enables safe interruption of high fault currents, protecting circuits from damage.

Conformance to IEC 60269-2 and DIN 43620 standards ensures standardized performance and interchangeability with other NH fuses. Its construction supports applications in categories gG and gL, which cover general purpose protection against overloads and short circuits.

The 6 mm tag width allows for clear circuit identification, enhancing safety and maintenance efficiency. The NH fuse type supports cartridge-style installation in holders, facilitating straightforward replacement and compatibility within existing switchgear.

This fuse is ideal for protecting motor feeders in industrial plants, distribution boards in automation systems, and safeguarding control circuits in electrical panels. It is typically used as a replacement for gG/gL protective elements in switchgear.

Predictable overload protection with 25A current rating. Compact dimensions fit standard NH fuse compartments. High rupture capacity for fault current interruption. Standards-compliant design ensures interchangeability. Supports application categories gG and gL.

Clear circuit identification via 6 mm tag width. Cartridge-style installation with NH fuse holders. Suitable for motor feeders and distribution boards. Manufactured in India for quality assurance.

This Eaton NH Fuse is an essential component for electrical protection in industrial, manufacturing, and automation environments, ensuring safe operation of electrical systems. Explore more Eaton electrical protection devices and components at EnvMart for comprehensive solutions.
