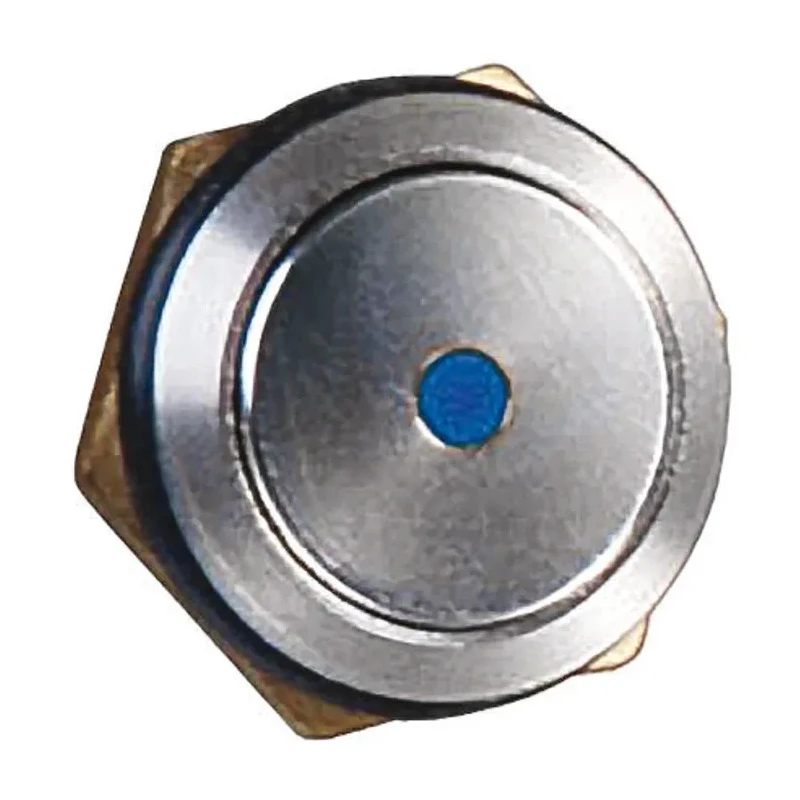

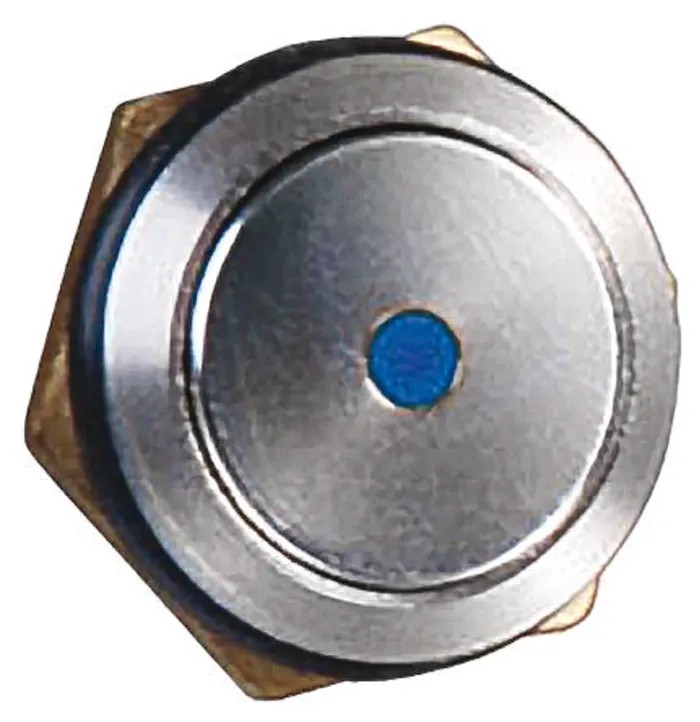

ITW Switches 48M Series Illuminated Push Button Switch, Latching, Panel Mount, 19.4 mm Cutout, SPST, Blue LED 48M-611B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ITW Switches |
| Model | 48M-611B |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 48M |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 19.4 mm |
| Terminal type | PC Pin |
| Standards/Approvals | CSA, UL |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 250mA |
| Contact AC Voltage | 250V ac |
Key Features
- Features a robust stainless steel housed panel-sealed design with IP67 protection.
- Equipped with gold-plated contacts rated at 250mA DC and 250V AC for reliable switching.
- Mounts on panels with thickness from 1.3 to 3.8 mm using a single hex nut fixing.
- Suitable for industrial machinery, outdoor controls, security products, and food processing equipment.
- Operates effectively within a temperature range of -25°C to 85°C.
- Illuminated with a blue LED for clear visual feedback during operation.
- Switch operation is latching with On-Off configuration using a button actuator.
- Certified to CSA and UL standards for safe use.
Product Description
ITW Switches 48M-611B is an illuminated push button switch designed for panel mounting with a 19.4 mm cutout suitable for SPST configurations. It supports latching On-Off switch operation and features a robust stainless steel housing with IP67 rating, ensuring excellent sealing against dust and water ingress, making it ideal for harsh industrial environments.
This switch includes a blue LED illumination which provides clear status indication. It is equipped with gold-plated contacts rated for 250mA at 12V DC and suitable for contact DC voltage up to 48V DC and AC voltage up to 250V AC. The actuator style is a durable button with silver color.
Mounting is simplified with a single hex nut suitable for panel thicknesses between 1.3 and 3.8 mm. This product is particularly suited for use in industrial machinery, outdoor control panels, kiosks, security devices, food processing, and medical equipment, where reliability and rugged construction are critical.
The switch operates effectively in a temperature range from -25°C to 85°C. It complies with CSA and UL safety standards, affirming its quality and safety for use in demanding applications.
Manufactured in Taiwan, this panel sealed metal switch ensures long service life and dependable performance in demanding electrical and automation control environments. Robust IP67 rated panel-sealed stainless steel housing.
Gold-plated contacts for enhanced conductivity and corrosion resistance. Latching On-Off operation with SPST contact configuration. Blue LED illumination for status indication. Wide operating temperature range from -25°C to 85°C.
Compatible with panel thickness from 1.3 to 3.8 mm. Gold-plated contacts rated 250mA DC and 250V AC for versatile applications. Certified to CSA and UL standards ensuring safety and compliance. Ideal for industrial, outdoor, security, food processing, and medical product usage.
Explore more Push Button Switches and components at EnvMart to find the perfect fit for your electrical and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an IP67 rating, providing excellent sealing against dust and water ingress, making it suitable for harsh environments.
It operates effectively within a temperature range of -25°C to 85°C.
The switch features a Single Pole Single Throw (SPST) contact configuration, allowing for latching On-Off operation.
The required panel cutout size for this unit is 19.4 mm.
It uses a button actuator with a silver color, designed for latching operation.
The contacts are rated for a maximum DC voltage of 48V and an AC voltage of 250V.
The switch contacts are rated for a maximum current of 250mA.
It mounts on panels with a thickness ranging from 1.3 to 3.8 mm using a single hex nut fixing.
This switch is certified to CSA and UL standards, ensuring its safety and compliance for use in various applications.
It features PC Pin terminals for easy connection.
This switch is suitable for industrial machinery, outdoor controls, security products, food processing equipment, and medical devices.
It is manufactured in Taiwan.
