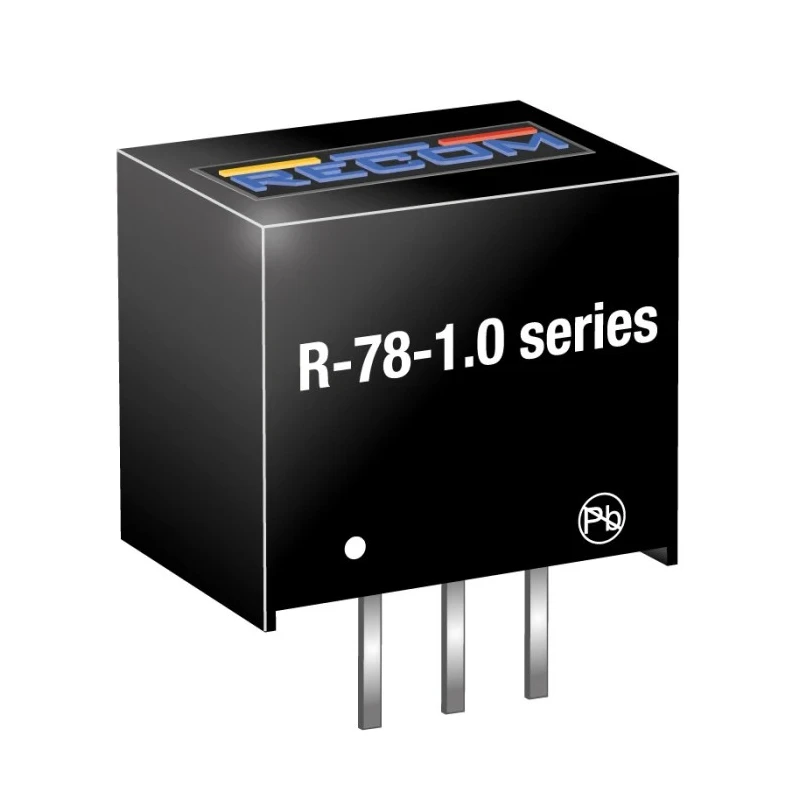

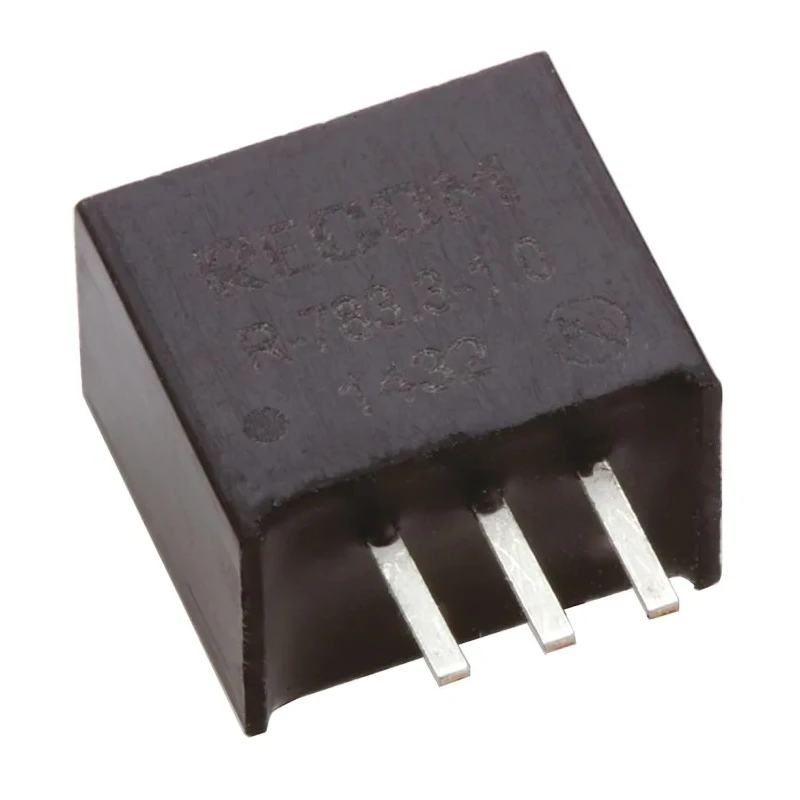

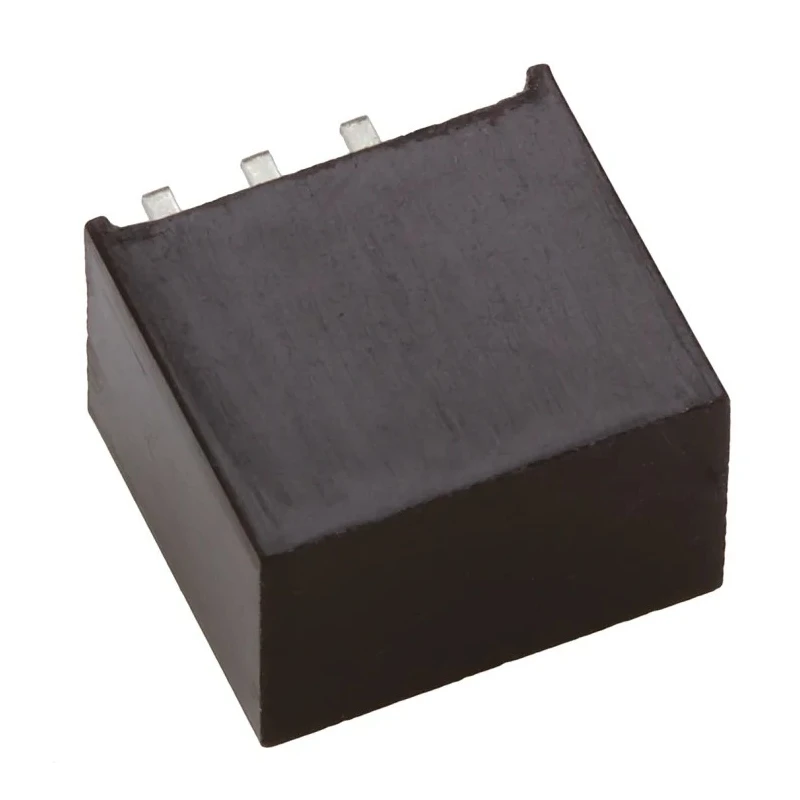

Recom Switching Regulator Through Hole, 3.3V DC Output Voltage, 1 A Output Current, 3.3W Power R-783.3-1.0

Free Delivery in India | Lowest Global Shipping Charges

Recom Switching Regulator Through Hole, 3.3V DC Output Voltage, 1 A Output Current, 3.3W Power R-783.3-1.0

Name: Recom Switching Regulator Through Hole, 3.3V DC Output Voltage, 1 A Output Current, 3.3W Power R-783.3-1.0
Brand: Recom
SKU: 208033
Price: 14.39 USD
Availability: InStock



Category Switching Regulator Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Brand	Recom
Power	3.3W
Efficiency	84%
Length	11.5mm
Model	R-783.3-1.0
Depth	10.2mm
Gross Weight	1.9g
Width	10.2mm
Mount Type	Through Hole
Series	R-78-1.0
Output Current	1A
Maximum Operating Temperature	85°C
Package Type	SIP
Load Regulation	±0.6 %
Minimum Operating Temperature	-40°C
MTBF	13338000h
Number of outputs	1
Ripple and Noise	30mV Pk-Pk
Maximum Input Voltage	18V dc
Line Regulation	±0.4 %
Standards/Approvals	RoHS
Minimum Input Voltage	4.75V
Output Voltage 1	3.3V dc

Key Features

Offers high efficiency of up to 84% for energy-saving operation.
Operates within a temperature range of -40°C to 85°C, suitable for harsh environments.
Equipped with three terminal pins for convenient through-hole mounting on PCB.
Features integrated short-circuit protection to safeguard connected appliances.

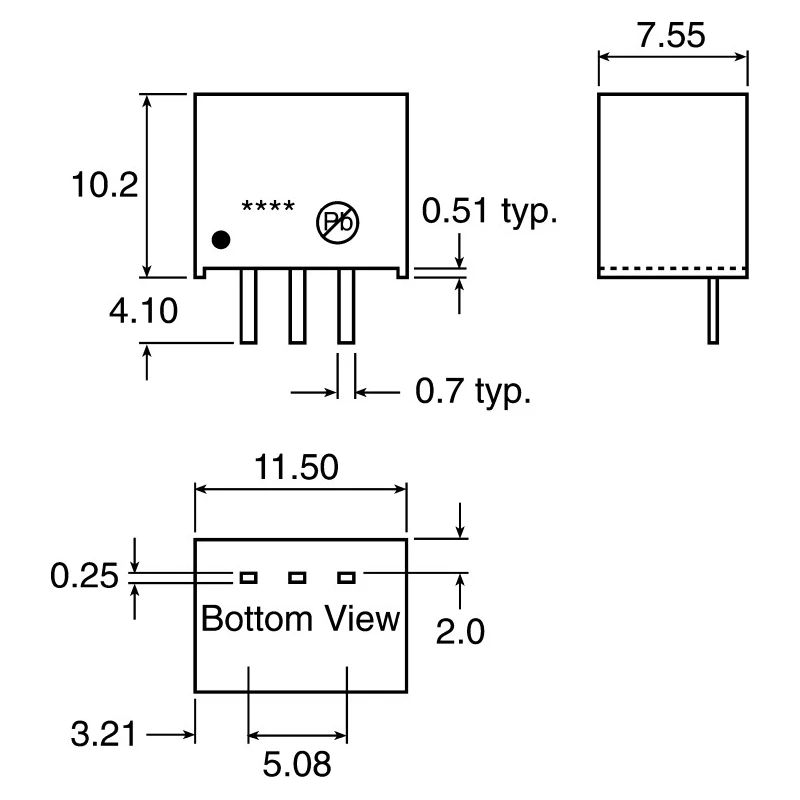

Compact SIP package measuring 11.5mm length, 10.2mm width, and 10.2mm depth.
Maintains output with ±0.4% line regulation and ±0.6% load regulation for voltage stability.
Supports input voltage range from 4.75V to a maximum of 18V DC.
Low ripple and noise with 30mV peak-to-peak ensures clean power delivery.

Product Description

Recom R-783.3-1.0 Switching Regulator is a through-hole DC-DC converter designed to provide a stable 3.3V DC output voltage at 1 A with a power rating of 3.3W. Featuring an efficiency of 84%, it dissipates minimal power internally and operates reliably in demanding conditions between -40°C and +85°C.

The compact SIP package with dimensions 11.5mm x 10.2mm x 10.2mm and 3 terminal pins enables straightforward PCB mounting. It efficiently regulates voltage with excellent line and load regulation, ensuring a stable output even under varying input conditions.

This switching regulator supports a wide input voltage range from 4.75V up to 18V DC, making it adaptable to diverse power supplies. It incorporates integrated short-circuit protection for enhanced safety of connected electronic equipment.

The device exhibits low ripple and noise at 30mV peak-to-peak, providing clean voltage output ideal for sensitive electronics. Its long MTBF of approximately 13.3 million hours guarantees robust and dependable operation.

Applications include telecommunications equipment, robotics systems, and general electronic appliances requiring reliable, compact voltage regulation. The regulator complies with RoHS standards, ensuring environmental safety.

Offers high efficiency of up to 84% for energy-saving operation. Operates within a temperature range of -40°C to 85°C, suitable for harsh environments. Equipped with three terminal pins for convenient through-hole mounting on PCB.

Features integrated short-circuit protection to safeguard connected appliances. Compact SIP package measuring 11.5mm length, 10.2mm width, and 10.2mm depth. Maintains output with ±0.4% line regulation and ±0.6% load regulation for voltage stability.

Supports input voltage range from 4.75V to a maximum of 18V DC. Low ripple and noise with 30mV peak-to-peak ensures clean power delivery. Designed for use in telecommunications, robotics, and electronic appliances. High reliability with Mean Time Between Failures (MTBF) of over 13 million hours.

Choose this Recom Switching Regulator for efficient, reliable voltage regulation in demanding industrial and commercial electronic applications. Browse additional power management and voltage converter products on EnvMart for complete solutions.
