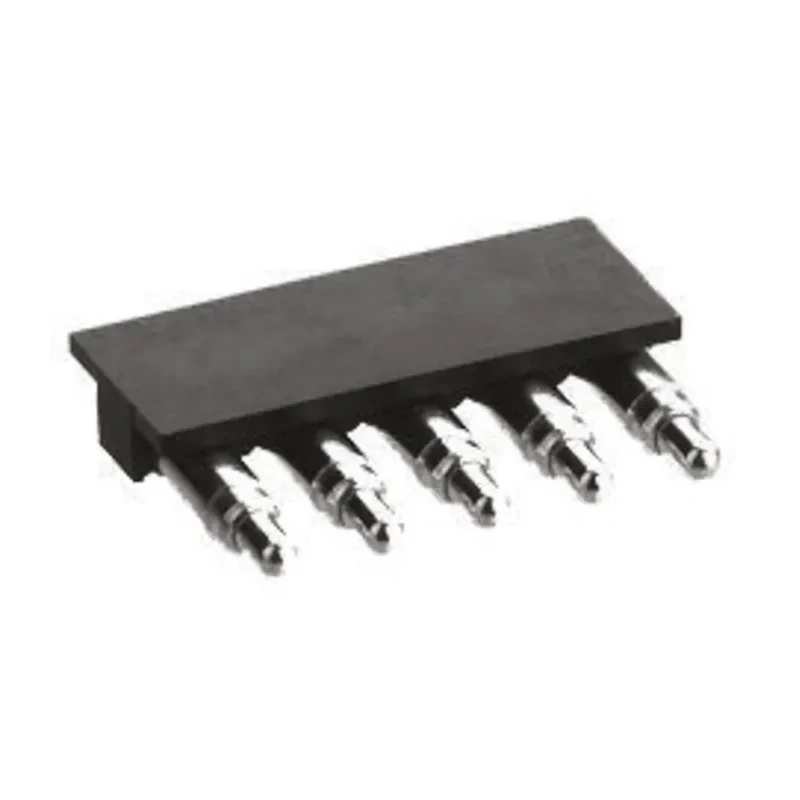

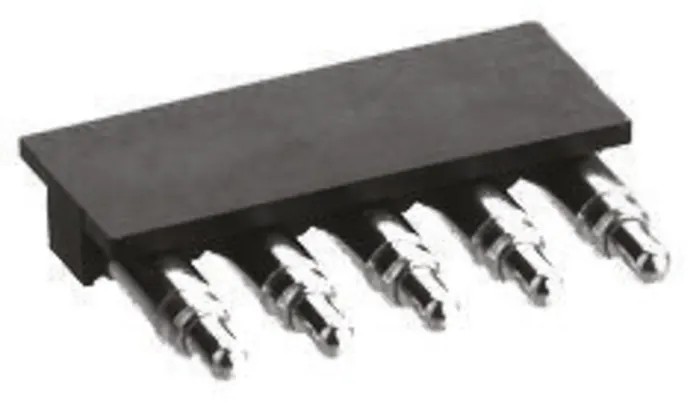

Preci-Dip 8PM Series Right Angle Surface Spring Loaded Connector, 10 Contacts, 2.54 mm Pitch, 1 Row 8PM-11-0010-02-131191

Preci-Dip 8PM-11-0010-02-131191 is a right angle surface mount spring loaded connector designed for high reliability in electronic components assembly. Featuring 10 gold-plated brass contacts arranged in a single row with a 2.54 mm pitch, this shrouded connector ensures stable, low-resistance electrical connections.

The connector's housing is constructed from fiberglass reinforced polyethylene terephthalate, offering excellent mechanical strength and thermal stability. It operates reliably over a broad temperature range from -55°C to 125°C. Its surface mount design with parallel pads is compatible with automated pick & place machinery to enhance production efficiency.

This product is rated for currents up to 3 Amperes and voltages up to 150 Volts, making it suitable for power and signal applications in industrial, laboratory, and manufacturing environments where dependable multipoint electrical connections are critical.

The spring-loaded contact mechanism guarantees consistent electrical contact without micro-discontinuities even under vibration or movement, assuring maximal connection reliability in demanding conditions.

Manufactured in Switzerland to strict quality standards, the Preci-Dip 8PM series connectors are a proven choice for PCB connectors requiring durability and high performance. The shrouded design also protects contact areas from mechanical damage and accidental short circuits.

Designed for surface mount with right angle orientation for PCB applications. Equipped with precision spring-loaded contacts for reliable electrical connection. Contact material is brass with high-quality gold plating for corrosion resistance.

Housing made from fiberglass reinforced polyethylene terephthalate for durability. Operates within a temperature range of -55°C to 125°C for demanding environments. Supports a current rating of 3 Amperes and voltage rating of 150 Volts.

Shrouded design ensures protection against accidental shorts and mechanical damage. Compatible with pick & place machinery due to parallel surface mount pads. Ideal for industrial, electronic manufacturing, and laboratory applications requiring stable electrical connections.

Manufactured in Switzerland to stringent quality standards ensuring long service life.

This connector is categorized under PCB Connectors & Wire Housings, suited for professionals in electronics manufacturing, industrial automation, laboratory equipment, and power distribution systems. Explore more trusted connectors at EnvMart for reliable high-quality electronic assembly components.
