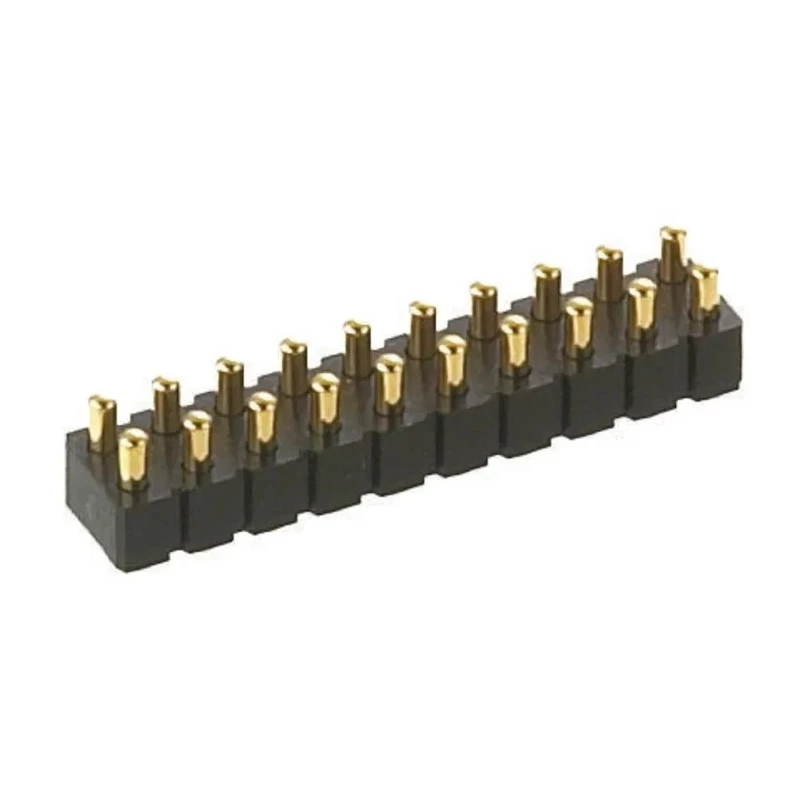

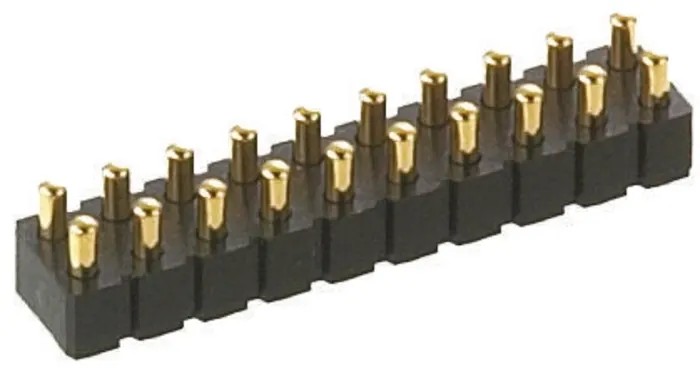

Preci-Dip 813 Series Straight Surface Spring Loaded Connector, 12 Contacts, 2.54 mm Pitch, 2 Row 813-SS-012-30-007191
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3.5A |
| Model | 813-SS-012-30-007191 |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 813 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Spring-loaded contacts ensure low and stable electrical resistance.
- Made with brass contacts plated with gold for durability.
- Housing constructed from fibreglass reinforced polyethylene terephthalate.
- Designed for operating temperatures from -55°C to 125°C.
- Surface mount type with solder termination and straight orientation.
- Rated for 3.5 A current and 150 V voltage maximum.
- Shrouded design improves connector protection and reliability.
- Manufactured in Switzerland ensuring high quality standards.
Product Description
The Preci-Dip 813-SS-012-30-007191 is a straight surface spring loaded connector designed for precise, low resistance electrical multipoint connections. This connector features 12 contacts arranged in 2 rows with a 2.54 mm pitch and is shrouded to enhance protection.
The spring-loaded contacts guarantee low and stable electrical resistance even during vibrations or mechanical movement, making this connector highly reliable for demanding industrial and electronic applications.
Constructed from brass contacts with gold plating and a housing made of fibreglass reinforced polyethylene terephthalate, this connector supports currents up to 3.5 A and voltages up to 150 V. It operates reliably within a temperature range from -55°C to 125°C and terminates by soldering on surface mount pads.
The connector is suitable for use in various industrial sectors such as electronic manufacturing, testing equipment, industrial automation, and laboratory instrumentation. Its robust design ensures long service life and high performance in critical environments.
Spring-loaded contacts provide stable low resistance connections. Gold-plated brass contacts ensure corrosion resistance and conductivity. Durable fibreglass reinforced housing enhances mechanical strength. Wide operating temperature range accommodates industrial environments.
Surface mount design allows ease of PCB integration. Shrouded construction enhances protection against accidental damage. Compact 12-contact, 2-row layout suited for dense electronic systems.
Preci-Dip connectors represent high standards of Swiss manufacture and quality assurance. They enable precise and reliable connections critical for modern electronics and industrial automation needs.
Explore the full range of high-quality PCB connectors and spring loaded connectors in the Electronics Components category on EnvMart for your project and manufacturing requirements.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 3.5 A.
This model has a maximum voltage rating of 150 V.
The connector features a 2.54 mm pitch and has 12 contacts arranged in 2 rows.
It is constructed with brass contacts that are gold plated, and the housing is made of fibreglass reinforced polyethylene terephthalate.
The operating temperature range for this model is from -55°C to 125°C.
This connector features a solder termination type for surface mount applications.
The orientation of this connector is straight.
Yes, it is designed for surface mount applications.
It has a shrouded design that enhances connector protection and reliability.
The contacts in this connector are male.
This connector is manufactured in Switzerland, ensuring high quality standards.
It is suitable for use in electronic manufacturing, testing equipment, industrial automation, and laboratory instrumentation.
