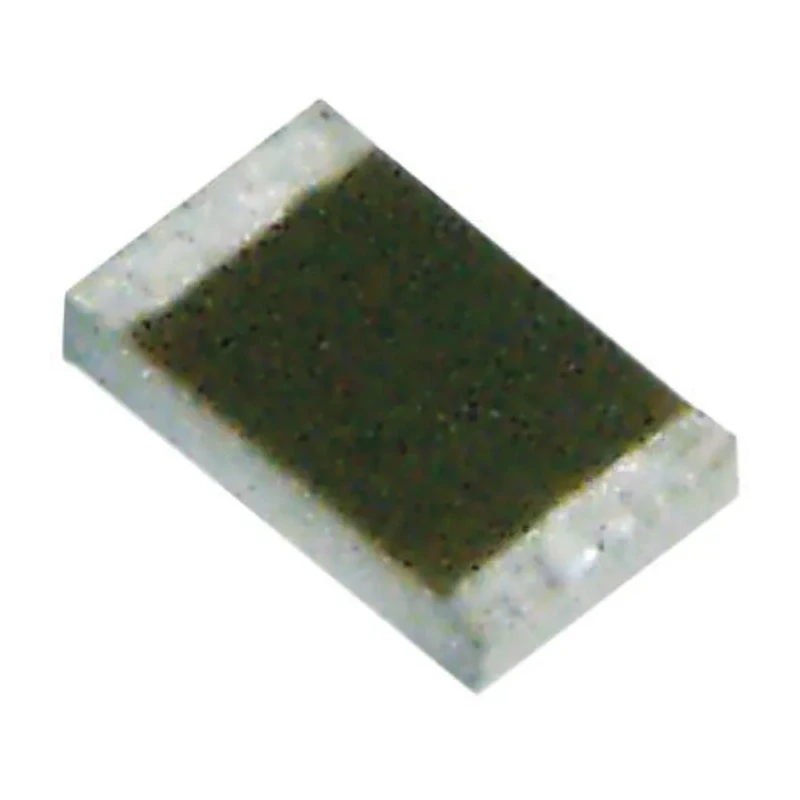

TE Connectivity 0402 Multilayer Surface Mount Inductor 10 nH ±2% 200 mA Idc 4.5 GHz SRF 36401E10NGTDF

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 0402 Multilayer Surface Mount Inductor 10 nH ±2% 200 mA Idc 4.5 GHz SRF 36401E10NGTDF

Name: TE Connectivity 0402 Multilayer Surface Mount Inductor 10 nH ±2% 200 mA Idc 4.5 GHz SRF 36401E10NGTDF
Brand: TE Connectivity
SKU: 127259



Category Inductors Brand TE Connectivity Condition New

Specifications

Country of Origin	Taiwan
Brand	TE Connectivity
Height	0.32mm
Length	1mm
Model	36401E10NGTDF
Depth	0.5mm
Packaging	Tape & Reel
Series	3640
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Inductance	10nH
Standards/Approvals	RoHS
Package/Case	0402
Maximum DC Current	200mA
Maximum DC Resistance	1.35Ω
Inductance Tolerance	±2 %
Termination Style	Solder
Maximum Self Resonant Frequency	4.5GHz
Minimum Quality Factor	13
Inductor Construction	Multilayer
Small size 02	01

Key Features

Compact 0402 package size enables efficient PCB integration.
Multilayer construction ensures stable inductance and reliability.
Maximum self-resonant frequency is 4.5 GHz for high-frequency circuits.
Rated maximum DC resistance is 1.35 ohms for minimal losses.
Operating temperature range from -40°C to 85°C supports diverse environments.
Termination style is solder for standard surface mount assembly.
RoHS compliant and moulded for durability and environmental safety.
Quality factor minimum of 13 enhances performance in RF applications.

Product Description

TE Connectivity model 36401E10NGTDF is a high-performance 0402 multilayer surface mount inductor designed for compact and high-frequency electronic applications. Featuring a low inductance value of 10 nH with a tight tolerance of ±2%, this component is suitable for precision circuits where stability and accuracy are critical.

The inductor supports a maximum DC current of 200 mA and has a maximum DC resistance of 1.35 ohms, ensuring efficient current flow with minimal power loss. It operates reliably within a temperature range of -40°C to 85°C, making it suitable for demanding industrial, telecommunications, and consumer electronics environments.

The compact 0402 package measures 1 mm in length, 0.32 mm in height, and 0.5 mm in depth, providing space-saving benefits on dense printed circuit boards. The solder termination style allows for standard automated surface mount technology (SMT) assembly processes, enhancing manufacturing efficiency.

With a maximum self-resonant frequency of 4.5 GHz and a minimum quality factor of 13, this inductor is optimized for radio frequency (RF) and high-speed communication circuits. Its multilayer construction and moulded design contribute to its durability and consistent electrical performance.

TE Connectivity’s 3640 series inductors, including this model 36401E10NGTDF, are compliant with RoHS environmental standards, supporting green manufacturing initiatives. Compact 0402 package suitable for dense PCB layouts.

Multilayer ceramic construction for electrical stability. Low inductance value with ±2% tolerance for precision. Maximum DC current rating of 200 mA for moderate power circuits. High self-resonant frequency and quality factor for RF use.

Operating temperature range from -40°C to 85°C for versatile environments. Solder termination style simplifies assembly processes. RoHS compliant and moulded for reliability. Manufactured in Taiwan, Province Of China.

This inductor is ideal for use in communications equipment, industrial electronics, and other applications requiring compact, high-frequency passive components. Explore additional TE Connectivity multilayer surface mount Inductors and related components in the EnvMart catalog to meet your design and manufacturing needs.
