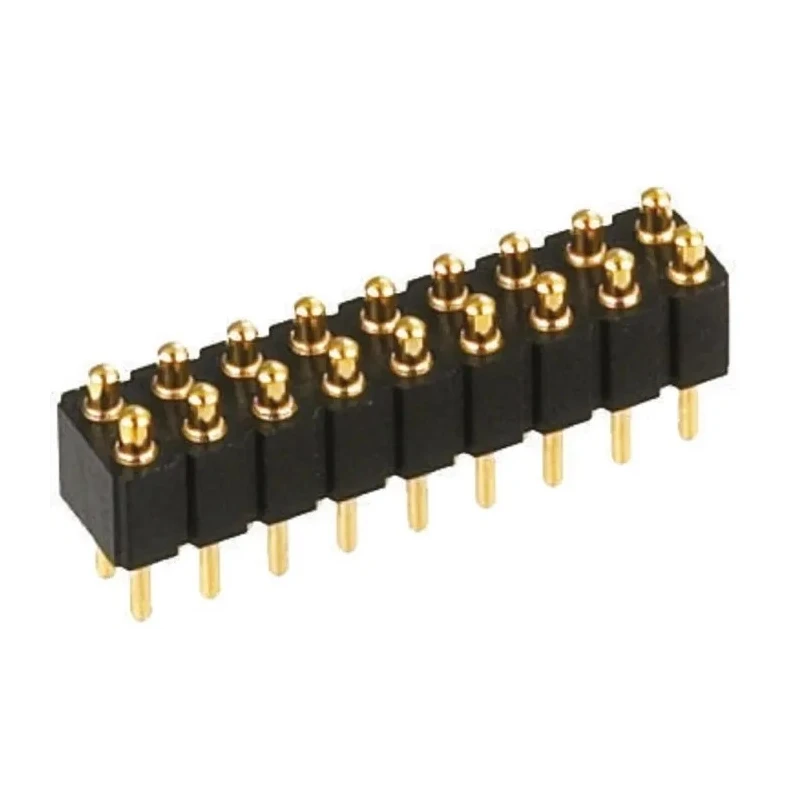

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector, 14 Contacts, 2.54 mm Pitch, 2 Row 813-S1-014-10-015101

Preci-Dip 813-S1-014-10-015101 is a series 813 straight through hole spring loaded connector designed for high reliability electronic interconnections. It comprises 14 spring-loaded contacts arranged over 2 rows with a 2.54 mm pitch and a shrouded male contact gender. The connector uses a fiberglass reinforced polyethylene terephthalate housing that ensures long-lasting durability while withstanding industrial conditions.

The gold-plated brass contacts provide excellent electrical conductivity by maintaining low and stable resistance values with no micro-discontinuities, even under vibration or movement. Operating temperature ranges from -55°C up to 125°C, allowing use in various harsh environments.

This connector supports a maximum operating voltage of 150V and 3.5A current, suited for power and signal transmission in electronic and industrial applications. The connectors mount through-hole on PCB boards with a plunger stroke length of 1.4 mm and plastic body height of 4 mm for precise and secure contact engagements. These features make it an excellent alternative to conventional connection methods, ensuring extended service life and reliability.

Applications of this connector include industrial machinery, laboratory equipment, manufacturing electronics, and other scenarios requiring high-performance PCB connections. The shrouded design offers additional protection to the contacts, minimizing environmental exposure and mechanical stress.

Spring-loaded contacts deliver consistent and stable electrical connections. Shrouded, straight orientation enhances contact security and device protection. Robust housing material withstands high temperatures and mechanical wear.

High-quality gold plating ensures corrosion resistance and conductivity. Through-hole mount type provides stable PCB integration. Wide operating temperature range suits industrial, commercial, and laboratory use. Compact 2-row 14-contact arrangement fits dense PCB designs.

This Preci-Dip spring loaded connector is made in Switzerland, highlighting precision manufacturing quality standards. For compatible SMT DIL Pad connectors as counterparts, see stock number 702-0420. This connector is ideal for use across many electronics components and power connector applications where reliable, low-resistance electrical connections are critical.
