Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector 4 Contact 2.54 mm Pitch 2 Row 813-S1-004-10-014101

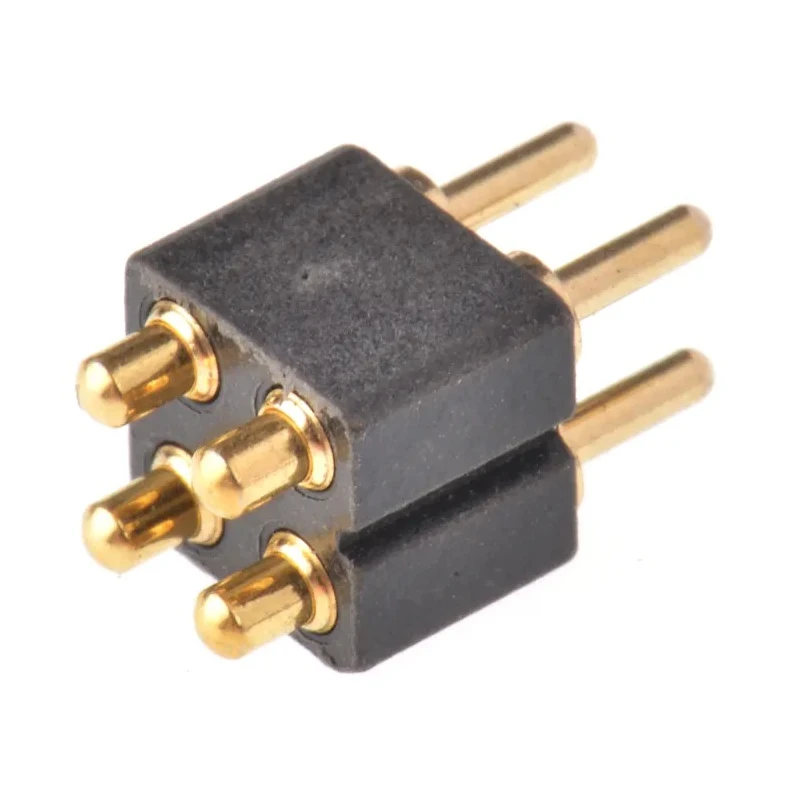

Preci-Dip presents the 813 Series Straight Through Hole Spring Loaded Connector, model 813-S1-004-10-014101, engineered for high reliability in electronic assemblies. This connector has 4 spring-loaded contacts arranged in 2 rows with a 2.54 mm pitch to facilitate stable PCB connections. The assembly is shrouded and mounted through-hole with solder termination providing excellent mechanical retention.

The contacts are made of brass and plated with gold, which assures low electrical resistance and excellent corrosion resistance. The housing uses fibreglass reinforced polyethylene terephthalate, offering mechanical strength and durability under harsh conditions. Operating temperature ranges from -55°C to 125°C, enabling performance in diverse industrial environments.

Rated for 3.5 A current and 150 V voltage, this connector supports reliable signal and power transmission in various applications including industrial automation, electronic test equipment, instrumentation, and telecommunications. The spring-loaded contact mechanism guarantees stable electrical contact even under vibration or movement.

With a plastic body height of approximately 4 mm and a plunger stroke length of 1.4 mm, the connector height dimension corresponds to the initial height of the spring-loaded contacts. Its shrouded design enhances the protection of contacts and alignment during assembly.

This product does not hold specific approvals or standards but is manufactured in Switzerland with high quality materials. It represents an efficient alternative to conventional non-spring-loaded solutions by reducing micro-discontinuities and maintaining consistent connection resistance.

Brass contacts with gold plating for stable conductivity. Fibreglass reinforced polyethylene terephthalate housing for durability. Operating temperature from -55°C to 125°C ensures wide application range. Straight orientation with through hole mounting and solder termination.

4 contacts arranged in 2 rows with 2.54 mm pitch for compact design. Shrouded construction for mechanical stability and protection. Suitable for industrial, manufacturing, laboratory, and commercial PCB interconnect uses.
