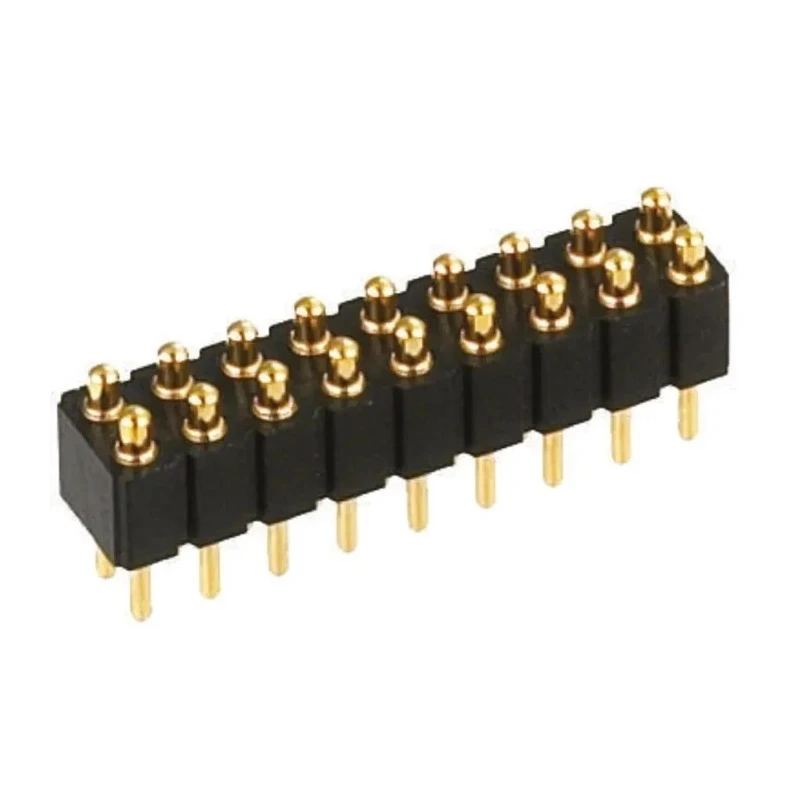

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector, 18 Contacts, 2.54 mm Pitch, 2 Row 813-S1-018-10-014101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3.5A |
| Model | 813-S1-018-10-014101 |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 813 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features straight through hole mounting for strong mechanical attachment.
- Constructed using fibreglass reinforced polyethylene terephthalate housing material.
- Gold plated brass contacts ensure excellent conductivity and corrosion resistance.
- Designed for operation from -55°C up to 125°C temperature range.
- Termination type is solder, suitable for robust PCB soldering processes.
- Supports a maximum current rating of 3.5A and voltage of 150V.
- Packaged in a shrouded configuration to prevent accidental contact.
- Ideal for electronic components requiring durable, low resistance connections.
Product Description
Preci-Dip 813-S1-018-10-014101 is a spring loaded connector designed for electronic PCB applications, featuring 18 gold plated brass contacts arranged in two rows with 2.54 mm pitch. Its shrouded body made from fibreglass reinforced polyethylene terephthalate offers excellent durability and insulation.
The connector mounts through hole style, providing stable mechanical fixation on printed circuit boards. With an operating temperature range between -55°C and 125°C, it supports demanding industrial environments including manufacturing and electrical equipment assembly.
Its spring-loaded contacts ensure a stable, low resistance electrical connection, making it suitable for applications requiring reliable signal and power transfer at currents up to 3.5A and voltages up to 150V.
The solder termination facilitates strong solder joints for enhanced durability during vibrations or mechanical stress. The shrouded design safeguards against accidental shorts and material damage.
Straight through hole mounting for increased stability. Robust fibreglass reinforced PET housing ensuring insulation and strength. Gold plated brass contacts provide excellent conductivity and corrosion resistance. Wide temperature tolerance from -55°C to 125°C for industrial use.
Solder termination compatible with standard PCB soldering processes. 18 contacts arranged in 2 rows with 2.54 mm pitch spacing. Shrouded design enhances safety and durability. Manufactured in Switzerland ensuring premium quality standards.
This connector series is ideal for industrial, laboratory, and manufacturing PCB applications requiring precision and reliability. It offers a reliable alternative to conventional connection methods through its spring-loaded contacts which maintain stable connections under vibration or movement.
Browse the Electronic Components and PCB Connectors categories on EnvMart for compatible products and complementary accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3.5A.
This connector supports a maximum voltage of 150V.
It operates within a temperature range of -55°C to 125°C.
The connector features 18 contacts arranged in 2 rows.
It utilizes a solder termination type, suitable for robust PCB soldering processes.
The housing is constructed from fibreglass reinforced polyethylene terephthalate.
This model is designed with a shrouded configuration to prevent accidental contact.
The pitch size of the contacts is 2.54 mm.
It is manufactured in Switzerland.
The contacts are made of gold plated brass, ensuring excellent conductivity and corrosion resistance.
This connector features straight through hole mounting for stable mechanical fixation on PCBs.
It is ideal for industrial, laboratory, and manufacturing PCB applications requiring reliable signal and power transfer.
